Phoenix Contact 3210512 PT 2.5-3PV Series Multi Level Terminal Block Grey, 0.14mm², 4 mm², 3-Level, Push-in, ATEX
- RS Stock No.:
- 687-9619
- Distrelec Article No.:
- 304-43-834
- Mfr. Part No.:
- 3210512
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£30.60
(exc. VAT)
£36.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 830 unit(s) ready to ship
- Plus 180 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £6.12 | £30.60 |
*price indicative
- RS Stock No.:
- 687-9619
- Distrelec Article No.:
- 304-43-834
- Mfr. Part No.:
- 3210512
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Multi Level Terminal Block | |
| Colour | Grey | |
| Sub Type | Multi-Level | |
| Number of Levels | 3 | |
| Voltage | 500V | |
| Series | PT 2.5-3PV | |
| Cable CSA | 0.14, 4mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Minimum Operating Temperature | -60°C | |
| Terminal Block Current | 20A | |
| Termination Type | Push-in | |
| Hazardous Area Certification | ATEX | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CSA, cUL, cULus, EAC, UL | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Multi Level Terminal Block | ||
Colour Grey | ||
Sub Type Multi-Level | ||
Number of Levels 3 | ||
Voltage 500V | ||
Series PT 2.5-3PV | ||
Cable CSA 0.14, 4mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Minimum Operating Temperature -60°C | ||
Terminal Block Current 20A | ||
Termination Type Push-in | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CSA, cUL, cULus, EAC, UL | ||
- COO (Country of Origin):
- PL

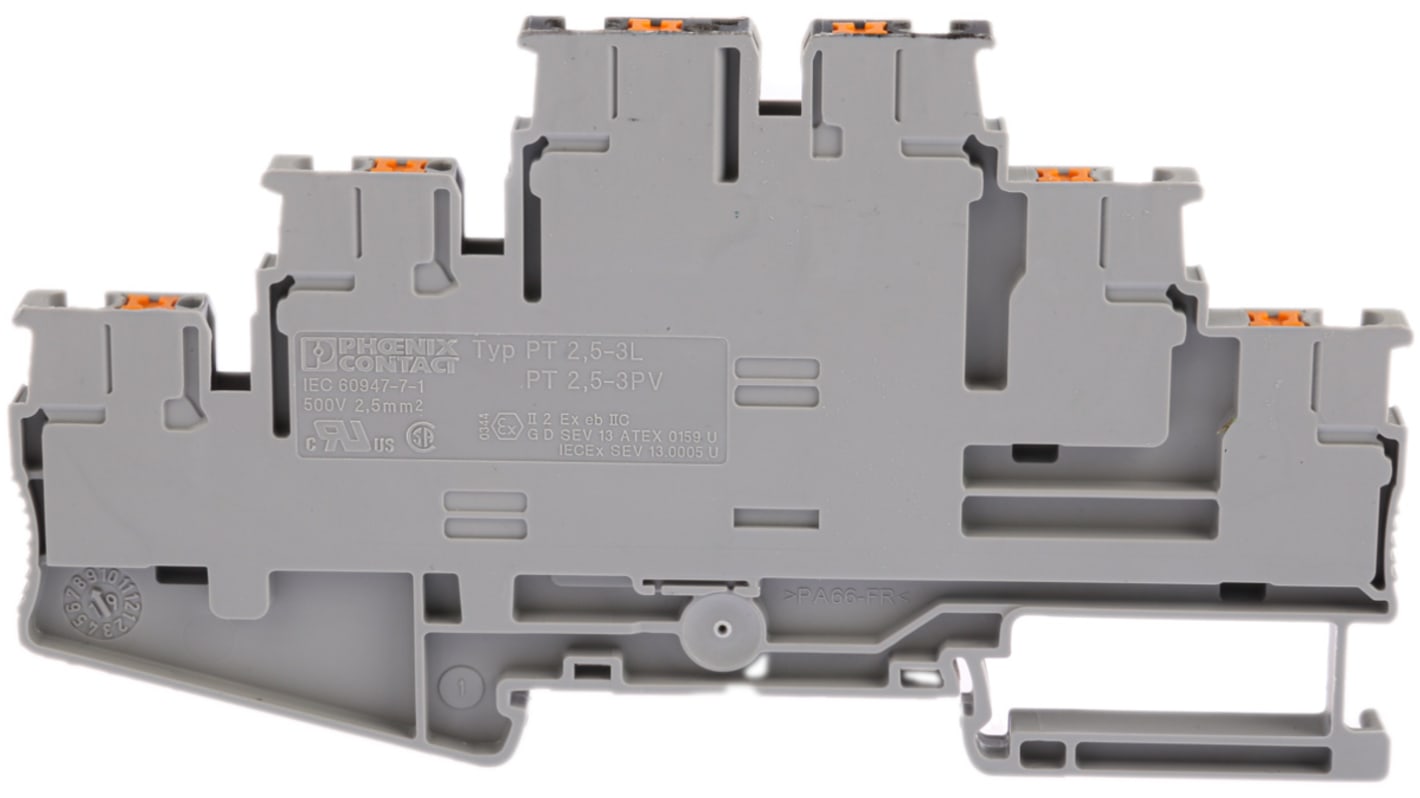

Phoenix Contact Multi-Level Terminal Block, 20A Current Rating, 8kV Surge Voltage Rating - PT 2,5-3PV - 3210512
Maintain a steady link between wires and your DIN rail with this multi-level terminal block from Phoenix Contact. A three-tier construction houses six contacts, giving you control over multiple circuits and reducing your wiring needs. It offers double protection against electric shocks as it features PA insulation and an equipotential bonder to shield you from hazards. The versatile unit accommodates rigid cables with cross sections ranging between 26 and 12AWG.
An open side panel means you can make easy connections with other terminal blocks, without having to disassemble your system. As it consumes just 0.77W of power, this device is an energy-efficient choice. Thanks to a rated surge voltage of 6kV, you can rest assured that sudden voltage spikes won't get the best of your equipment. Use it in automotive engineering and signalling systems.
Features & Benefits
• Current rating of 17A for use with heavy-duty applications
• Push-in termination makes installation simple, with no tools needed
• Comes in a pack of 5 to keep you stocked up
• Conforms to RoHS standards as it contains only minimal amounts of any harmful materials like lead or mercury
• Front-facing connection helps you make the most of available space
