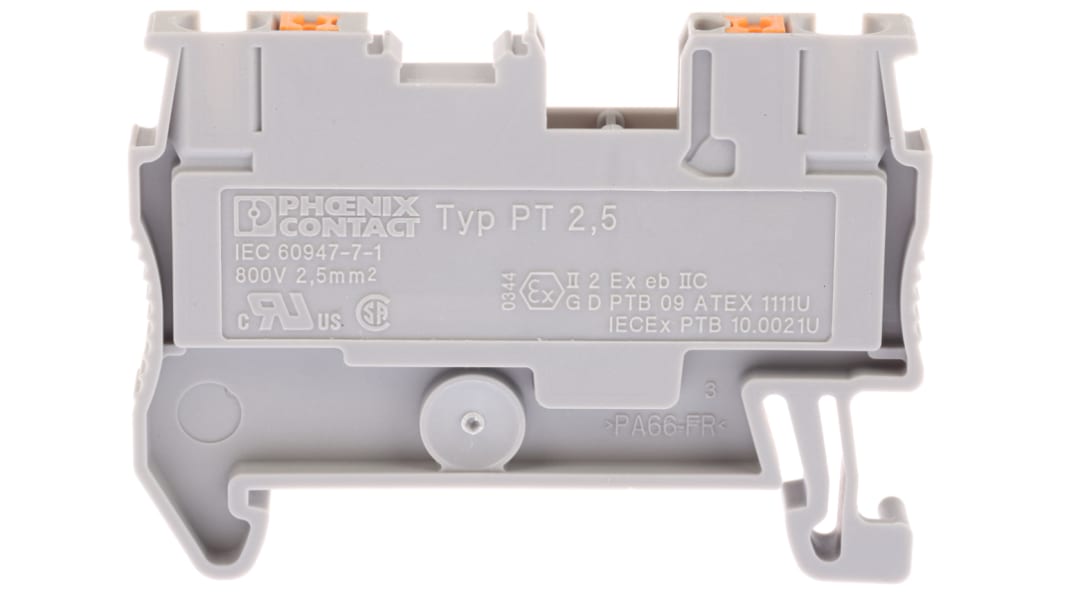

    Phoenix Contact Grey PT 2.5 Feed Through Terminal Block, Single level, 0.14 → 4mm², 800 V

    RS Stock No.:
    687-9414
    Mfr. Part No.:
    3209510
    Brand:
    Phoenix Contact
    Phoenix Contact
    View all DIN Rail Terminal Blocks
    10620 In stock - FREE next working day delivery available
    8110 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each (In a Pack of 10)

    £0.712

    (exc. VAT)

    £0.854

    (inc. VAT)

    UnitsPer unitPer Pack*
    10 - 50£0.712£7.12
    60 - 110£0.677£6.77
    120 +£0.648£6.48
    *price indicative
    RS Stock No.:
    687-9414
    Mfr. Part No.:
    3209510
    Brand:
    Phoenix Contact
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks


    The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.


    PT Series - Features and Benefits


    • Can be bridged together easily with multi-conductor and function terminals
    • Single, Double and triple levels available
    • 50 % less insertion force
    • Direct plugging from 0.34 mm²
    • Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
    • Actuation button can be operated with any kind of screwdriver
    • Compact design and front connection facilitate wiring in the smallest of spaces
    • Double bridge shaft for an individual power distribution and supply


    PT 2.5 – 3209510


    A grey, push-in connection, feed through terminal block from Phoenix Contact that is part of the PT CLIPLINE series.
    The DIN rail mounting terminal block has front connection that enables you to wire in any confined space.


    3209510 – Features


    Current 24 A
    Push in connection
    Number of connections – 2
    Number of positions – 1
    Number of levels – 1 (Single level)
    Nominal cross section – 2.5mm²
    Width – 5.2mm
    Height – 35.3mm
    Length – 48.6mm
    Cross section: 0.14mm² - 4mm²
    Flammability rating according to UL 94


    Typical Applications


    The PT 2.5 can be used in machine building, plant engineering and railway and process industries.



    Push-In Connection Terminal Blocks


    The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.


    Specifications

    AttributeValue
    ColourGrey
    Number of LevelsSingle
    American Wire Gauge26 → 12AWG
    SeriesPT 2.5
    Termination MethodPush In
    Cable CSA0.14 → 4mm²
    Voltage Rating800 V
    Current Rating24A
    Minimum Operating Temperature-60°C
    Maximum Operating Temperature+105°C
    Model NumberPT 2,5
