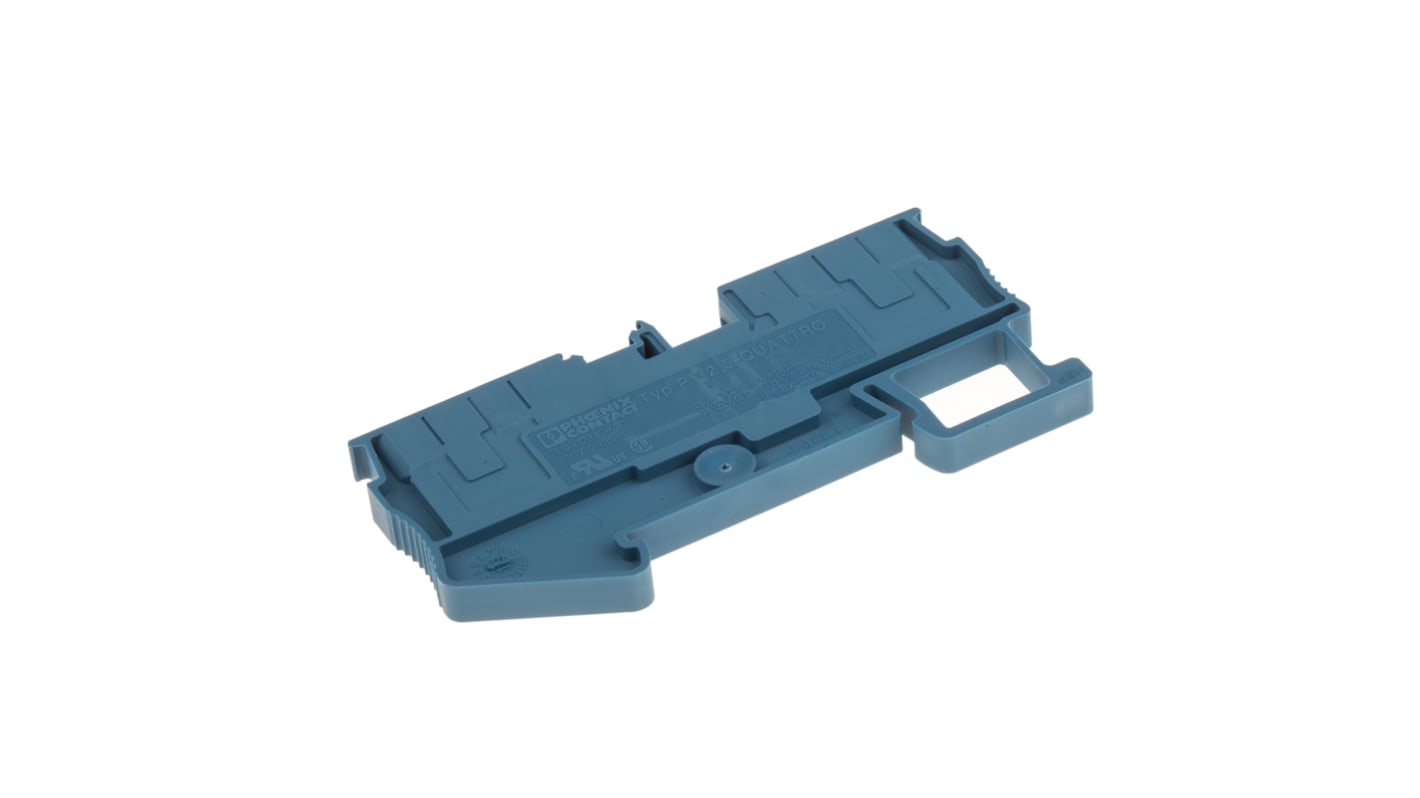

Phoenix Contact PT 2.5-QUATTRO BU Series Blue Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Push In
- RS Stock No.:
- 687-9439
- Mfr. Part No.:
- 3209581
- Brand:
- Phoenix Contact
30 In stock - FREE next working day delivery available
540 available from Europe for delivery within 2 working day(s).
Added
Price Each (In a Pack of 10)
£1.386
(exc. VAT)
£1.663
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £1.386 | £13.86 |
60 - 110 | £1.317 | £13.17 |
120 + | £1.261 | £12.61 |
*price indicative |
- RS Stock No.:
- 687-9439
- Mfr. Part No.:
- 3209581
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks
The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
PT Series - Features and Benefits
• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply
Phoenix Contact Feed-Through Terminal Block, 800V Maximum Voltage, 26 to 12AWG - PT 2.5-QUATTRO BU - 3209581
This feed-through terminal block from Phoenix Contact lets you safely and easily connect up to four conductors in a circuit. Its suitable for heavy industrial applications such as the railway industry, plant engineering and machine building. With a maximum voltage rating of 800V and a maximum current rating of 24A, this product is ideal for use with high-powered equipment. Its also ATEX certified, so its safe for use in environments with potentially explosive atmospheres.
This hard-wearing terminal block is housed in abrasion-resistant and corrosion-resistant thermoplastic. Its flame-retardant polyamide insulator offers a high level of protection against fire and electrical hazards. As part of the PT series, this product uses Phoenixs innovative CLIPLINE complete system. As a result, it can easily be bridged together with multi-conductor and function terminals for a customised terminal block system that meets your needs.
This hard-wearing terminal block is housed in abrasion-resistant and corrosion-resistant thermoplastic. Its flame-retardant polyamide insulator offers a high level of protection against fire and electrical hazards. As part of the PT series, this product uses Phoenixs innovative CLIPLINE complete system. As a result, it can easily be bridged together with multi-conductor and function terminals for a customised terminal block system that meets your needs.
• Wire gauge of 26 to 12AWG (0.14 to 1.55mm² CSA) makes this a versatile choice
• Push-in connection method uses 50% less insertion force, for ease of installation and reduced wear and tear on conductors
• Front connection means wiring is hassle-free, even in confined spaces
• Push-in connection method uses 50% less insertion force, for ease of installation and reduced wear and tear on conductors
• Front connection means wiring is hassle-free, even in confined spaces
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Blue |
Number of Levels | Single |
American Wire Gauge | 26 → 12AWG |
Series | PT 2.5-QUATTRO BU |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Current Rating | 24A |
Voltage Rating | 800 V |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +105°C |
Hazardous Area Certification | ATEX |
Model Number | PT 2,5-QUATTRO BU |
- RS Stock No.:
- 687-9439
- Mfr. Part No.:
- 3209581
- Brand:
- Phoenix Contact
