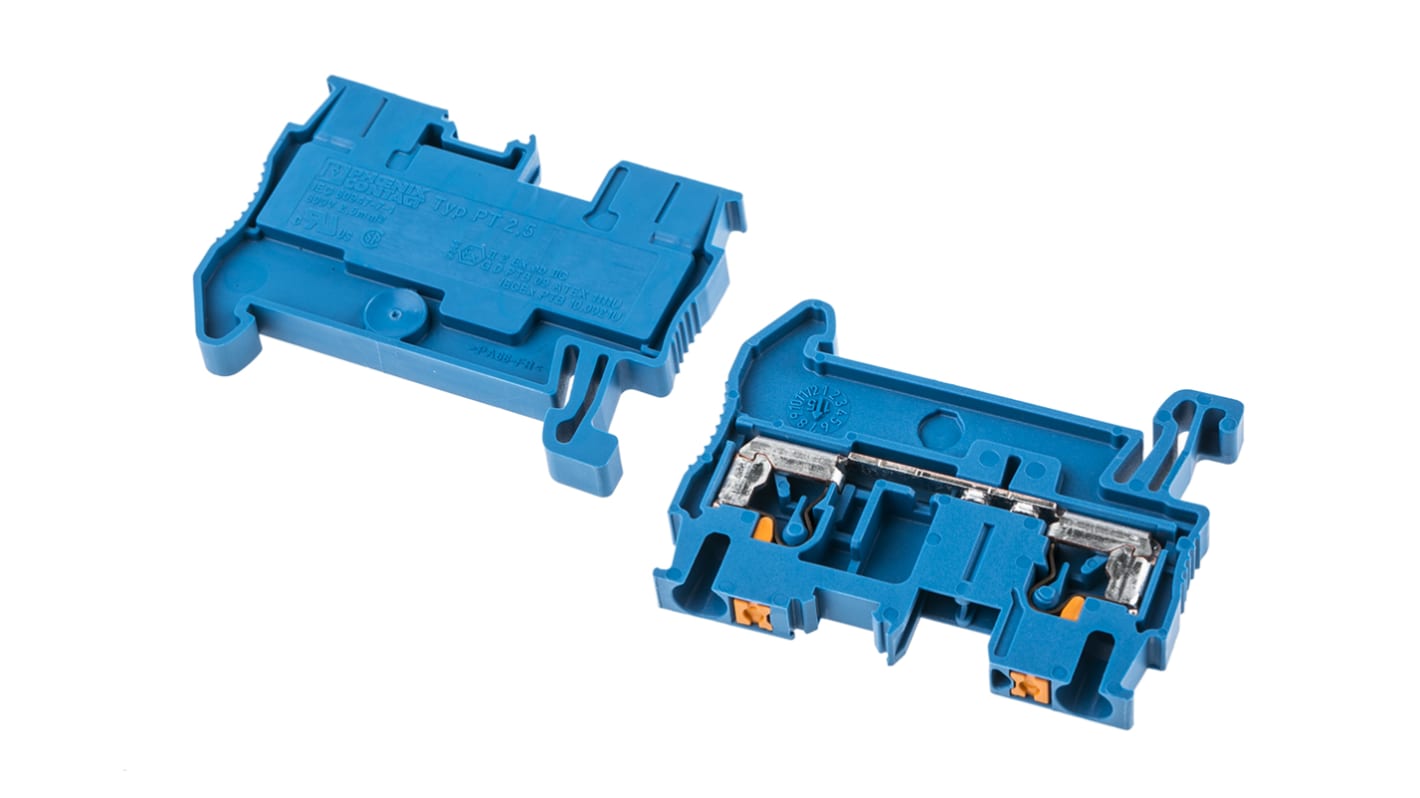

    Phoenix Contact Blue PT 2.5 BU Feed Through Terminal Block, Single level, 0.14 → 4mm², 800 V

    RS Stock No.:
    687-9417
    Mfr. Part No.:
    3209523
    Brand:
    Phoenix Contact
    Phoenix Contact
    View all DIN Rail Terminal Blocks
    5040 In stock - FREE next working day delivery available
    560 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each (In a Pack of 10)

    £0.712

    (exc. VAT)

    £0.854

    (inc. VAT)

    UnitsPer unitPer Pack*
    10 - 50£0.712£7.12
    60 - 110£0.677£6.77
    120 +£0.648£6.48
    *price indicative
    RS Stock No.:
    687-9417
    Mfr. Part No.:
    3209523
    Brand:
    Phoenix Contact
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks


    The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.


    PT Series - Features and Benefits


    • Can be bridged together easily with multi-conductor and function terminals
    • Single, Double and triple levels available
    • 50 % less insertion force
    • Direct plugging from 0.34 mm²
    • Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
    • Actuation button can be operated with any kind of screwdriver
    • Compact design and front connection facilitate wiring in the smallest of spaces
    • Double bridge shaft for an individual power distribution and supply


    Phoenix Contact Feed-Through Terminal Block, 26 to 12AWG, 800V Voltage Rating - PT 2.5 BU - 3209523


    Need to connect two wires together? This PT series feed-through terminal block from Phoenix Contact allows you to do that quickly and easily using its push-in connection method. You simply push wires of 0.34mm² and upwards into place and, as minimal insertion force is needed, there's little chance of wire damage. To insert smaller wires or to disconnect wires of all sizes, simply press the actuation button using a screwdriver of any type.
    The unit is built to a compact design and connects at the front to enable wiring in a confined space. The dual-function shaft includes a testing feature and there's an additional test connection so you can make sure all your components are functioning correctly. This block has been tested and approved for use in railway applications. It's also suitable for plant engineering and process industry applications.


    • Polyamide insulating material provides good electrical resistance
    • 8 kV-rated surge voltage means it can withstand a high inrush current
    • Part of Phoenix Contact's CLIPLINE system, it lets you build electrical assemblies with seamless connectivity and efficient use of space



    Push-In Connection Terminal Blocks


    The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.


    Specifications

    AttributeValue
    ColourBlue
    Number of LevelsSingle
    SeriesPT 2.5 BU
    American Wire Gauge26 → 12AWG
    Termination MethodPush In
    Cable CSA0.14 → 4mm²
    Voltage Rating800 V
    Current Rating24A
    Model NumberPT 2,5 BU
