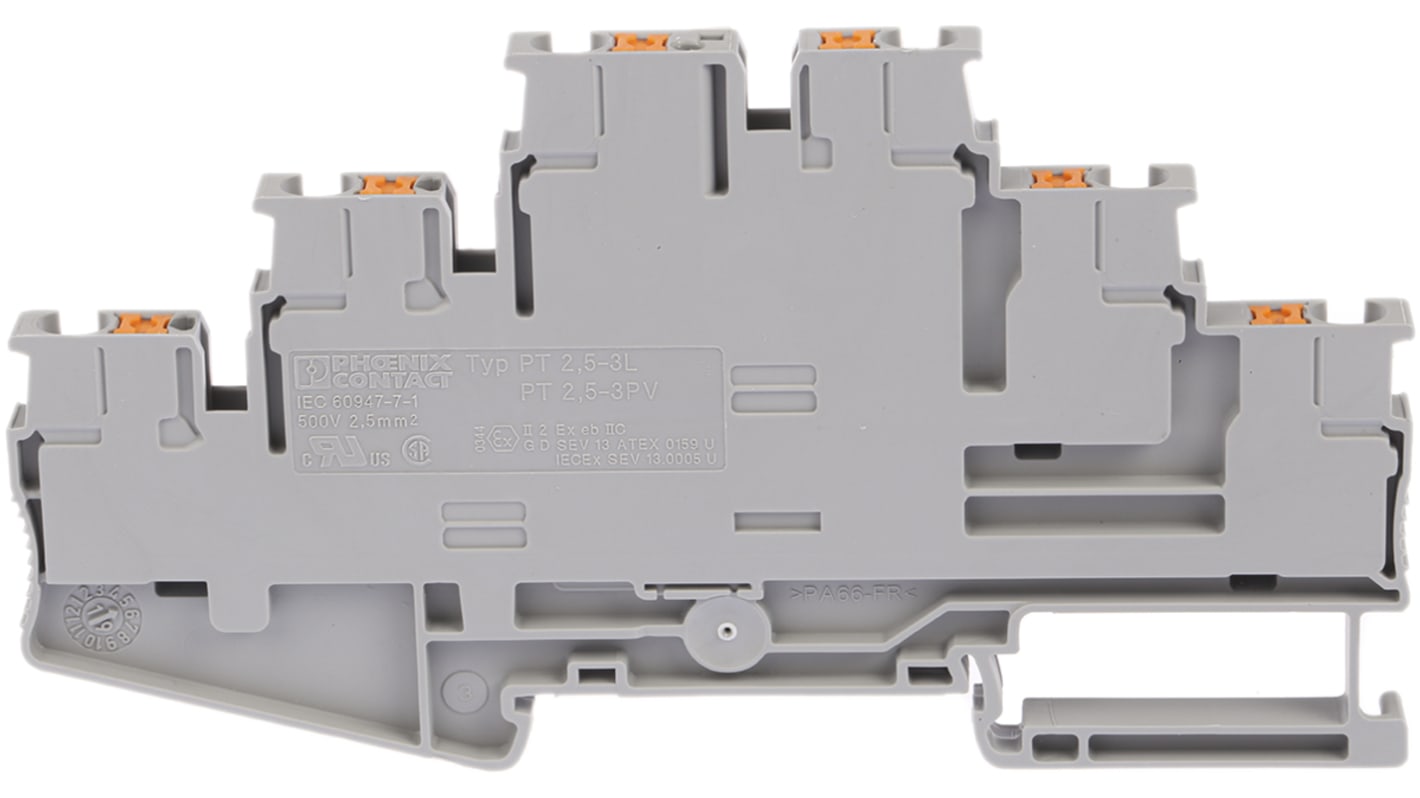

Phoenix Contact PT 2.5-3L Series Grey Multi Level Terminal Block, 0.14 → 4mm², Triple-Level, Push In
- RS Stock No.:
- 687-9607
- Mfr. Part No.:
- 3210499
- Brand:
- Phoenix Contact
850 In stock - FREE next working day delivery available
980 available from Europe for delivery within 2 working day(s).
Added
Price Each (In a Pack of 10)
£3.32
(exc. VAT)
£3.98
(inc. VAT)
Units | Per unit | Per Pack* |
10 - 50 | £3.32 | £33.20 |
60 - 110 | £3.227 | £32.27 |
120 + | £3.14 | £31.40 |
*price indicative |
- RS Stock No.:
- 687-9607
- Mfr. Part No.:
- 3210499
- Brand:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Phoenix Contact Multi-Level Terminal Block, Push-In Connection Method, 20A Current Rating - PT 2,5-3L - 3210499
Keen to loop devices into your system? Plug the gaps with this Phoenix Contact multi-level terminal block. As its push-in terminals automatically latch onto conductors, you can put your tools away and speed through set-up.
Navigating the device is simple, as its 6 ports are set across 3 levels to keep your wiring organised. An open side panel means you can get to grips with the connections without dismantling your setup. With support for conductor cross-sections between 0.14 and 4mm², this is a sure fit for widely used conductors.
The block clips onto a DIN rail in a snap, so installation's simple and hassle-free. Its compact body measures 102 (L) x 5.2 (W) x 56.4mm (H) to slip into busy systems without a hitch. Thanks to a robust PA body, there's no risk of electric shocks when handling the part.
Navigating the device is simple, as its 6 ports are set across 3 levels to keep your wiring organised. An open side panel means you can get to grips with the connections without dismantling your setup. With support for conductor cross-sections between 0.14 and 4mm², this is a sure fit for widely used conductors.
The block clips onto a DIN rail in a snap, so installation's simple and hassle-free. Its compact body measures 102 (L) x 5.2 (W) x 56.4mm (H) to slip into busy systems without a hitch. Thanks to a robust PA body, there's no risk of electric shocks when handling the part.
Features & Benefits
• Handles surge voltages up to 6kV, so it's highly reliable
• Compatible with an optional end plate (687-9629) to shield sensitive elements against dust and moisture
• ATEX-certified design indicates it's safe for use in potentially explosive atmospheres
• Compatible with an optional end plate (687-9629) to shield sensitive elements against dust and moisture
• ATEX-certified design indicates it's safe for use in potentially explosive atmospheres
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Triple |
American Wire Gauge | 26 → 12AWG |
Series | PT 2.5-3L |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Voltage Rating | 500 V |
Current Rating | 20A |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +110°C |
Hazardous Area Certification | ATEX |
Standards Met | ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL |
Model Number | PT 2,5-3L |
- RS Stock No.:
- 687-9607
- Mfr. Part No.:
- 3210499
- Brand:
- Phoenix Contact
