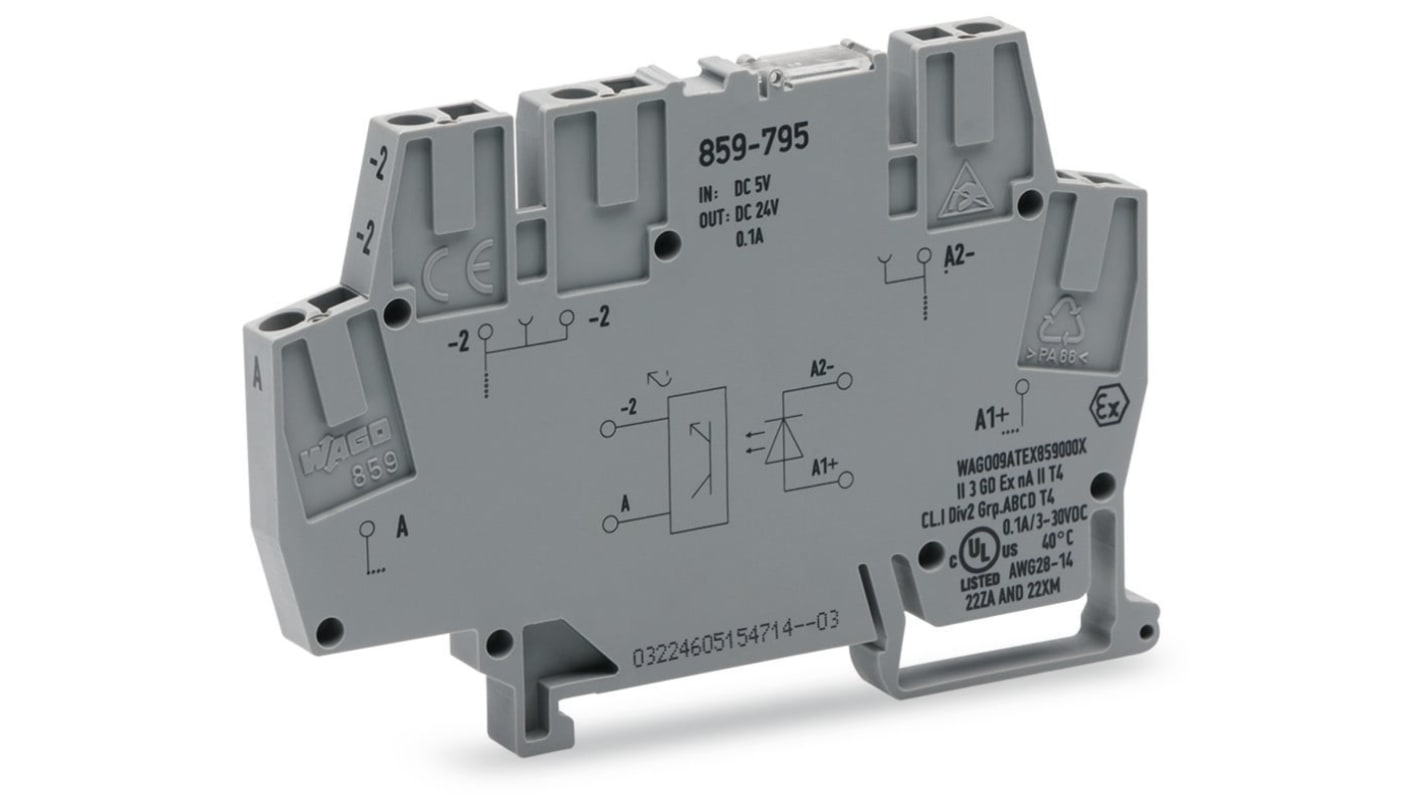

WAGO 859-795 859 Series Grey, 2.5mm², Cage Clamp Termination

House an optical switching element in your electrical system using this optocoupler terminal block from WAGO. It's a two-wire unit that accepts connecting cables from an opto-isolator, enabling the conversion of an electrical signal to an optical one. This keeps the connected circuits electrically isolated to help prevent voltage spikes and EMI. The unit teams up with wires that range in size from 28 to 14AWG, so you have free rein when linking different cables.

• Integrated red LED indicator for convenient status monitoring
• Cage clamp termination method gives a secure hold on cables
• DIN rail mounting enables hassle-free installation

• Textile manufacturing
• Renewable energy
• Medical devices
• Motor control systems

This terminal block has a quick turn-on time of ≤10μs and a turn-off time of ≤50μs, giving you speedy switching.

When mounting this terminal block, you can set it in a horizontal position or a vertical position for flexibility in your assembly.
