WAGO 2201-1207 TOPJOB S Series Earth Terminal Block Green, Yellow, 1.5mm², 1-Level, Push-in, IECEx/ATEX/CSA
- RS Stock No.:
- 278-8407
- Distrelec Article No.:
- 304-42-164
- Mfr. Part No.:
- 2201-1207
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£267.65
(exc. VAT)
£321.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) shipping from 03 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £267.65 | £2.677 |
*price indicative
- RS Stock No.:
- 278-8407
- Distrelec Article No.:
- 304-42-164
- Mfr. Part No.:
- 2201-1207
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Earth Terminal Block | |
| Colour | Green, Yellow | |
| Number of Levels | 1 | |
| Number of Positions | 2 | |
| Series | TOPJOB S | |
| Minimum Wire Size AWG | 22AWG | |
| Cable CSA | 1.5mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX/CSA | |
| Standards/Approvals | C22.2, EN60947, UL1059 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Earth Terminal Block | ||
Colour Green, Yellow | ||
Number of Levels 1 | ||
Number of Positions 2 | ||
Series TOPJOB S | ||
Minimum Wire Size AWG 22AWG | ||
Cable CSA 1.5mm² | ||
Maximum Wire Size AWG 16AWG | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX/CSA | ||
Standards/Approvals C22.2, EN60947, UL1059 | ||
- COO (Country of Origin):
- DE

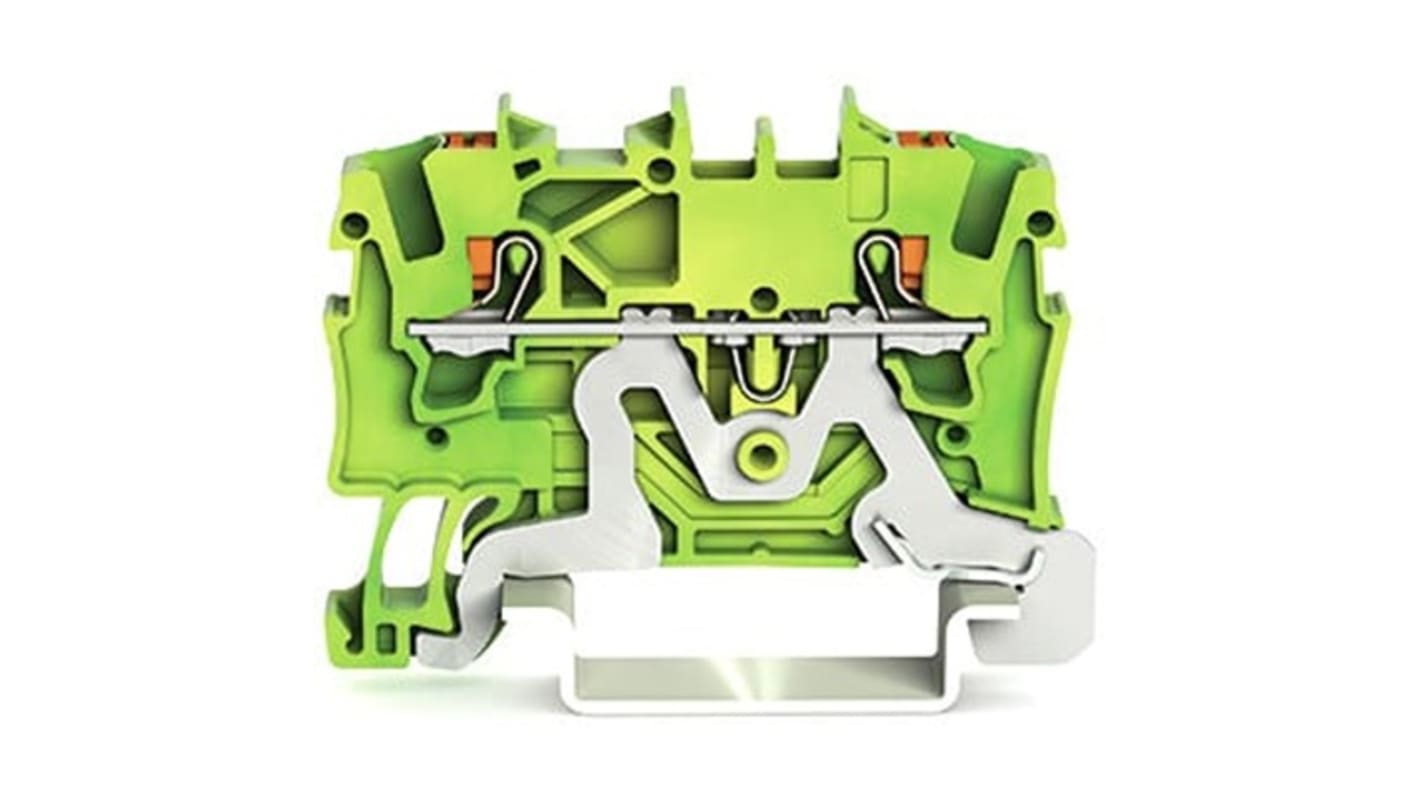

The WAGO Terminal block is a two conductor ground terminal block. It is available in green and yellow colour with push button type actuation. This terminal block has polyamide insulation material with push in cage clamp connection technology.
RoHS compliant
0.099 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
