WAGO 2104-1207 TOPJOB S Series Earth Terminal Block Green, Yellow, 4mm², 1-Level, Push-in, IECEx/ATEX/CSA
- RS Stock No.:
- 278-8368
- Distrelec Article No.:
- 304-34-990
- Mfr. Part No.:
- 2104-1207
- Brand:
- WAGO
Subtotal (1 box of 5 units)*
£20.64
(exc. VAT)
£24.77
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 6 unit(s) shipping from 18 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £20.64 | £4.128 |
*price indicative
- RS Stock No.:
- 278-8368
- Distrelec Article No.:
- 304-34-990
- Mfr. Part No.:
- 2104-1207
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Earth Terminal Block | |
| Colour | Green, Yellow | |
| Number of Levels | 1 | |
| Number of Positions | 2 | |
| Series | TOPJOB S | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Push-in | |
| Maximum Operating Temperature | 105°C | |
| Hazardous Area Certification | IECEx/ATEX/CSA | |
| Standards/Approvals | UL1059, EN60947, C22.2 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Earth Terminal Block | ||
Colour Green, Yellow | ||
Number of Levels 1 | ||
Number of Positions 2 | ||
Series TOPJOB S | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Minimum Operating Temperature -60°C | ||
Termination Type Push-in | ||
Maximum Operating Temperature 105°C | ||
Hazardous Area Certification IECEx/ATEX/CSA | ||
Standards/Approvals UL1059, EN60947, C22.2 | ||
- COO (Country of Origin):
- PL

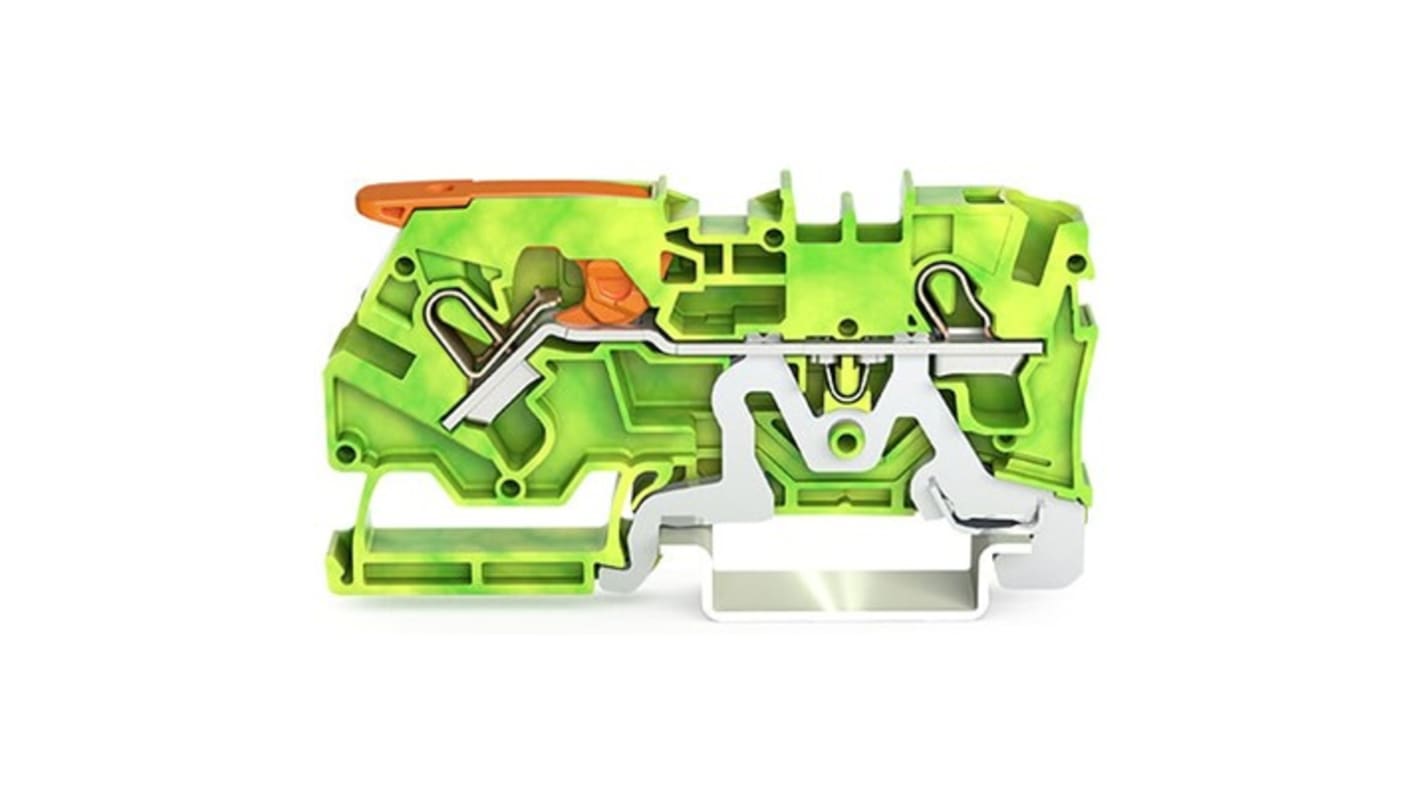

The WAGO Terminal block is a two conductor ground terminal block. It is available in green and yellow colour with lever type actuation. This terminal block has polyamide insulation material with push in cage clamp connection technology.
RoHS compliant
0.2 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
