WAGO 2210-1207 TOPJOB S Series Earth Terminal Block Green, Yellow, 10mm², 1-Level, Push-in, IECEx/ATEX/CSA
- RS Stock No.:
- 278-8460
- Mfr. Part No.:
- 2210-1207
- Brand:
- WAGO
Subtotal (1 box of 5 units)*
£20.30
(exc. VAT)
£24.36
(inc. VAT)
FREE delivery for orders over £60.00
Being discontinued
- Final 2 unit(s), ready to ship
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £20.30 | £4.06 |
*price indicative
- RS Stock No.:
- 278-8460
- Mfr. Part No.:
- 2210-1207
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Colour | Green, Yellow | |
| Product Type | Earth Terminal Block | |
| Number of Positions | 2 | |
| Number of Levels | 1 | |
| Series | TOPJOB S | |
| Minimum Wire Size AWG | 20AWG | |
| Cable CSA | 10mm² | |
| Maximum Wire Size AWG | 8AWG | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Push-in | |
| Hazardous Area Certification | IECEx/ATEX/CSA | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | C22.2, EN60947, UL1059 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Colour Green, Yellow | ||
Product Type Earth Terminal Block | ||
Number of Positions 2 | ||
Number of Levels 1 | ||
Series TOPJOB S | ||
Minimum Wire Size AWG 20AWG | ||
Cable CSA 10mm² | ||
Maximum Wire Size AWG 8AWG | ||
Minimum Operating Temperature -60°C | ||
Termination Type Push-in | ||
Hazardous Area Certification IECEx/ATEX/CSA | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals C22.2, EN60947, UL1059 | ||
- COO (Country of Origin):
- DE

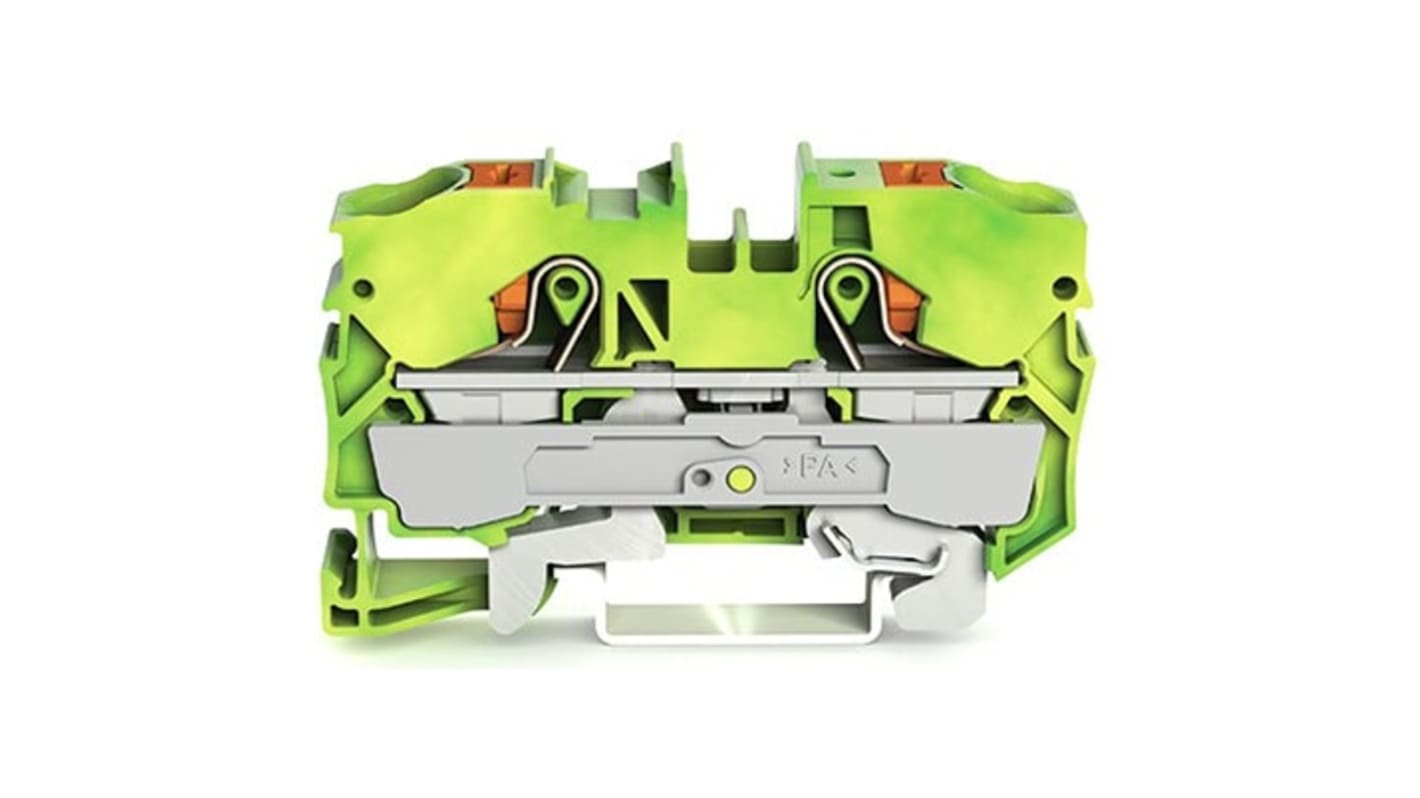

The WAGO Terminal block is a two conductor ground terminal block. It is available in green and yellow colour with push button type actuation. This terminal block has polyamide insulation material with push in cage clamp connection technology.
RoHS compliant
0.422 MJ fire load
DIN 35 rail mounting
V0 flammability class per UL94
