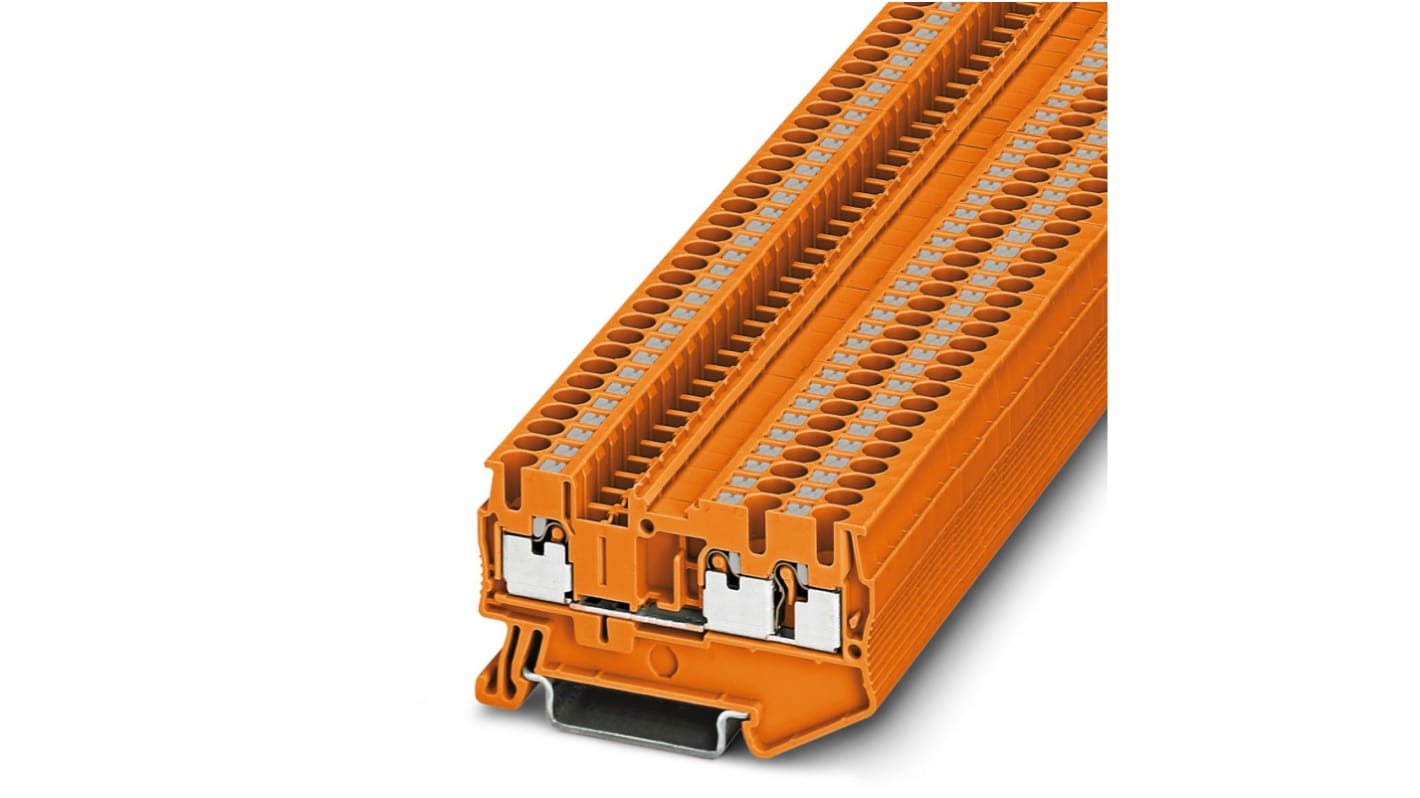

Phoenix Contact 3211210 PT 2.5-TWIN OG Series Feed Through Terminal Block Orange, 4mm², 1-Level, Push-in, IECEx/ATEX
- RS Stock No.:
- 225-2889
- Mfr. Part No.:
- 3211210
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£64.85
(exc. VAT)
£77.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 300 unit(s) ready to ship
- Plus 600 unit(s) shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £1.297 | £64.85 |
*price indicative
- RS Stock No.:
- 225-2889
- Mfr. Part No.:
- 3211210
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Orange | |
| Product Type | Feed Through Terminal Block | |
| Sub Type | Feed Through | |
| Number of Levels | 1 | |
| Series | PT 2.5-TWIN OG | |
| Voltage | 800V | |
| Minimum Wire Size AWG | 12AWG | |
| Cable CSA | 4mm² | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Termination Type | Push-in | |
| Terminal Block Current | 24A | |
| Minimum Operating Temperature | -60°C | |
| Hazardous Area Certification | IECEx/ATEX | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | ABS, ATEX, CSA, cUL Recognised, cULus Recognised, DNV GL, EAC, EAC Ex, IEC 60947-7-1, IECEE CB Scheme, IECEX, LR, RS, UL Recognised, VDE | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Orange | ||
Product Type Feed Through Terminal Block | ||
Sub Type Feed Through | ||
Number of Levels 1 | ||
Series PT 2.5-TWIN OG | ||
Voltage 800V | ||
Minimum Wire Size AWG 12AWG | ||
Cable CSA 4mm² | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Termination Type Push-in | ||
Terminal Block Current 24A | ||
Minimum Operating Temperature -60°C | ||
Hazardous Area Certification IECEx/ATEX | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals ABS, ATEX, CSA, cUL Recognised, cULus Recognised, DNV GL, EAC, EAC Ex, IEC 60947-7-1, IECEE CB Scheme, IECEX, LR, RS, UL Recognised, VDE | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through terminal block works with a nominal voltage of 800V and nominal current of 24A. It has Push in connection method and 3 number of connections.
0.14mm² to 4mm² cross section
26 to 12AWG wire size
-60°C to 85°C ambient operating temperature
