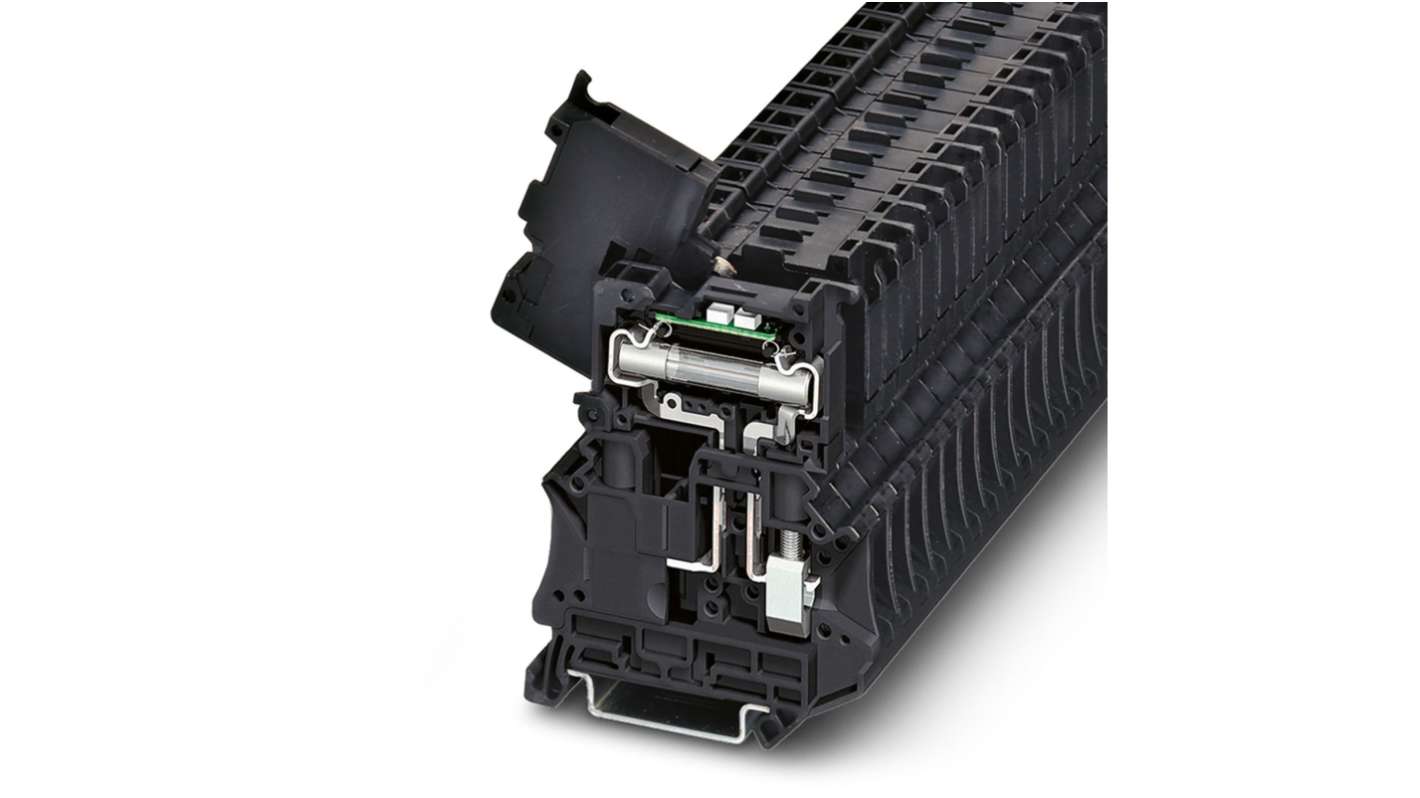

Phoenix Contact 3046430 UT 6 - HESILA Series Fuse Modular Terminal Block Black, 6mm², 1-Level Fused, Screw
- RS Stock No.:
- 216-3827
- Mfr. Part No.:
- 3046430
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£690.55
(exc. VAT)
£828.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £13.811 | £690.55 |
*price indicative
- RS Stock No.:
- 216-3827
- Mfr. Part No.:
- 3046430
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Colour | Black | |
| Product Type | Fuse Modular Terminal Block | |
| Sub Type | Fused | |
| Number of Levels | 1 | |
| Series | UT 6 - HESILA | |
| Voltage | 250V | |
| Cable CSA | 6mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Fused | Yes | |
| Pitch | 8.2mm | |
| Minimum Operating Temperature | -60°C | |
| Termination Type | Screw | |
| Terminal Block Current | 10A | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | UL Recognised, RS, KEMA-KEUR, IECEE CB Scheme, EAC, DNV GL, cULus Recognised, cUL Recognised, CSA | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Colour Black | ||
Product Type Fuse Modular Terminal Block | ||
Sub Type Fused | ||
Number of Levels 1 | ||
Series UT 6 - HESILA | ||
Voltage 250V | ||
Cable CSA 6mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 8AWG | ||
Fused Yes | ||
Pitch 8.2mm | ||
Minimum Operating Temperature -60°C | ||
Termination Type Screw | ||
Terminal Block Current 10A | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification No | ||
Standards/Approvals UL Recognised, RS, KEMA-KEUR, IECEE CB Scheme, EAC, DNV GL, cULus Recognised, cUL Recognised, CSA | ||
- COO (Country of Origin):
- PL
The Phoenix lever type terminal block with voltage rating 250V AC. It has PA as insulating material and black in colour.
Degree of pollution 3
Overvoltage category III
Insulating material group I
