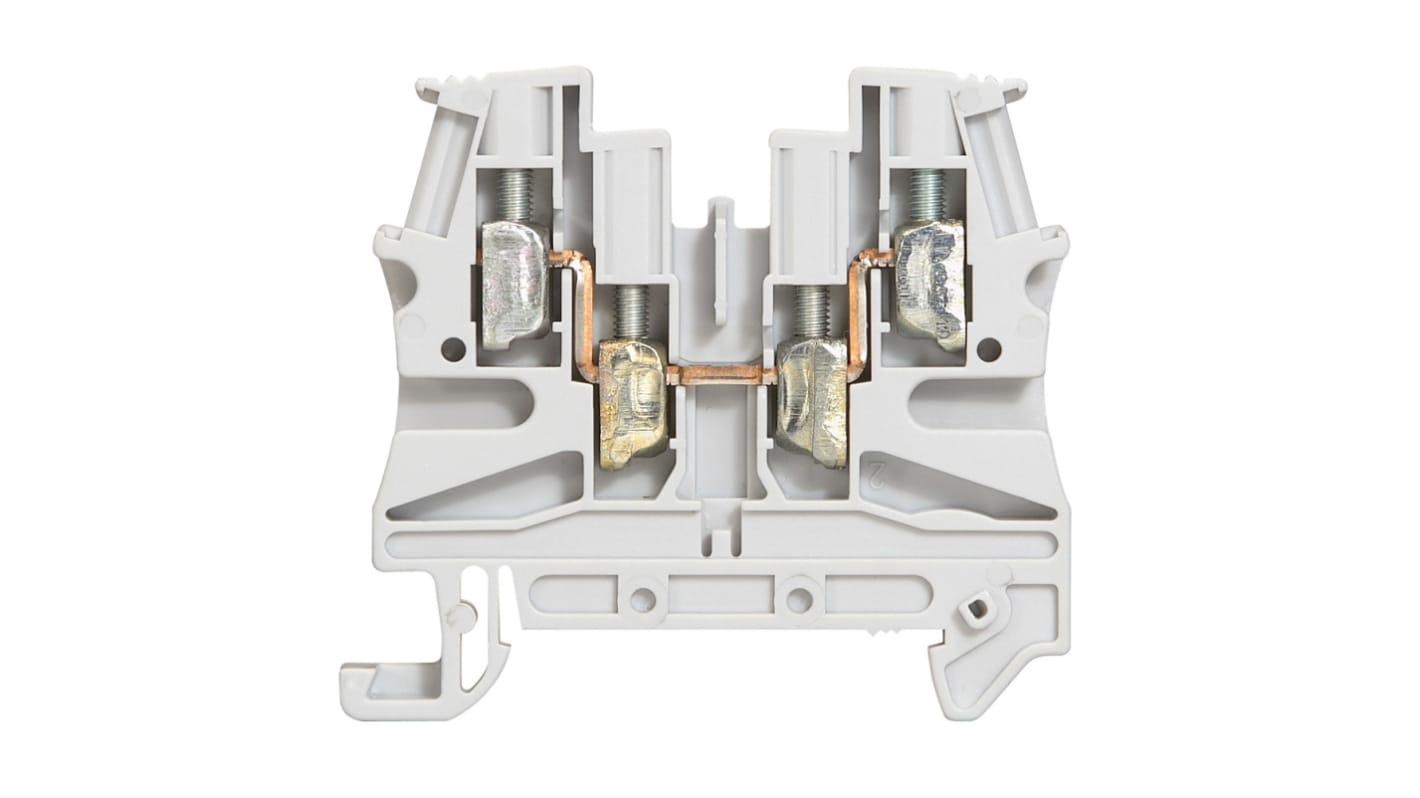

Legrand 0 371 69 Viking Series Grey, 0.25 → 4mm², Single-Level, Screw Termination, ATEX
- RS Stock No.:
- 180-6137
- Mfr. Part No.:
- 0 371 69
- Brand:
- Legrand
Subtotal (1 box of 25 units)*
£150.45
(exc. VAT)
£180.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
---|---|---|
1 + | £150.45 | £6.018 |
*price indicative
- RS Stock No.:
- 180-6137
- Mfr. Part No.:
- 0 371 69
- Brand:
- Legrand
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Legrand | |
Colour | Grey | |
Number of Levels | Single | |
Series | Viking | |
Termination Method | Screw | |
Cable CSA | 0.25 → 4 mm², 0.25 → 6mm² | |
Voltage Rating | 500 V | |
Current Rating | 32A | |
Pitch | 6mm | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +100°C | |
Hazardous Area Certification | ATEX | |
Select all | ||
---|---|---|
Brand Legrand | ||
Colour Grey | ||
Number of Levels Single | ||
Series Viking | ||
Termination Method Screw | ||
Cable CSA 0.25 → 4 mm², 0.25 → 6mm² | ||
Voltage Rating 500 V | ||
Current Rating 32A | ||
Pitch 6mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +100°C | ||
Hazardous Area Certification ATEX | ||
- COO (Country of Origin):
- FR
Grey for standard circuit, blue for neutral conductor, orange for circuit not broken by the master isolating device, red for special circuits (safety, protected, etc), green for protection conductor class II equivalent assemblies
Used to make the electrical connection between 2 flexible copper wires with or without ferrules or 2 rigid copper wires
2 areas for automatic insertion bridging combs up to 8 pitch (upper level only for multi-level blocks)
For rails depth 15 mm, depth 7.5 mm and 15 mm
2 areas for automatic insertion bridging combs up to 8 pitch (upper level only for multi-level blocks)
For rails depth 15 mm, depth 7.5 mm and 15 mm
