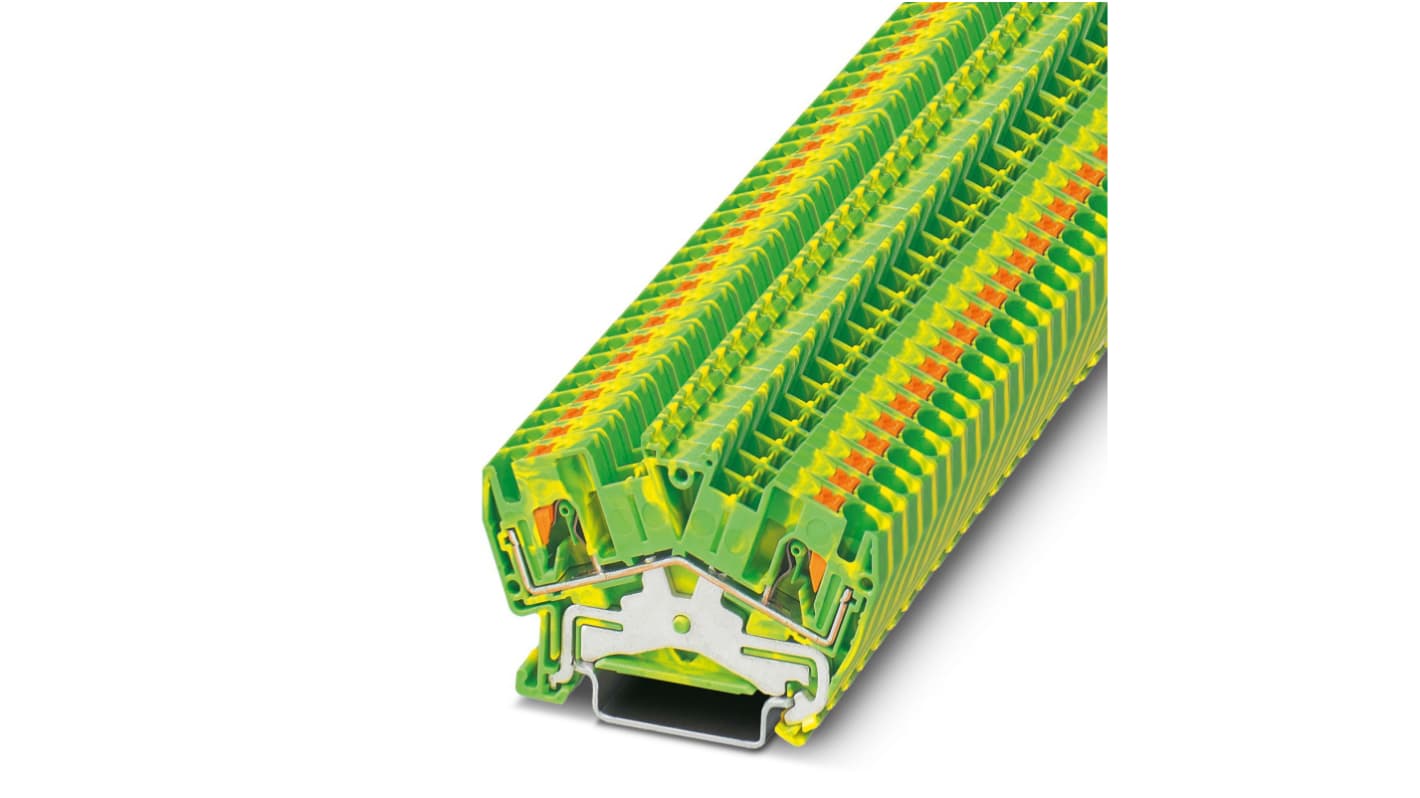

Phoenix Contact 3213603 PTS 4-PE Series Earth Terminal Block Green, Yellow, 0.2mm², 6 mm², 1-Level, Push-in
- RS Stock No.:
- 123-8007
- Mfr. Part No.:
- 3213603
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£16.82
(exc. VAT)
£20.185
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.364 | £16.82 |
*price indicative
- RS Stock No.:
- 123-8007
- Mfr. Part No.:
- 3213603
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Earth Terminal Block | |
| Colour | Green, Yellow | |
| Number of Positions | 2 | |
| Number of Levels | 1 | |
| Voltage | 600V | |
| Series | PTS 4-PE | |
| Cable CSA | 0.2, 6mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Pitch | 5.2mm | |
| Termination Type | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Earth Terminal Block | ||
Colour Green, Yellow | ||
Number of Positions 2 | ||
Number of Levels 1 | ||
Voltage 600V | ||
Series PTS 4-PE | ||
Cable CSA 0.2, 6mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 10AWG | ||
Pitch 5.2mm | ||
Termination Type Push-in | ||
Minimum Operating Temperature -60°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
PTS Earth Modular Terminal Blocks
A professional range of PTS series earth terminal blocks from Phoenix Contact. These push in connection terminal blocks are characterised by the system features of the CLIPLINE complete system and by easy tool-free wiring of conductors with ferrules or solid conductors. The PTS series terminal blocks are a compact design and front connection enabling a wide range of cable size wiring in confined space. All terminal blocks provide an addition test connection and are highly reliable and excellent quality.
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
PTS Series
Approvals
IEC 60947-7-2
