Phoenix Contact 3244465 PTIO 1.5/S/4-PE Series Grey, 1.5mm², Quadruple-Level, Push In Termination
- RS Stock No.:
- 785-8269
- Mfr. Part No.:
- 3244465
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£25.44
(exc. VAT)
£30.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 205 unit(s) ready to ship
- Plus 180 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £5.088 | £25.44 |
*price indicative
- RS Stock No.:
- 785-8269
- Mfr. Part No.:
- 3244465
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Quadruple | |
Series | PTIO 1.5/S/4-PE | |
Voltage Rating | 250 V | |
American Wire Gauge | 26 → 14AWG | |
Termination Method | Push In | |
Cable CSA | 1.5mm² | |
Current Rating | 13.5A | |
Model Number | PTIO 1,5/S/4-PE | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Quadruple | ||
Series PTIO 1.5/S/4-PE | ||
Voltage Rating 250 V | ||
American Wire Gauge 26 → 14AWG | ||
Termination Method Push In | ||
Cable CSA 1.5mm² | ||
Current Rating 13.5A | ||
Model Number PTIO 1,5/S/4-PE | ||
- COO (Country of Origin):
- PL

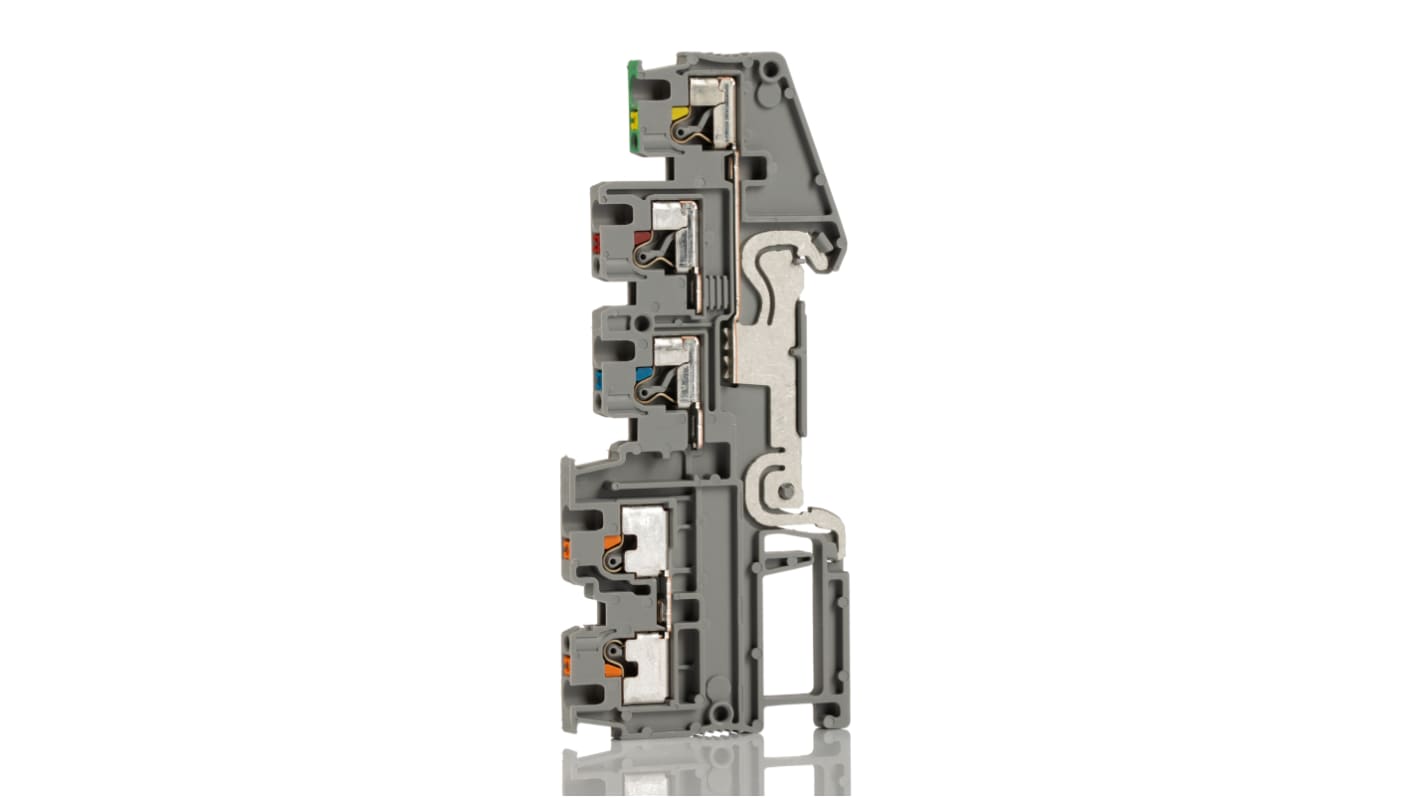

Phoenix Contact DIN Rail Terminal Block, 4 Row, Push-In Connection - PTIO 1.5/S/4-PE - 3244465
Choose this DIN rail terminal block from Phoenix Contact for the safe wiring of control systems in your industrial equipment. It comes with four potential levels that you can use to create up to five connections, reducing the cabling needs of your circuit and supporting a more compact setup. Polyamide housing offers impact and abrasion resistance, making this unit useful in harsh conditions. The material is also an insulator to protect you from electric shocks and ensure safe handling.
This terminal block features push-in connection technology that lets you terminate your conductors without using any tools, saving installation time. Its 13.5A-rated current makes it a practical choice for high current-consuming applications. Because it has a rated surge voltage of 4kV, you can rest assured that the unit won't be damaged by sudden voltage inrushes in volatile settings. You'll find it used in the automation industry, as well as in mechanical engineering workshops.
This terminal block features push-in connection technology that lets you terminate your conductors without using any tools, saving installation time. Its 13.5A-rated current makes it a practical choice for high current-consuming applications. Because it has a rated surge voltage of 4kV, you can rest assured that the unit won't be damaged by sudden voltage inrushes in volatile settings. You'll find it used in the automation industry, as well as in mechanical engineering workshops.
Features & Benefits
• Wide operating temperature range of -60°C to +105°C for use in demanding conditions
• Conforms to IEC 60947-7-1 standards regarding terminal blocks with screw-type or screwless clamping units
• Narrow width of 3.5mm for installation in confined spaces
• Conforms to IEC 60947-7-1 standards regarding terminal blocks with screw-type or screwless clamping units
• Narrow width of 3.5mm for installation in confined spaces
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
