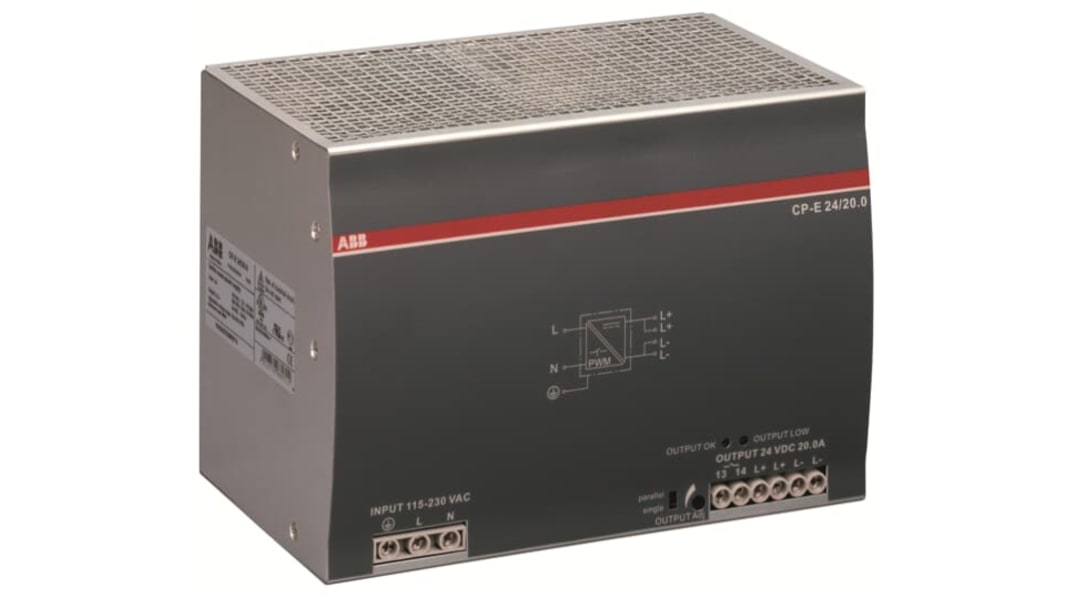

ABB CP-E Switched Mode DIN Rail Power Supply, 90 → 264 V ac / 120 →370V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 668-0936
- Mfr. Part No.:
- 1SVR427036R0000 CP-E 24/20.0
- Brand:
- ABB
Subtotal (1 unit)*
£309.76
(exc. VAT)
£371.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 06 October 2025
- Plus 2 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £309.76 |
*price indicative
- RS Stock No.:
- 668-0936
- Mfr. Part No.:
- 1SVR427036R0000 CP-E 24/20.0
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Series | CP-E | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac, dc | |
Number of Outputs | 1 | |
Input Voltage | 90 → 264 V ac / 120 →370V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 20A | |
Dimensions | 175 x 123.6 x 123.6mm | |
Height | 123.6mm | |
Width | 175mm | |
Depth | 123.6mm | |
Efficiency | 89.0% | |
Minimum Temperature | -40°C | |
Mounting Type | DIN Rail Mount | |
Ripple And Noise | 100mV | |
Maximum Temperature | +85°C | |
Output Voltage Adjustment Range | 22.5 to 28.5V | |
Select all | ||
---|---|---|
Brand ABB | ||
Series CP-E | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac, dc | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264 V ac / 120 →370V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 20A | ||
Dimensions 175 x 123.6 x 123.6mm | ||
Height 123.6mm | ||
Width 175mm | ||
Depth 123.6mm | ||
Efficiency 89.0% | ||
Minimum Temperature -40°C | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise 100mV | ||
Maximum Temperature +85°C | ||
Output Voltage Adjustment Range 22.5 to 28.5V | ||
- COO (Country of Origin):
- TW
ABB DIN Rail Power Supply, 20A Output Current, 24V DC Output Voltage - CP-E Series - 1SVR427036R0000
Adjust your output voltage to match the needs of your industrial equipment with this DIN rail power supply from ABB. The unit snaps easily onto a DIN rail and provides a stable supply of power to equipment used in factory automation and process control applications. It's immune to electrostatic discharge so won't be negatively affected by nearby electronic components. To help to keep your system productive, it's also insensitive to dips, interruptions and variations of voltage supply. This power supply resists shock and vibration, which makes it compatible with demanding industrial applications.
Features & Benefits
• Space-saving dimensions of 175 (width) x 123.6 (height) x 123.6mm (depth) for maximum packing efficiency
• Robust metal housing that withstands harsh working environments
• Wide operating temperature range of -40°C to +70°C, so suitable for extreme conditions
• Low power dissipation, so very little energy is wasted when current is switched
• Robust metal housing that withstands harsh working environments
• Wide operating temperature range of -40°C to +70°C, so suitable for extreme conditions
• Low power dissipation, so very little energy is wasted when current is switched
Applications
• Assembly lines
• Robotics
• Medical and pharmaceutical manufacturing
• Process and packaging warehouses
• Robotics
• Medical and pharmaceutical manufacturing
• Process and packaging warehouses
How do I adjust the output voltage of this power supply?
The output voltage of this power supply is easy to adjust manually using the potentiometer on its front face. The output ranges from 22.5 to 28.5V DC.
