ABB CP-E DIN Rail Power Supply, 90 → 265 V ac / 120 → 370V dc ac, dc Input, 24V dc dc Output, 750mA
- RS Stock No.:
- 234-363
- Mfr. Part No.:
- 1SVR427030R0000 CP-E 24/0.75
- Brand:
- ABB

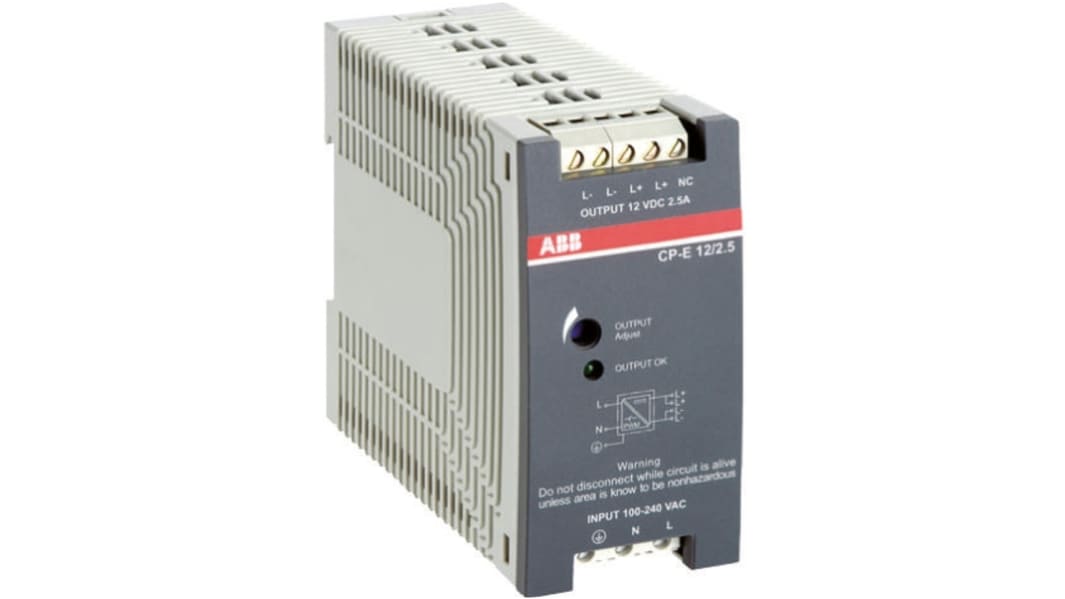

Image representative of range
Subtotal (1 unit)*
£58.90
(exc. VAT)
£70.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 07 November 2025
- Plus 999,999,990 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £58.90 |
*price indicative
- RS Stock No.:
- 234-363
- Mfr. Part No.:
- 1SVR427030R0000 CP-E 24/0.75
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Series | CP-E | |
DC Input Voltage | 375V dc | |
AC Input Voltage | 240V ac | |
Type | Power Supply | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 90 → 265 V ac / 120 → 370V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 750mA | |
Dimensions | 22.5 x 114 x 90mm | |
Height | 90mm | |
Depth | 114mm | |
Width | 22.5mm | |
Load Regulation | ±2% | |
Efficiency | 77.0% | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 21.6 to 28.8V | |
Ripple And Noise | 50mV Pk-Pk | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -10°C | |
Select all | ||
---|---|---|
Brand ABB | ||
Series CP-E | ||
DC Input Voltage 375V dc | ||
AC Input Voltage 240V ac | ||
Type Power Supply | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 90 → 265 V ac / 120 → 370V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 750mA | ||
Dimensions 22.5 x 114 x 90mm | ||
Height 90mm | ||
Depth 114mm | ||
Width 22.5mm | ||
Load Regulation ±2% | ||
Efficiency 77.0% | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 21.6 to 28.8V | ||
Ripple And Noise 50mV Pk-Pk | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -10°C | ||
- COO (Country of Origin):
- TW
ABB DIN Rail Power Supply, DIN Rail Mount, ±2 % Load Regulation - 1SVR427030R0000 CP-E 24/0.75
This DIN rail power supply is designed for effective power management in various industrial environments. With compact dimensions of 22.5x114x90mm, it fits easily into existing installations. The unit operates with a DC input voltage of up to 375V and delivers a steady 24V DC output, making it suitable for automation and control systems.
Features & Benefits
• 18W power rating accommodates a variety of devices
• Adjustable output voltage from 21.6V to 28.8V increases versatility
• AC and DC power supply caters to diverse input requirements
• Efficiency of 77% minimises energy wastage
• Compact design optimises space in control cabinets
• Load regulation of ±2% maintains stable output
• Adjustable output voltage from 21.6V to 28.8V increases versatility
• AC and DC power supply caters to diverse input requirements
• Efficiency of 77% minimises energy wastage
• Compact design optimises space in control cabinets
• Load regulation of ±2% maintains stable output
Applications
• Frequently used in control panels for automation systems
• Suitable for machinery requiring stable 24V power
• Ideal for powering sensors and control devices
• Suitable for machinery requiring stable 24V power
• Ideal for powering sensors and control devices
Can it support both AC and DC input voltages?
Yes, it accepts input voltages from 90 to 265V AC and 120 to 370V DC.
Will it operate safely in high temperatures?
It is rated for a maximum temperature of +70°C.
Is it easy to install on a standard DIN rail?
Yes, its design allows for straightforward DIN rail mounting.
How does it manage voltage stability?
The unit features load regulation of ±2% to ensure stable output.
