Siemens SITOP PSU8200 Switched Mode DIN Rail Power Supply 230V ac 24V dc, 5 A Output 120 W
- RS Stock No.:
- 196-3641
- Mfr. Part No.:
- 6EP3333-8SB00-0AY0
- Brand:
- Siemens
Subtotal (1 unit)*
£170.55
(exc. VAT)
£204.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 12 unit(s) shipping from 11 June 2026
- Plus 8 unit(s) shipping from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £170.55 |
*price indicative
- RS Stock No.:
- 196-3641
- Mfr. Part No.:
- 6EP3333-8SB00-0AY0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | SITOP PSU8200 | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Sub Type | Switched Mode | |
| Electrical Phase | 1 | |
| Power | 120W | |
| Output Current | 5A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 45mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN 61000-6-2, EN 55022 Class B | |
| Depth | 125mm | |
| Height | 125mm | |
| Maximum Input Voltage | 230V ac | |
| Efficiency | 93% | |
| Minimum Input Voltage | 120V ac | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Series SITOP PSU8200 | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 24V dc | ||
Sub Type Switched Mode | ||
Electrical Phase 1 | ||
Power 120W | ||
Output Current 5A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 45mm | ||
Hazardous Area Certification No | ||
Standards/Approvals EN 61000-6-2, EN 55022 Class B | ||
Depth 125mm | ||
Height 125mm | ||
Maximum Input Voltage 230V ac | ||
Efficiency 93% | ||
Minimum Input Voltage 120V ac | ||
- COO (Country of Origin):
- RO

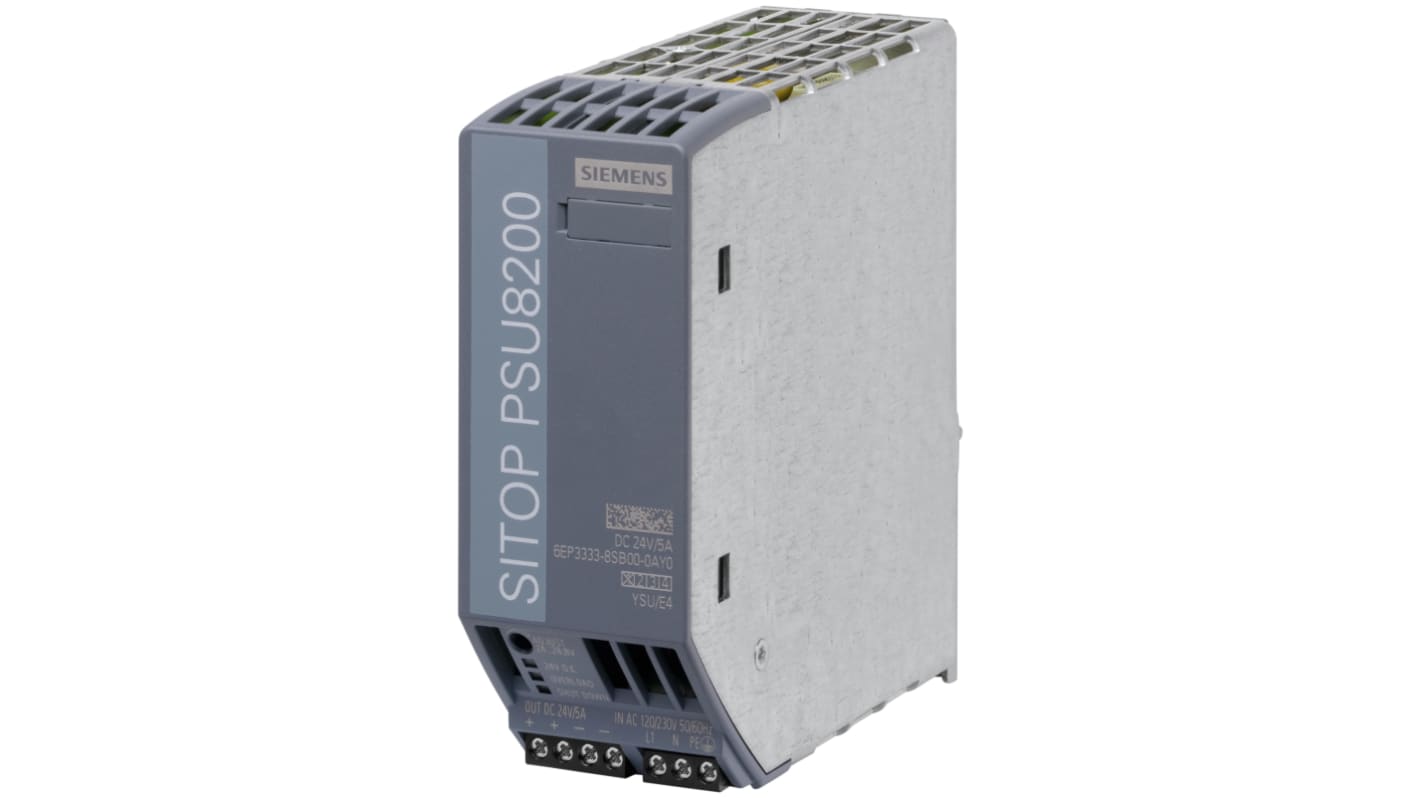

Siemens DIN Rail Power Supply, 24V DC Output, 120W Power Rating - SITOP PSU8200 Series - 6EP33338SB000AY0
Looking for a compact energy conversion solution for your DIN-rail connected devices? Opt for this power supply unit from Siemens. It takes incoming electrical current and converts it to the frequency, voltage and current that your devices can use. The versatile unit is designed for single-phase applications and can operate using both AC (alternating current) and DC (direct current) voltage supplies. With an efficiency of 93%, you can be assured of high performance. For electrical safety, the power supply has an integrated 6A fuse to protect against short circuits. Vents on its frame allow for effective heat dissipation and passive cooling to reduce overheating. You'll frequently find this device used in manufacturing industries.
• Power rating of 120W for heavy-duty applications
• Light weight of 800g for easy handling
• Wide operating temperature range of -25°C to +70°C for use in diverse environments
• LED (light-emitting diode) indicators to show working status, overload and latching shutdown for easy troubleshooting
What's the rated power loss of this unit?
This power supply unit has a low power loss rating of 9W. This makes it an energy-efficient choice for your setup.
