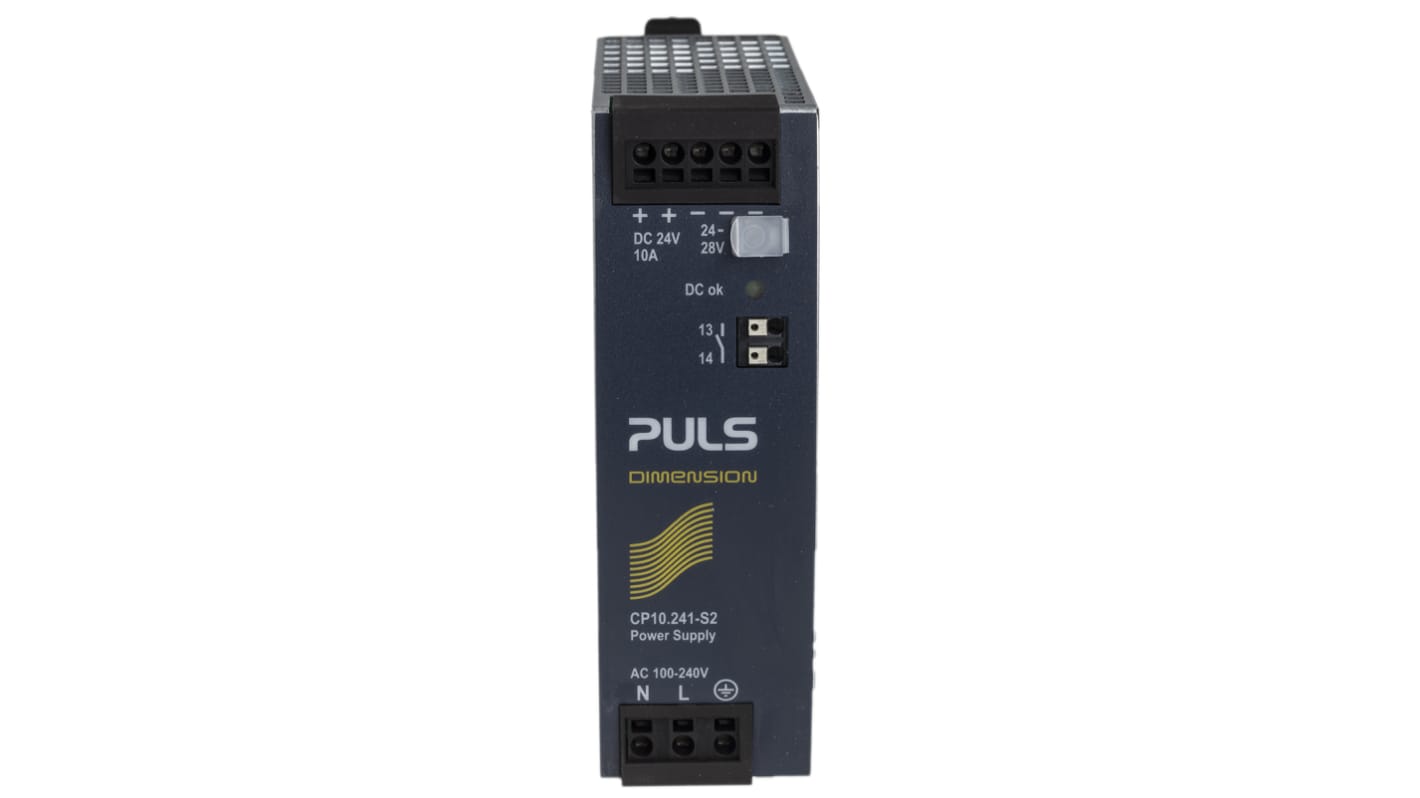

PULS CP DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 10A Output, 240W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

£200.75

(exc. VAT)

£240.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship
  • Plus 52 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£200.75

*price indicative

RS Stock No.:
181-2501
Distrelec Article No.:
301-27-516
Mfr. Part No.:
CP10.241-S2
Brand:
PULS
Find similar products by selecting one or more attributes.
Select all

Brand

PULS

Series

CP

Electrical Phase

1

AC or DC Input Voltage

ac

Number of Outputs

1

Input Voltage

100 → 240V ac

AC or DC Output Voltage

dc

Output Voltage

24V dc

Output Current

10A

Dimensions

39 x 117 x 124mm

Depth

117mm

Width

39mm

Height

124mm

Mounting Type

DIN Rail Mount

MTBF

100h

Load Regulation

50mV

Hazardous Area Certification

ATEX, IECEx

Maximum Temperature

+70°C

Standards Met

ATEX EN 60079-0, ATEX EN 60079-15, CE Certified, cRUus UL 60950-1, CSAus ANSI/ISA 12.12.01-2007, cULus Listed, GL Certified, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-15, UL 508

Efficiency

95.2%

Minimum Temperature

-25°C

Output Voltage Adjustment Range

24 → 28V

Ripple And Noise

50mV Pk-Pk

Special Features

Active Power Factor Correction (PFC)

PULS DIN Rail Power Supply


The PULS DIN rail is a high-quality power supply. These are cost optimized power supplies specifically designed with uncompromised quality and reliability for high performance. The most outstanding features of these units are the small size and high efficiency. It has an input voltage range from 100VAC to 240VAC. The output current is 10A and the maximum input current is 2.15A. The power supplies can deliver three times the nominal output current for 12ms that helps to trip fuses on faulty output branches. High immunity to transients and power surges as well as low electromagnetic emission makes it suitable for almost every situation.

Features and Benefits


• 20% output power reserves
• Active power factor correction
• Efficiency up to 95.2%
• Excellent partial load efficiency
• Minimal inrush current surge

Applications


• Circuit breakers
• Industrial environments
• ITE commercials
• Powerful motor starts

Certifications


• CE approved
• CULus approved
• UL approved
