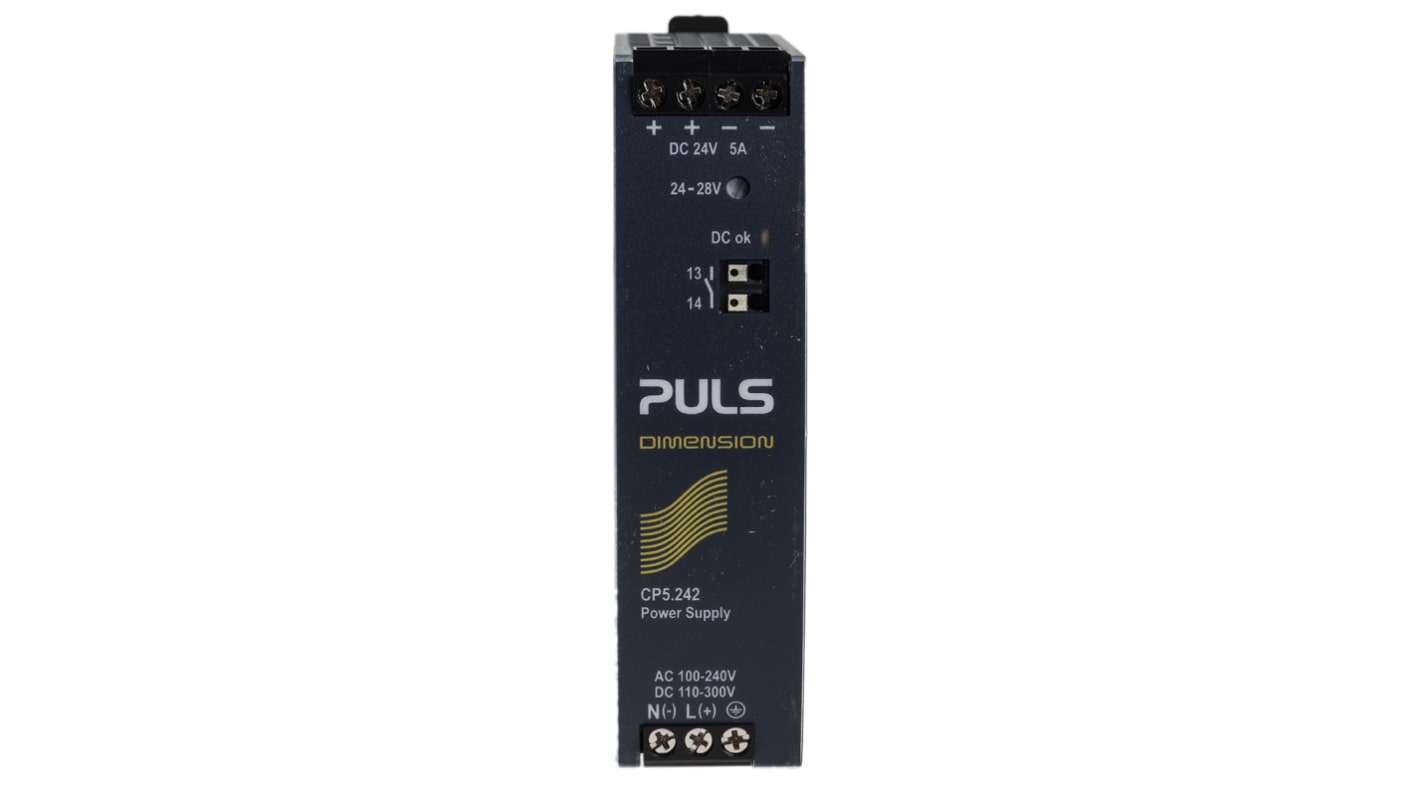

PULS CP DIN Rail Power Supply, 100 → 240 V ac, 110 → 300 V dc ac, dc Input, 24V dc dc Output, 5A Output,
- RS Stock No.:
- 181-2488
- Distrelec Article No.:
- 301-22-996
- Mfr. Part No.:
- CP5.242
- Brand:
- PULS
Subtotal (1 unit)*
£151.60
(exc. VAT)
£181.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £151.60 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£220.96
(exc. VAT)
£265.15
(inc. VAT)
- RS Stock No.:
- 181-2488
- Distrelec Article No.:
- 301-22-996
- Mfr. Part No.:
- CP5.242
- Brand:
- PULS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PULS | |
| Series | CP | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac, dc | |
| Input Voltage | 100 → 240 V ac, 110 → 300 V dc | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 5A | |
| Dimensions | 32 x 102 x 124mm | |
| Width | 32mm | |
| Height | 124mm | |
| Depth | 102mm | |
| Standards Met | ANSI/UL 61010-2-201, CE Certified, cULus Listed, IECEE IEC 60950-1, IECEE IEC 61010-2-201, UL 508 | |
| Maximum Temperature | +70°C | |
| Efficiency | 94.3% | |
| Minimum Temperature | -25°C | |
| Output Voltage Adjustment Range | 24 → 28V | |
| Ripple And Noise | 200mV Pk-Pk | |
| MTBF | 100h | |
| Load Regulation | 50mV | |
| Mounting Type | DIN Rail Mount | |
Select all | ||
|---|---|---|
Brand PULS | ||
Series CP | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 100 → 240 V ac, 110 → 300 V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 5A | ||
Dimensions 32 x 102 x 124mm | ||
Width 32mm | ||
Height 124mm | ||
Depth 102mm | ||
Standards Met ANSI/UL 61010-2-201, CE Certified, cULus Listed, IECEE IEC 60950-1, IECEE IEC 61010-2-201, UL 508 | ||
Maximum Temperature +70°C | ||
Efficiency 94.3% | ||
Minimum Temperature -25°C | ||
Output Voltage Adjustment Range 24 → 28V | ||
Ripple And Noise 200mV Pk-Pk | ||
MTBF 100h | ||
Load Regulation 50mV | ||
Mounting Type DIN Rail Mount | ||
- COO (Country of Origin):
- CZ
PULS DIN Rail Power Supply
The PULS DIN rail panel mount power supply has an input voltage range from 100VAC to 240VAC. The output current is 5A and the maximum input current is 1.09A. It can deliver three times the nominal output current for at least 12ms which helps to trip fuses on faulty output branches. The switch mode PULS series is a single phase DIN rail mounting type power supply.
Features and Benefits
• 20% output power reserves
• Active power factor correction
• Efficiency up to 94.3%
• Excellent partial load efficiency
• Minimal inrush surge current
• Overload protection
• Practical handling
• Short circuit protection
• Active power factor correction
• Efficiency up to 94.3%
• Excellent partial load efficiency
• Minimal inrush surge current
• Overload protection
• Practical handling
• Short circuit protection
Applications
• ITE commercials
Certifications
• CE certified
• CULus listed
• IEC
• UL approved
• CULus listed
• IEC
• UL approved
