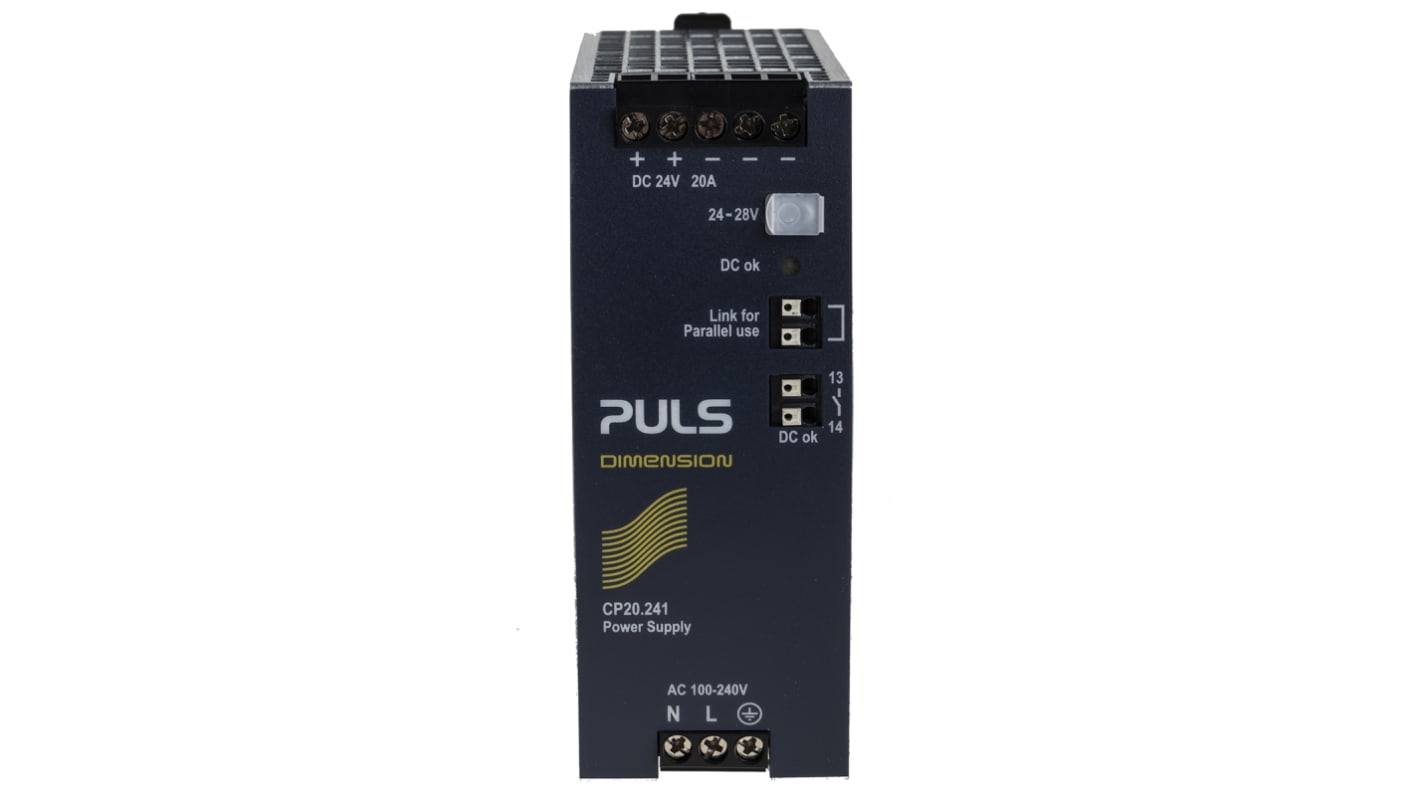

PULS CP DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 20A Output, 480W
- RS Stock No.:
- 181-2491
- Distrelec Article No.:
- 301-09-852
- Mfr. Part No.:
- CP20.241-C1
- Brand:
- PULS
Subtotal (1 unit)*
£341.61
(exc. VAT)
£409.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £341.61 |
*price indicative
- RS Stock No.:
- 181-2491
- Distrelec Article No.:
- 301-09-852
- Mfr. Part No.:
- CP20.241-C1
- Brand:
- PULS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PULS | |
| Series | CP | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac | |
| Input Voltage | 100 → 240V ac | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 20A | |
| Dimensions | 48 x 127 x 124mm | |
| Height | 124mm | |
| Width | 48mm | |
| Depth | 127mm | |
| Minimum Temperature | -25°C | |
| Output Voltage Adjustment Range | 24 → 28V | |
| Mounting Type | DIN Rail Mount | |
| Ripple And Noise | 50mV Pk-Pk | |
| Efficiency | 95.6% | |
| Standards Met | ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, cULus Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508, UL 60950-1 | |
| Hazardous Area Certification | ATEX, IECEx | |
| MTBF | 100h | |
| Maximum Temperature | +70°C | |
| Special Features | Active Power Factor Correction (PFC) | |
| Load Regulation | 100mV | |
Select all | ||
|---|---|---|
Brand PULS | ||
Series CP | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 20A | ||
Dimensions 48 x 127 x 124mm | ||
Height 124mm | ||
Width 48mm | ||
Depth 127mm | ||
Minimum Temperature -25°C | ||
Output Voltage Adjustment Range 24 → 28V | ||
Mounting Type DIN Rail Mount | ||
Ripple And Noise 50mV Pk-Pk | ||
Efficiency 95.6% | ||
Standards Met ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, cULus Listed, IECEE IEC 60950-1, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508, UL 60950-1 | ||
Hazardous Area Certification ATEX, IECEx | ||
MTBF 100h | ||
Maximum Temperature +70°C | ||
Special Features Active Power Factor Correction (PFC) | ||
Load Regulation 100mV | ||
- COO (Country of Origin):
- CZ
PULS DIN Rail Power Supply
The PULS DIN rail power supply is equipped with conformal coated PC boards for application in harsh environments areas. It has an input voltage range from 100VAC to 240VAC. The output current is 20A and the maximum input current is 4.26A. It is cost optimised power supply without compromising quality, reliability and performance. It has high efficiency and thus processes a high MTBF.
Features and Benefits
• 20% output power reserves
• Active power factor correction
• Adjustable output
• Efficiency up to 95.6%
• Excellent partial load efficiency
• Minimal inrush surge current
• Practical handling
• Active power factor correction
• Adjustable output
• Efficiency up to 95.6%
• Excellent partial load efficiency
• Minimal inrush surge current
• Practical handling
Applications
• ITE commercials
Certifications
• ATEX
• CE certified
• CULus listed
• IEC
• IECEx
• UL approved
• CE certified
• CULus listed
• IEC
• IECEx
• UL approved
