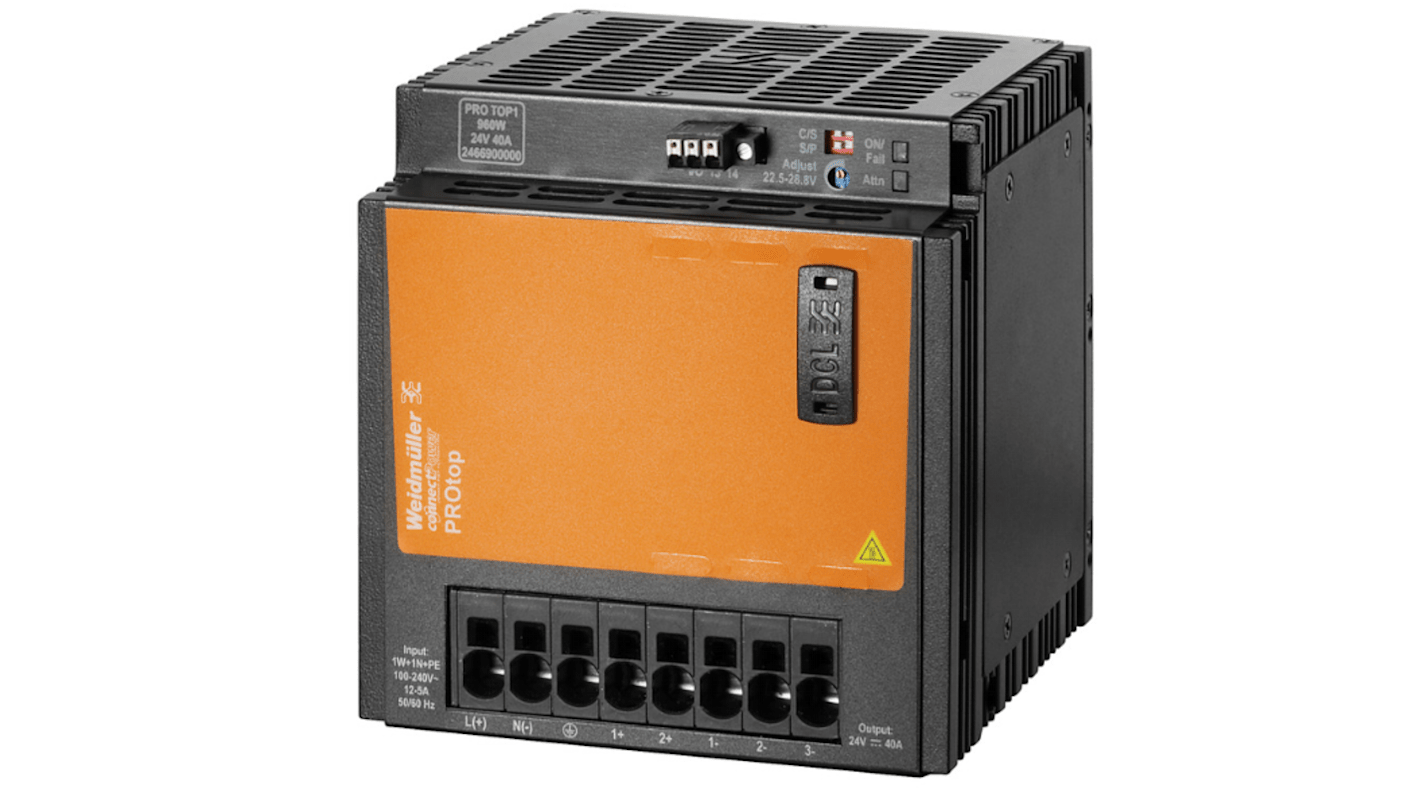

Weidmuller Pro Top Switched Mode DIN Rail Power Supply, 100 → 277 V ac / 120 → 340V dc ac, dc Input, 24V
- RS Stock No.:
- 177-4382
- Distrelec Article No.:
- 300-81-747
- Mfr. Part No.:
- 2466900000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£628.86
(exc. VAT)
£754.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 8 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £628.86 |
*price indicative
- RS Stock No.:
- 177-4382
- Distrelec Article No.:
- 300-81-747
- Mfr. Part No.:
- 2466900000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Series | Pro Top | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 100 → 277 V ac / 120 → 340V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 40A | |
Dimensions | 124 x 125 x 130mm | |
Depth | 125mm | |
Height | 130mm | |
Width | 124mm | |
Ripple And Noise | 50mV Pk-Pk | |
MTBF | 1000000h | |
Special Features | Series Switching Capability, Switch-Mode Power Supply | |
Mounting Type | DIN Rail Mount | |
Minimum Temperature | -25°C | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Series Pro Top | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 100 → 277 V ac / 120 → 340V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 40A | ||
Dimensions 124 x 125 x 130mm | ||
Depth 125mm | ||
Height 130mm | ||
Width 124mm | ||
Ripple And Noise 50mV Pk-Pk | ||
MTBF 1000000h | ||
Special Features Series Switching Capability, Switch-Mode Power Supply | ||
Mounting Type DIN Rail Mount | ||
Minimum Temperature -25°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
Weidmuller DIN Rail Panel Mount Power Supply
The Weidmuller DIN rail panel mount power supply is known for its good quality and high end performance. It has an input voltage range from 85VAC to 277VAC. The output current is 40A and the maximum input current is 15A. The switch mode pro top series is a DIN rail mounting type power supply. The ripple and noise factor is 50mV and high MTBF device.
Features and Benefits
• Cost efficient
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
• Flexibility and reliable
• Long service life
• Overload protection
• Practical handling
• Short circuit protection
• Vibration and extreme temperature condition protection
Applications
• Circuit breakers
• Industrial environments
• Powerful motor starts
• Reliable triggering
• Industrial environments
• Powerful motor starts
• Reliable triggering
Certifications
• UL approved
