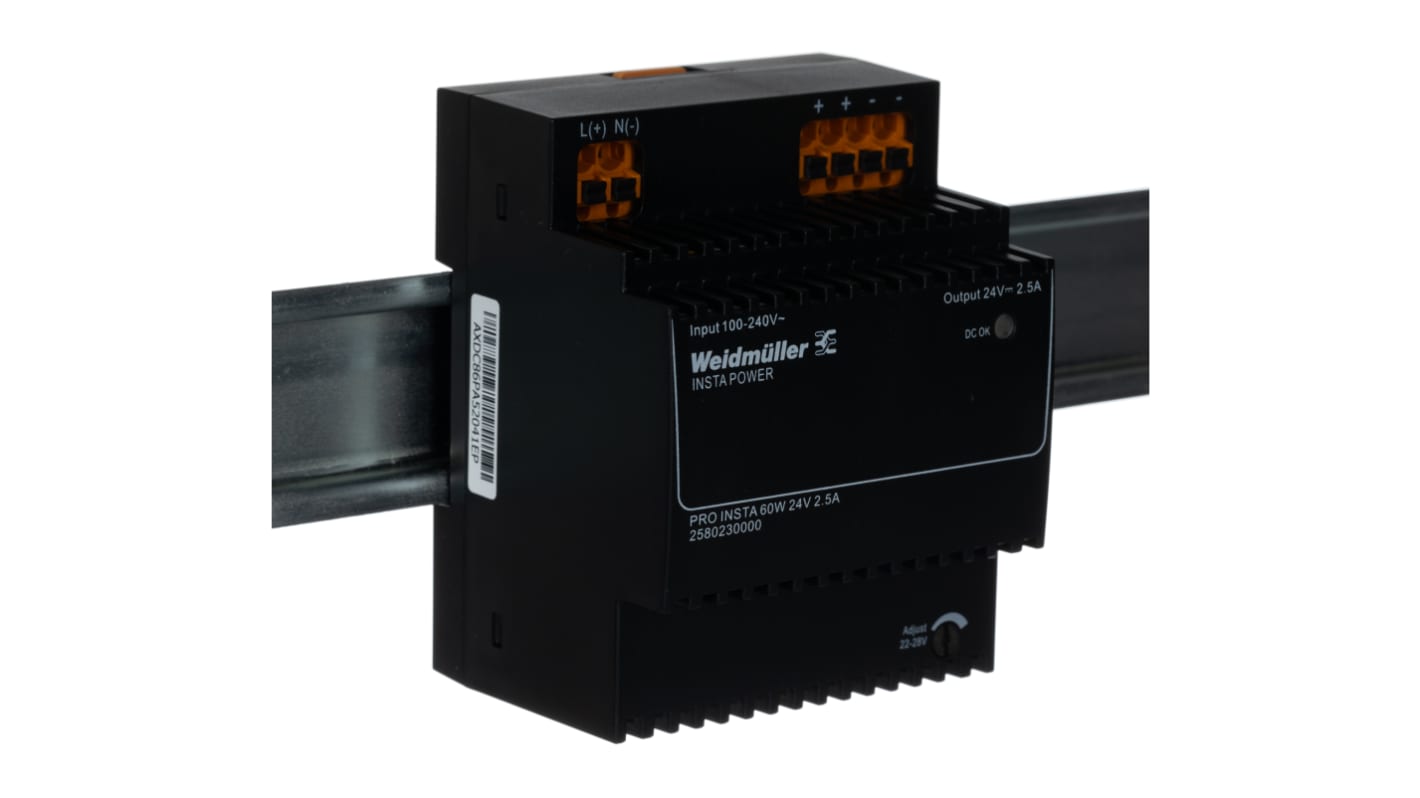

Weidmuller PRO INSTA Switched Mode DIN Rail Power Supply, 120 → 240 V ac / 120 → 340V dc ac, dc Input,
- RS Stock No.:
- 210-5794
- Distrelec Article No.:
- 301-79-752
- Mfr. Part No.:
- 2580230000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£70.10
(exc. VAT)
£84.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £70.10 |
*price indicative
- RS Stock No.:
- 210-5794
- Distrelec Article No.:
- 301-79-752
- Mfr. Part No.:
- 2580230000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Series | PRO INSTA | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac, dc | |
Input Voltage | 120 → 240 V ac / 120 → 340V dc | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 2.5A | |
Width | 72mm | |
Depth | 60mm | |
Height | 90mm | |
Mounting Type | DIN Rail Mount | |
Efficiency | 89% | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 22 → 28V | |
Standards Met | RoHS | |
Minimum Temperature | -25°C | |
Ripple And Noise | <50mV | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Series PRO INSTA | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 120 → 240 V ac / 120 → 340V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 2.5A | ||
Width 72mm | ||
Depth 60mm | ||
Height 90mm | ||
Mounting Type DIN Rail Mount | ||
Efficiency 89% | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 22 → 28V | ||
Standards Met RoHS | ||
Minimum Temperature -25°C | ||
Ripple And Noise <50mV | ||
- COO (Country of Origin):
- CN
Weidmuller DIN Rail Power Supply, 85 to 264V AC Input Voltage Range, Push-In Connection - PRO INSTA Series - 2580230000
Get the correct current flowing into your machinery using this DIN rail power supply from Weidmuller. It steps down a broad input voltage range between 85 and 264V AC or 95 to 370V DC to a safe output voltage of 24V DC. A built-in LED indicator gives the green light to let you know when the power supply is at the right level, so you can easily keep an eye on it. Thanks to its push-in connection system, you'll have your wires attached in no time.
• DIN rail mounting for quick, tool-free installation
• Broad operating temperature range between -25°C and +70°C for use in challenging environments
• Low ripple and noise of
• Broad operating temperature range between -25°C and +70°C for use in challenging environments
• Low ripple and noise of
Applications
• Manufacturing plants
• Telecommunications
• Power stations
• Construction sites
• Telecommunications
• Power stations
• Construction sites
The Weidmüller Insta Power series single phase switching power supplies have 2.5 A output current at 24 V dc output voltage and are characterised by a wide power spectrum, compact design and good value for money. They are suitable for temperature ranges from -25°C to +70°C and have international approvals and a wide voltage input range. This makes them suitable for a wide range of applications which also includes signal and telecommunications systems as well as automation systems with a low power requirement up to 96 Watt.
How efficient is this power supply?
Protection degree IP20
RoHS compliant
High efficiency up to 89 %
Ripple factor and noise is less than 50mV
Shock resistance IEC 60068-2-27
Green colour LED indicator for signalling
RoHS compliant
High efficiency up to 89 %
Ripple factor and noise is less than 50mV
Shock resistance IEC 60068-2-27
Green colour LED indicator for signalling
Thanks to an efficiency rating of up to 89%, this power supply is effective at converting energy from the input supply while generating minimal heat waste.
