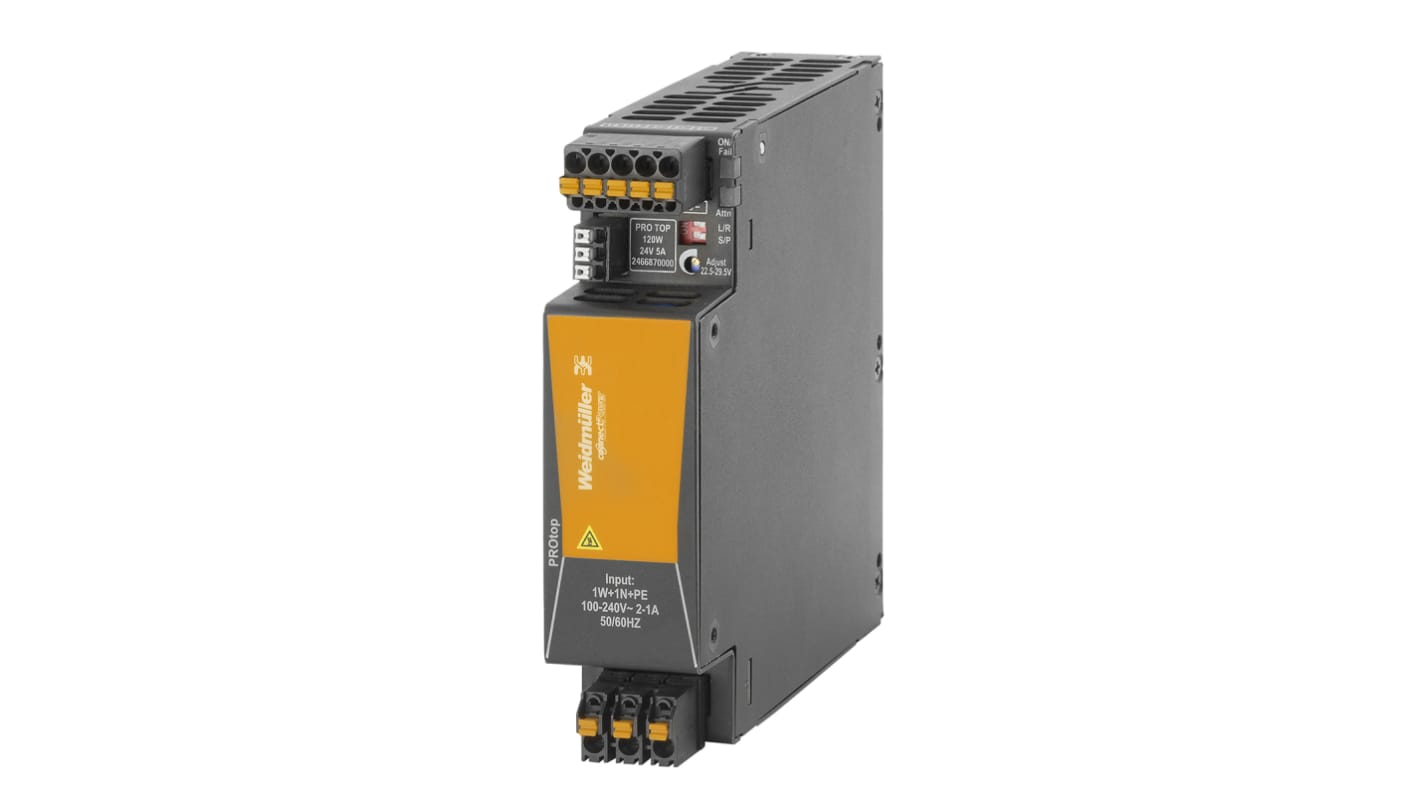

Weidmüller ProTOP Switched Mode DIN Rail Power Supply 340 V dc, 277V ac AC/DC Input 24V dc, 5 A Output DC 120 W
- RS Stock No.:
- 177-4379
- Mfr. Part No.:
- 2466870000
- Brand:
- Weidmüller
Subtotal (1 unit)*
£173.72
(exc. VAT)
£208.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £173.72 |
*price indicative
- RS Stock No.:
- 177-4379
- Mfr. Part No.:
- 2466870000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Series | ProTOP | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | Switched Mode | |
| Maximum Output Voltage | 24V dc | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC/DC | |
| Number of Outputs | 1 | |
| Power | 120W | |
| Output Current | 5A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Output Voltage Type | DC | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 60204 | |
| Width | 125mm | |
| Depth | 125mm | |
| Height | 130mm | |
| Hazardous Area Certification | No | |
| Maximum Input Voltage | 340, 277V dc | |
| Efficiency | 91% | |
| Minimum Input Voltage | 48V dc | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Series ProTOP | ||
Product Type DIN Rail Power Supply | ||
Sub Type Switched Mode | ||
Maximum Output Voltage 24V dc | ||
Electrical Phase 1 | ||
Input Voltage Type AC/DC | ||
Number of Outputs 1 | ||
Power 120W | ||
Output Current 5A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Output Voltage Type DC | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 60204 | ||
Width 125mm | ||
Depth 125mm | ||
Height 130mm | ||
Hazardous Area Certification No | ||
Maximum Input Voltage 340, 277V dc | ||
Efficiency 91% | ||
Minimum Input Voltage 48V dc | ||
- COO (Country of Origin):
- CN
High-end power supplies must perform efficiently and reliably, even in challenging industrial environments. This requires high power reserves, a long service life and optimal protection against overvoltage, vibration and extreme temperature conditions. New DCL technology gives PROtop an outstanding dynamic range. This can be used for the reliable triggering of circuit breakers or for powerful motor starts.
