Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply, 100 → 240 V ac / 110 → 250V dc ac, dc
- RS Stock No.:
- 174-5879
- Distrelec Article No.:
- 301-18-468
- Mfr. Part No.:
- 2909575
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£77.11
(exc. VAT)
£92.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 13 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £77.11 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£77.11
(exc. VAT)
£92.53
(inc. VAT)
- RS Stock No.:
- 174-5879
- Distrelec Article No.:
- 301-18-468
- Mfr. Part No.:
- 2909575
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | QUINT POWER | |
| Type | Switched Mode | |
| Electrical Phase | 1 | |
| Number of Outputs | 1 | |
| AC or DC Input Voltage | ac, dc | |
| Input Voltage | 100 → 240 V ac / 110 → 250V dc | |
| AC or DC Output Voltage | dc | |
| Output Voltage | 24V dc | |
| Output Current | 1.3A | |
| Dimensions | 22.5 x 90 x 106mm | |
| Width | 22.5mm | |
| Depth | 90mm | |
| Height | 106mm | |
| Maximum Temperature | +70°C | |
| Standards Met | CE | |
| MTBF | 1107000 h @ 40 °C, 1904000 h @ 25 °C, 486000 h @ 60 °C | |
| Minimum Temperature | -25°C | |
| Model | QUINT4-PS/1AC/24DC/1.3/PT | |
| Efficiency | 90.7% | |
| Mounting Type | DIN Rail Mount | |
| Special Features | Heavy Loads with Dynamic Boost, Monitoring Indicates Critical Operating States Before Errors Occur, Power Range of up to 100 W | |
| Ripple And Noise | 40mV Pk-Pk | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series QUINT POWER | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac, dc | ||
Input Voltage 100 → 240 V ac / 110 → 250V dc | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 1.3A | ||
Dimensions 22.5 x 90 x 106mm | ||
Width 22.5mm | ||
Depth 90mm | ||
Height 106mm | ||
Maximum Temperature +70°C | ||
Standards Met CE | ||
MTBF 1107000 h @ 40 °C, 1904000 h @ 25 °C, 486000 h @ 60 °C | ||
Minimum Temperature -25°C | ||
Model QUINT4-PS/1AC/24DC/1.3/PT | ||
Efficiency 90.7% | ||
Mounting Type DIN Rail Mount | ||
Special Features Heavy Loads with Dynamic Boost, Monitoring Indicates Critical Operating States Before Errors Occur, Power Range of up to 100 W | ||
Ripple And Noise 40mV Pk-Pk | ||
- COO (Country of Origin):
- VN

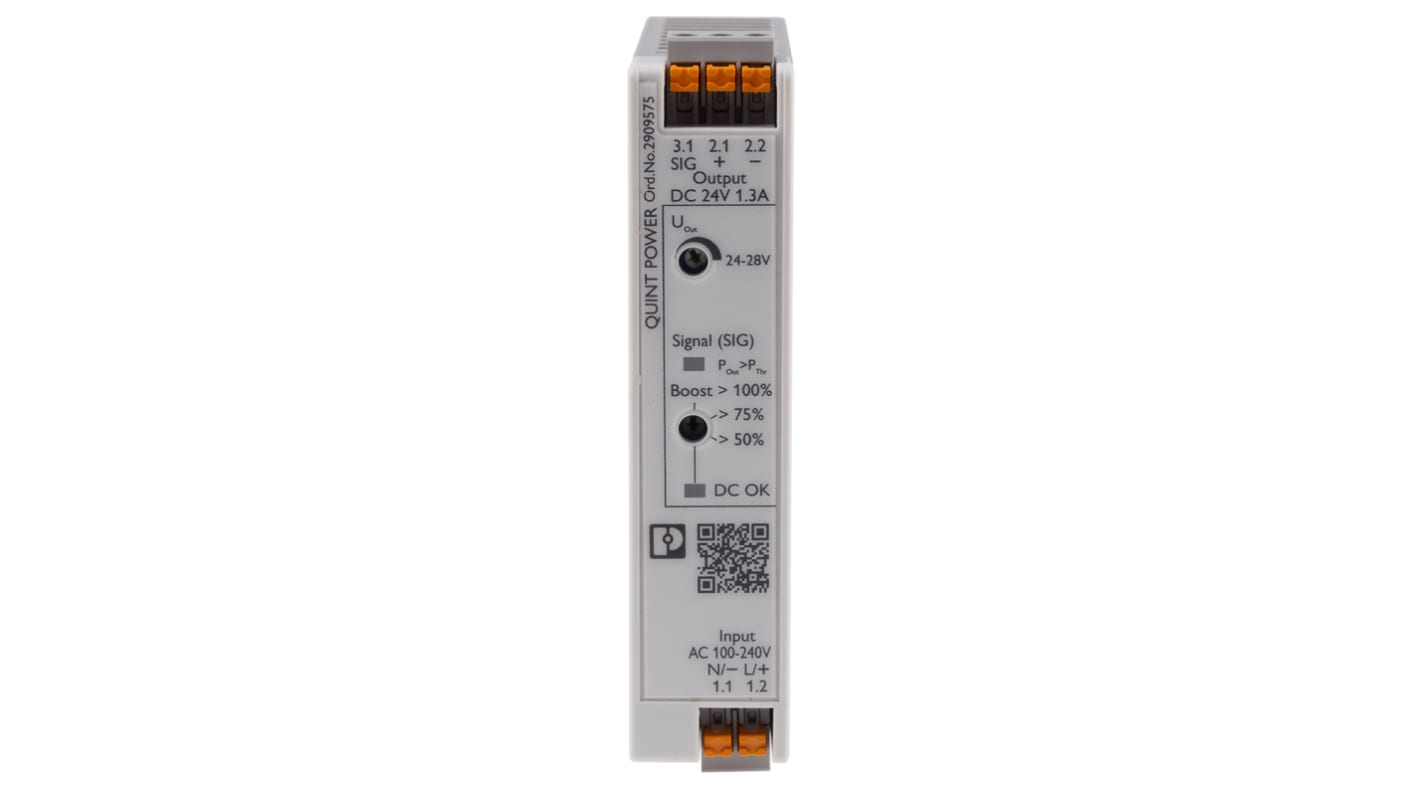

Phoenix Contact QUINT4-PS/1AC/24DC/1.3/PT Series DIN Rail Power Supply, 1.3A Output Current, 24V DC Output Voltage - 2909575
This DIN rail power supply by Phoenix Contact provides a seamless solution for applications in the industrial sector with its reliable power output of 24V DC. With a compact design and a variety of protective features, this power supply ensures optimal performance and safety in diverse environments.
Features & Benefits
• Equipped with push-in technology for efficient installation on DIN rail
• Dynamic boost feature enables starting heavy loads with ease, ensuring smooth operation
• Preventive function monitoring alerts users to critical operating states before errors occur, enhancing system reliability
• Compact design allows for space-saving installation in control cabinets
• Transient surge protection safeguards against unexpected power surges, minimizing risks to connected equipment.
• Dynamic boost feature enables starting heavy loads with ease, ensuring smooth operation
• Preventive function monitoring alerts users to critical operating states before errors occur, enhancing system reliability
• Compact design allows for space-saving installation in control cabinets
• Transient surge protection safeguards against unexpected power surges, minimizing risks to connected equipment.
Applications
• Ideal for use in electrical panels for machinery
• Can be used for powering control devices in manufacturing environments
• Can be used for powering control devices in manufacturing environments
Can it handle heavy loads efficiently and start them without issues?
The power supply is designed with a dynamic boost feature for starting heavy loads seamlessly.
Is it compact and suitable for space-constrained installations?
Yes, the slim-line design of this power supply allows for space-saving installation in control cabinets.
Will it provide alerts for critical operating states before issues occur?
The preventive function monitoring ensures that users are informed of critical operating states beforehand.
How does it protect connected equipment from power surges?
The power supply includes transient surge protection, safeguarding equipment against unexpected surges.
Can it be used in manufacturing environments for powering control devices?
Yes, this power supply is ideal for powering control devices in manufacturing environments.
