Siemens LOGO POWER Switched Mode DIN Rail Power Supply, 100 → 240V ac, 12V dc dc Output, 1.9A Output, 23W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

£86.86

(exc. VAT)

£104.23

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
  • Plus 44 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£86.86

*price indicative

RS Stock No.:
136-5300
Distrelec Article No.:
301-10-794
Mfr. Part No.:
6EP3321-6SB00-0AY0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Series

LOGO POWER

Type

Switched Mode

Electrical Phase

1

Number of Outputs

1

Input Voltage

100 → 240V ac

AC or DC Output Voltage

dc

Output Voltage

12V dc

Output Current

1.9A

Dimensions

36 x 53 x 90mm

Height

90mm

Width

36mm

Depth

53mm

Minimum Temperature

-25°C

Ripple And Noise

200mV Pk-Pk

Output Voltage Adjustment Range

10.5 → 16.1V

Efficiency

81%

Mounting Type

DIN Rail Mount

Maximum Temperature

+70°C

Standards Met

CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950

Load Regulation

0.1%

Special Features

Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio

MTBF

2938542h

COO (Country of Origin):
AT

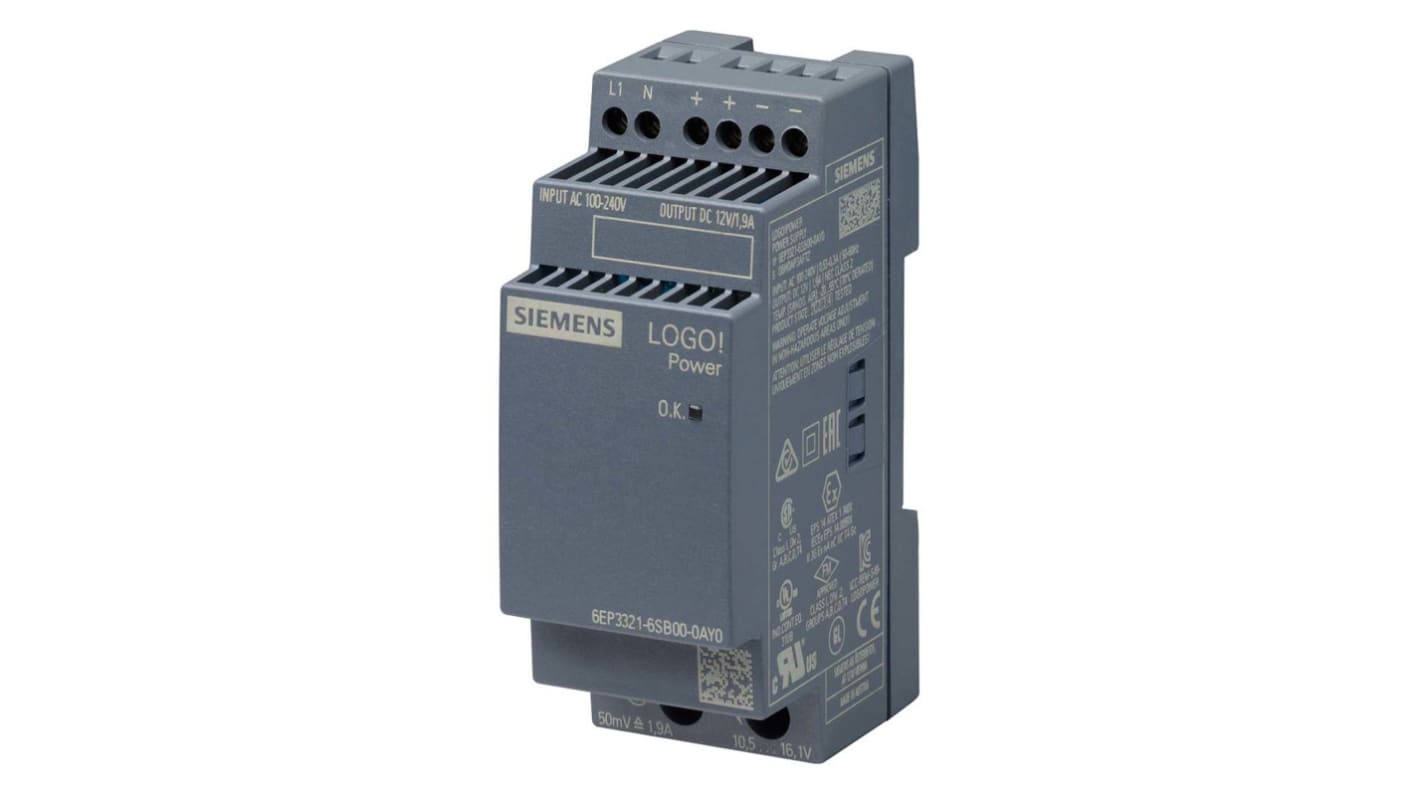

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 23W Power Rating - LOGO!POWER Series - 6EP3321-6SB00-0AY0


Use this Siemens switch-mode DIN rail power supply to operate your industrial equipment in the event of power outages. It provides emergency power to a load when the input source or mains fail. You can easily install the miniature and compact unit in tight spaces like small enclosures thanks to compact dimensions of 36 (W) x 90 (H) x 53mm (D) and a light weight of 120g. It's a flexible device that converts a wide-range input from 100V to 240V for single-phase supply systems and for DC (direct current) power networks, so you can use it with applications such as industrial process control devices and emergency equipment in hospitals.

• Up to 90% efficiency over the entire power range prolongs the lifespan of the device and linked components
• IP20 (ingress protection) rating means it's touch-proof to prevent electrical shocks and shielded against dust entry to prevent corrosive damage

Do I need a cooling system for this power supply?


No, this Siemens miniature power supply is convection cooled so you don't have to install additional cooling fans. It's also safe to mount other power supplies or devices next to it without risk of it overheating.
