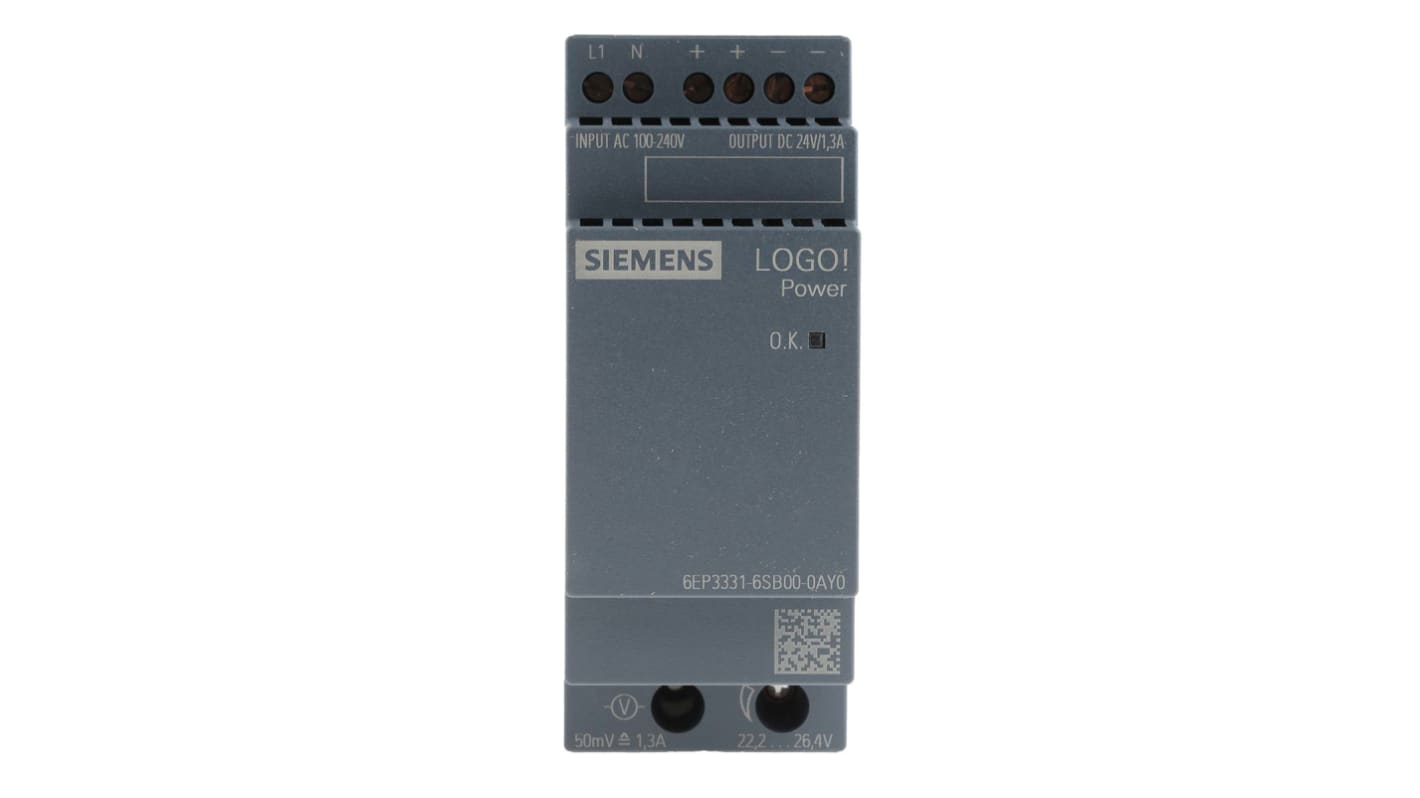

Siemens LOGO POWER Switched Mode DIN Rail Power Supply, 100 → 240V ac ac Input, 24V dc dc Output, 1.3A Output,
- RS Stock No.:
- 136-5296
- Distrelec Article No.:
- 301-10-799
- Mfr. Part No.:
- 6EP3331-6SB00-0AY0
- Brand:
- Siemens
Subtotal (1 unit)*
£62.62
(exc. VAT)
£75.14
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 94 unit(s) shipping from 01 October 2025
- Plus 681 unit(s) shipping from 01 October 2025
Units | Per unit |
---|---|
1 + | £62.62 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£64.64
(exc. VAT)
£77.57
(inc. VAT)
- RS Stock No.:
- 136-5296
- Distrelec Article No.:
- 301-10-799
- Mfr. Part No.:
- 6EP3331-6SB00-0AY0
- Brand:
- Siemens
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Series | LOGO POWER | |
Type | Switched Mode | |
Electrical Phase | 1 | |
Number of Outputs | 1 | |
AC or DC Input Voltage | ac | |
Input Voltage | 100 → 240V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 1.3A | |
Dimensions | 36 x 53 x 90mm | |
Height | 90mm | |
Width | 36mm | |
Depth | 53mm | |
Output Voltage Adjustment Range | 22.2 → 26.4V | |
Efficiency | 86% | |
Ripple And Noise | 200mV Pk-Pk | |
Mounting Type | DIN Rail Mount | |
MTBF | 3094996h | |
Load Regulation | 0.1% | |
Special Features | Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio | |
Maximum Temperature | +70°C | |
Minimum Temperature | -25°C | |
Standards Met | CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 | |
Select all | ||
---|---|---|
Brand Siemens | ||
Series LOGO POWER | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
Number of Outputs 1 | ||
AC or DC Input Voltage ac | ||
Input Voltage 100 → 240V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 1.3A | ||
Dimensions 36 x 53 x 90mm | ||
Height 90mm | ||
Width 36mm | ||
Depth 53mm | ||
Output Voltage Adjustment Range 22.2 → 26.4V | ||
Efficiency 86% | ||
Ripple And Noise 200mV Pk-Pk | ||
Mounting Type DIN Rail Mount | ||
MTBF 3094996h | ||
Load Regulation 0.1% | ||
Special Features Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio | ||
Maximum Temperature +70°C | ||
Minimum Temperature -25°C | ||
Standards Met CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950 | ||
- COO (Country of Origin):
- AT
Siemens Switch Mode DIN Rail Power Supply, 1.3A, 31W - LOGO!POWER Series - 6EP3331-6SB00-0AY0
• Mean time between failures (MTBF) of 30,949,996 hours for long-lasting performance
• Wide operating temperature range of -25°C to +70°C for use in harsh environments
Why should I use a DIN rail power supply?
