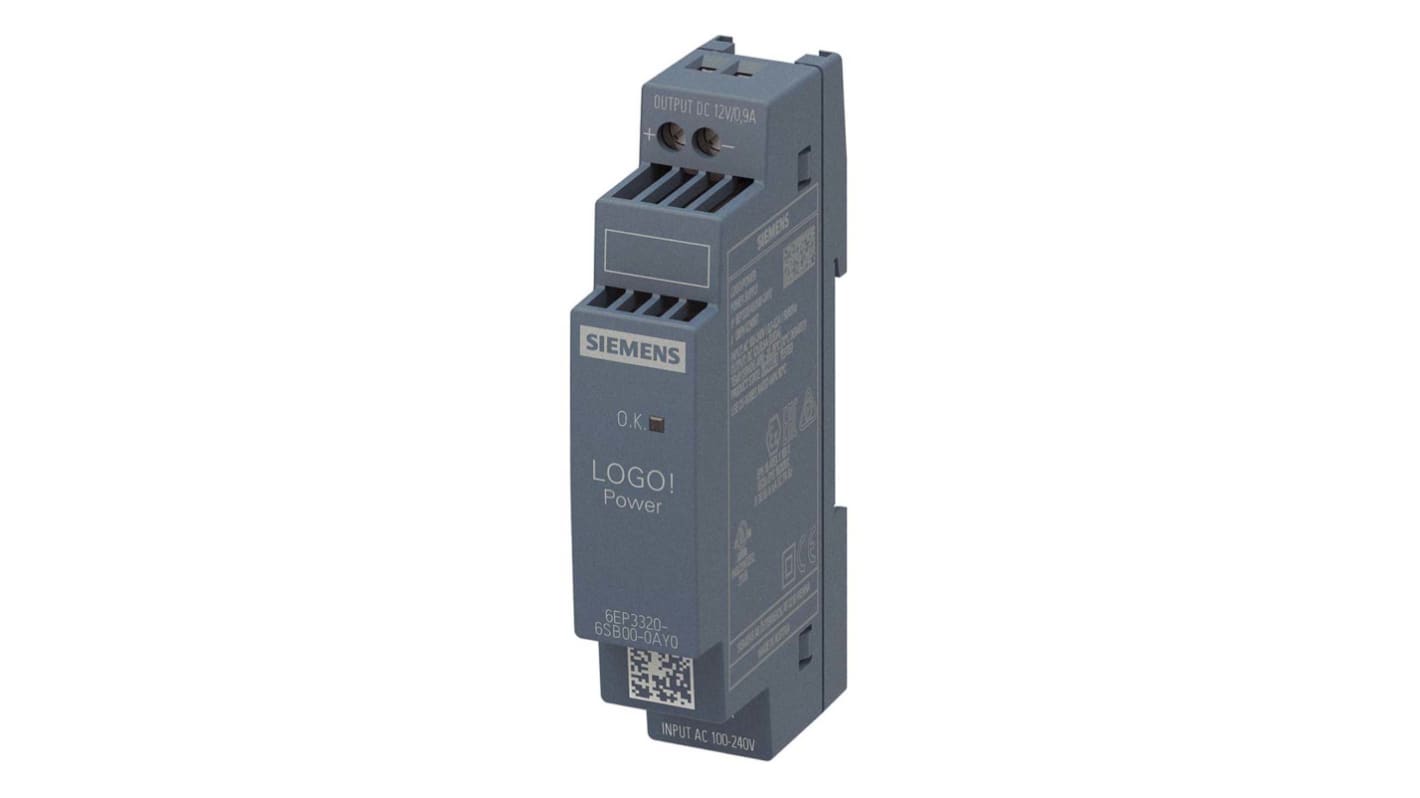

Siemens LOGO POWER Switched Mode DIN Rail Power Supply, 230V ac, 12V dc dc Output, 900mA Output, 10.8W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

£50.50

(exc. VAT)

£60.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£50.50

*price indicative

RS Stock No.:
136-5299
Distrelec Article No.:
301-10-793
Mfr. Part No.:
6EP3320-6SB00-0AY0
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Series

LOGO POWER

Type

Switched Mode

Electrical Phase

1

Number of Outputs

1

Input Voltage

230V ac

AC or DC Output Voltage

dc

Output Voltage

12V dc

Output Current

900mA

Dimensions

18 x 53 x 90mm

Height

90mm

Depth

53mm

Width

18mm

Standards Met

CB, CE Marked, CSA C22.2 No. 107.1, CSA C22.2 No. 60950, cULus, cURus Recognised, File E151273, File E197259, FM Approval, NEC Class 2, UL 508, UL 60950

Output Voltage Adjustment Range

±3%

Ripple And Noise

200 (Ripple)mV Pk-Pk

Maximum Temperature

+70°C

Load Regulation

0.1%

Mounting Type

DIN Rail Mount

Efficiency

78%

Minimum Temperature

-25°C

Special Features

Flexible Deployment, Flexible Mounting, Global Use, High Energy Efficiency, Load Monitoring, Low Width, Reliable, Wide Portfolio

MTBF

3793080h

COO (Country of Origin):
AT

Siemens Switch-Mode DIN Rail Power Supply, 12V DC Output, 10.8W Power Rating - LOGO!POWER Series - 6EP3320-6SB00-0AY0


Prevent equipment downtimes and production interruptions with this switch-mode DIN rail power supply from Siemens. It's a reliable and efficient 900mA (milliampere) miniature electric power backup system that converts incoming current to supply the correct voltage and current to your applications. A flat and stepped profile design makes this 70g lightweight unit easy to install in confined spaces such as distribution boards. You can confidently use this flexible power supply with its wide-range input for single-phase systems and direct current (DC) networks with numerous applications such as powering actuators, solenoids and motors.

• Parallel-enabled circuit configurations allow current flow in multiple directions to establish greater output and improve efficiency
• Load regulation of 0.1% ensures the reliable maintenance of output voltage during current changes, which means equipment receives the correct voltage to function
• Operating temperature range of -25°C to +70°C means you can use the product in harsh environments

Is it safe to touch this unit?


You can safely touch this unit without worrying about electric shocks. An IP20 (ingress protection) rating means it's dust-proof and touch-proof, so enhances workplace safety.
