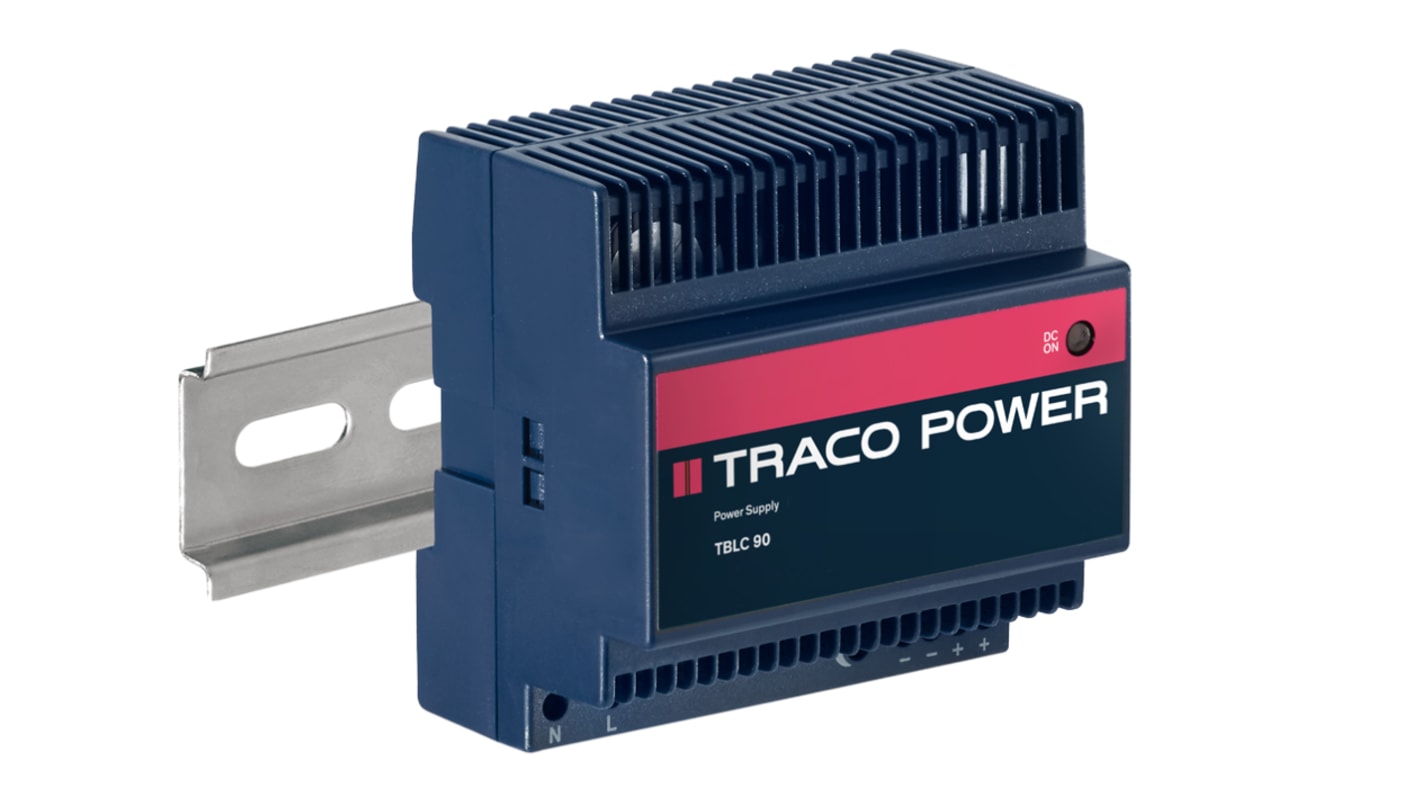

TRACOPOWER TBLC 90 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output,

RS Stock No.:: 125-8554
Distrelec Article No.:: 301-21-027
Mfr. Part No.:: TBLC 90-124
Brand:: TRACOPOWER

TRACOPOWER TBLC 90 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output,

Subtotal (1 unit)*

£76.07

(exc. VAT)

£91.28

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

32 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£76.07

*price indicative

RS Stock No.:: 125-8554
Distrelec Article No.:: 301-21-027
Mfr. Part No.:: TBLC 90-124
Brand:: TRACOPOWER

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Series	TBLC 90
	Type	Switched Mode
	Electrical Phase	1
	AC or DC Input Voltage	ac
	Number of Outputs	1
	Input Voltage	85 → 264V ac
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	3.75A
	Dimensions	89.5 x 18 x 59.5mm
	Depth	89.5mm
	Height	59.5mm
	Width	90mm
	Mounting Type	DIN Rail Mount
	Load Regulation	0.3%
	Special Features	Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes
	MTBF	1900000h
	Minimum Temperature	-25°C
	Standards Met	ErP Compliant
	Maximum Temperature	+70°C
	Ripple And Noise	50mV Pk-Pk
	Output Voltage Adjustment Range	24 → 28V
	Efficiency	90%

	Select all
	Brand TRACOPOWER
	Series TBLC 90
	Type Switched Mode
	Electrical Phase 1
	AC or DC Input Voltage ac
	Number of Outputs 1
	Input Voltage 85 → 264V ac
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 3.75A
	Dimensions 89.5 x 18 x 59.5mm
	Depth 89.5mm
	Height 59.5mm
	Width 90mm
	Mounting Type DIN Rail Mount
	Load Regulation 0.3%
	Special Features Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes
	MTBF 1900000h
	Minimum Temperature -25°C
	Standards Met ErP Compliant
	Maximum Temperature +70°C
	Ripple And Noise 50mV Pk-Pk
	Output Voltage Adjustment Range 24 → 28V
	Efficiency 90%

COO (Country of Origin):: CN

Traco Power DIN Rail Power Supply, Single Output, 3000V AC Isolation Voltage - TBLC Series - TBLC 90-124

Choose this DIN rail power supply from Traco Power to keep your automated system ticking along. It has a 90W power rating, so it's ideal for driving demanding jobs in single-phase systems without breaking a sweat. Inconsistent voltage levels are smoothed out to a reliable 24V DC and a low 50mV Pk-Pk ripple and noise level means electrical disruption is kept to a minimum. Thanks to clip-on DIN rail mounting, installation is simple and snappy, meaning you can get to work immediately.

Features & Benefits

• Wide input voltage range between 85 and 264V AC for broad compatibility
• Performs reliably in a temperature range between -25°C and +70°C
• Compact dimensions of 59.5 (L) x 90 (W) x 89.5mm (D) makes it space-efficient
• Light 280g weight keeps load low to minimise strain on your infrastructure

Applications

• Medical facilities
• Industrial automation
• Air-con systems

How efficient is this unit?

This DIN rail power supply has a 90% efficiency rating, which means minimal energy is lost through heat generation.

How flammable is this DIN rail power supply?

You can rest assured that this unit's made from flame-retardant material and self-extinguishes in under one minute in the event of fire.
