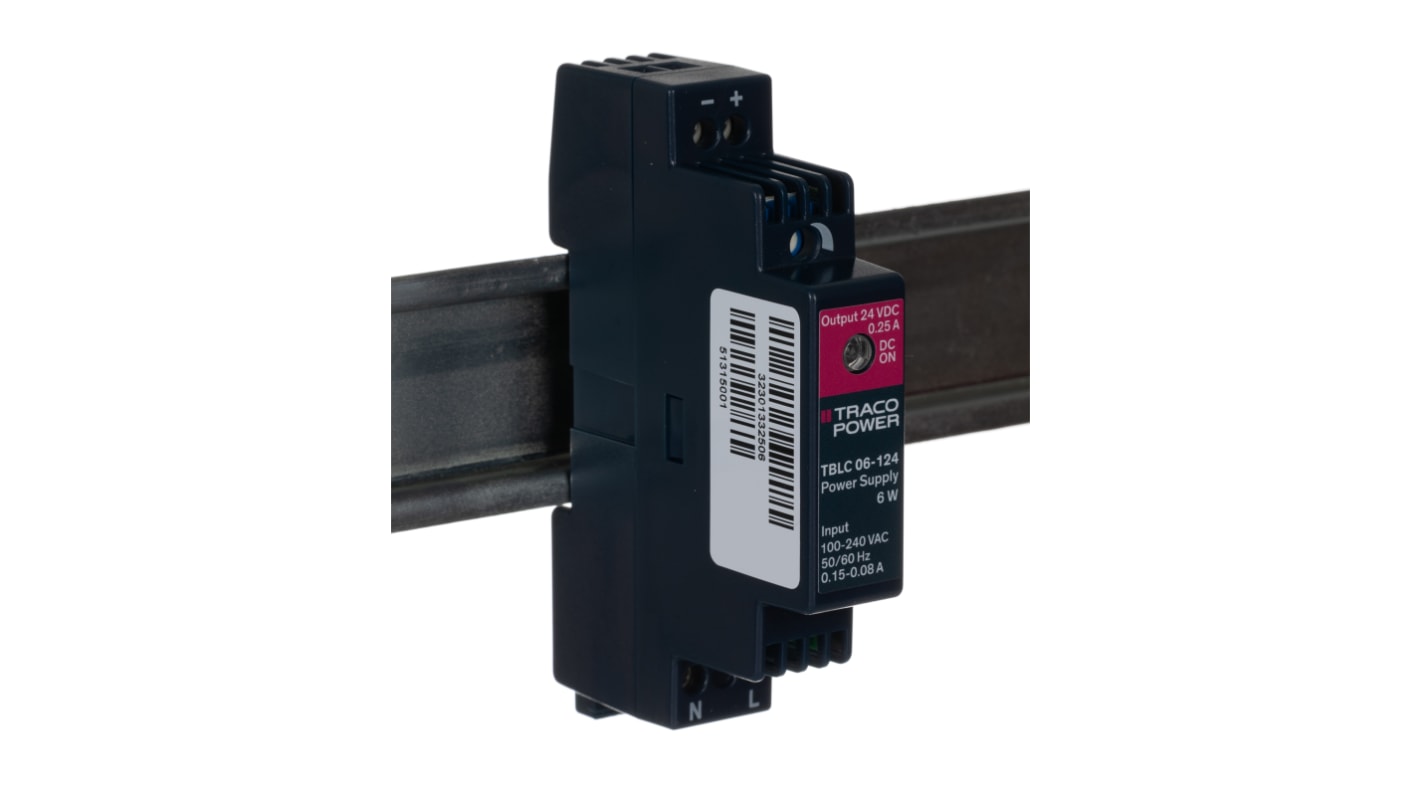

TRACOPOWER TBLC 06 Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 250mA Output, 6W

View all DIN Rail Power Supplies

Subtotal (1 unit)*

£42.29

(exc. VAT)

£50.75

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 58 unit(s) ready to ship
  • Plus 107 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£42.29

*price indicative

RS Stock No.:
125-8542
Distrelec Article No.:
301-21-020
Mfr. Part No.:
TBLC 06-124
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Series

TBLC 06

Type

Switched Mode

Electrical Phase

1

AC or DC Input Voltage

ac

Number of Outputs

1

Input Voltage

85 → 264V ac

AC or DC Output Voltage

dc

Output Voltage

24V dc

Output Current

250mA

Dimensions

89.5 x 18 x 59.5mm

Height

59.5mm

Depth

89.5mm

Width

18mm

Output Voltage Adjustment Range

24 → 28V

Efficiency

79%

Mounting Type

DIN Rail Mount

Load Regulation

0.3%

Special Features

Adjustable Output Voltage, Compliant to New Standby Power & Efficiency Requirements, Low Output Ripples & Spikes

Standards Met

ErP Compliant

Maximum Temperature

+70°C

MTBF

1900000h

Ripple And Noise

50mV Pk-Pk

Minimum Temperature

-25°C

COO (Country of Origin):
CN

Traco Power DIN Rail Power Supply, -25°C to +70°C Operating Temperature Range, 3000V AC Isolation Voltage - TBLC Series - TBLC 06-124


Add this DIN rail power supply from Traco Power to your system to change AC inputs into a 24V DC output in a jiffy. It's an energy-conscious device that complies with new ECO Standard legislation, to help your workplace achieve sustainability goals. Compact dimensions of 59.5 (L) x 18 (W) x 89.5mm (D) mean it takes up minimal space. A wide-ranging input voltage between 85 and 264V AC makes this power supply a versatile option for domestic or industrial tasks.

Features & Benefits


• Plastic housing resists impact and corrosion
• Reinforced class II insulation means no earth is needed and safety is boosted
• Continuous short-circuit protection safeguards against damage from voltage spikes
• Regulation DIN rail mounting makes installation swift and simple

Applications


• Manufacturing equipment
• Heating systems
• Lighting rigs

Can I use the assembly in harsh conditions?


Yes, this power supply performs reliably in a temperature range of -25°C to +70°C, so it's ideal for use in challenging environments.

How heavy is this PSU?


It tips the scales at only 60g, so doesn't put any strain on your rail.
