TRACOPOWER TSP Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 3.75A Output, 90W
- RS Stock No.:
- 511-5337
- Distrelec Article No.:
- 169-00-211
- Mfr. Part No.:
- TSP 090-124
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£108.17
(exc. VAT)
£129.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 169 unit(s) ready to ship
- Plus 445 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £108.17 |
*price indicative
- RS Stock No.:
- 511-5337
- Distrelec Article No.:
- 169-00-211
- Mfr. Part No.:
- TSP 090-124
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Series | TSP | |
Type | Switched Mode | |
Electrical Phase | 1 | |
AC or DC Input Voltage | ac | |
Number of Outputs | 1 | |
Input Voltage | 85 → 264V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 3.75A | |
Dimensions | 110 x 35 x 110mm | |
Height | 110mm | |
Width | 35mm | |
Depth | 110mm | |
Special Features | Overvoltage and Short Circuit Protection | |
Load Regulation | ±0.5% | |
Efficiency | 87% | |
Mounting Type | DIN Rail Mount | |
MTBF | 1800000h | |
Minimum Temperature | -25°C | |
Standards Met | CE | |
Maximum Temperature | +70°C | |
Output Voltage Adjustment Range | 24 → 28V | |
Ripple And Noise | 200mV Pk-Pk | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Series TSP | ||
Type Switched Mode | ||
Electrical Phase 1 | ||
AC or DC Input Voltage ac | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 3.75A | ||
Dimensions 110 x 35 x 110mm | ||
Height 110mm | ||
Width 35mm | ||
Depth 110mm | ||
Special Features Overvoltage and Short Circuit Protection | ||
Load Regulation ±0.5% | ||
Efficiency 87% | ||
Mounting Type DIN Rail Mount | ||
MTBF 1800000h | ||
Minimum Temperature -25°C | ||
Standards Met CE | ||
Maximum Temperature +70°C | ||
Output Voltage Adjustment Range 24 → 28V | ||
Ripple And Noise 200mV Pk-Pk | ||
- COO (Country of Origin):
- CN

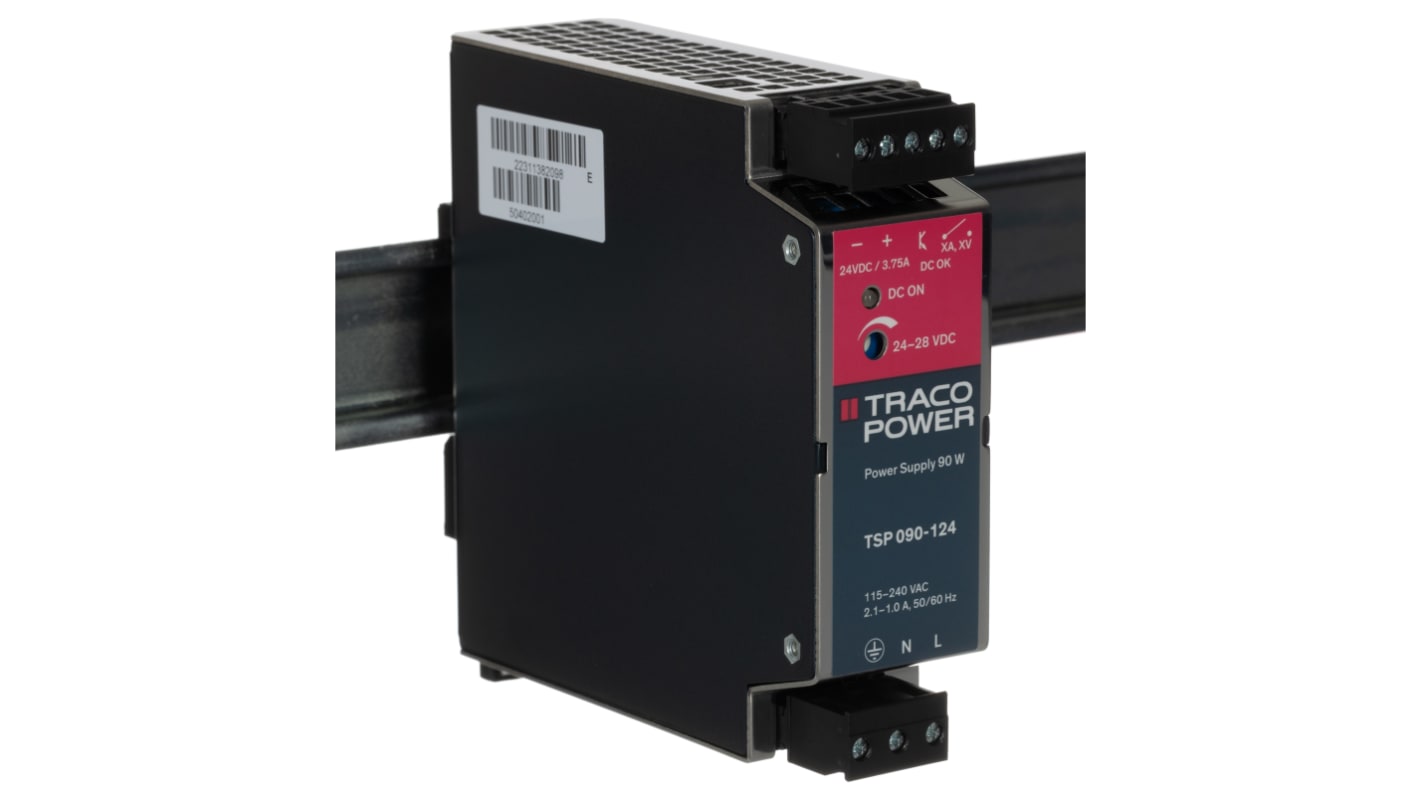

Traco Power DIN Rail Power Supply, 200 mV Pk-Pk Ripple And Noise, 500g Weight - TSP Series - TSP 090-124
Easily energise your equipment with this DIN rail power supply from Traco Power. An input voltage range between 85V and 264V AC means you can use it anywhere to deliver a stable 24V DC to your devices. The unit has a handy LED output indicator that makes status monitoring and troubleshooting a cinch. A high efficiency rating of 87% means you can depend on low energy usage and minimal heat build-up. Thanks to load regulation of ±0.5%, this is a safe and stable power solution.
Features & Benefits
• Wide operating temperature between -25°C and +70°C so it's handy in harsh conditions
• Short-circuit and overload protection prevents overcurrent damage to equipment
• Power rating of 90W means it's suitable for mid-power applications
• Mean time between failures of 1,800,000h, for long-term performance
• Short-circuit and overload protection prevents overcurrent damage to equipment
• Power rating of 90W means it's suitable for mid-power applications
• Mean time between failures of 1,800,000h, for long-term performance
Applications
• Industrial automation control systems
• Telecommunications equipment
• Engineering workshops
• Telecommunications equipment
• Engineering workshops
How big is this DIN rail power supply?
It has compact dimensions of 35 (W) x 110 (H) x 110mm (D), so it fits onto a crowded DIN rail with ease.
Approvals
UL 60950-1 recognised, UL 508 listed
