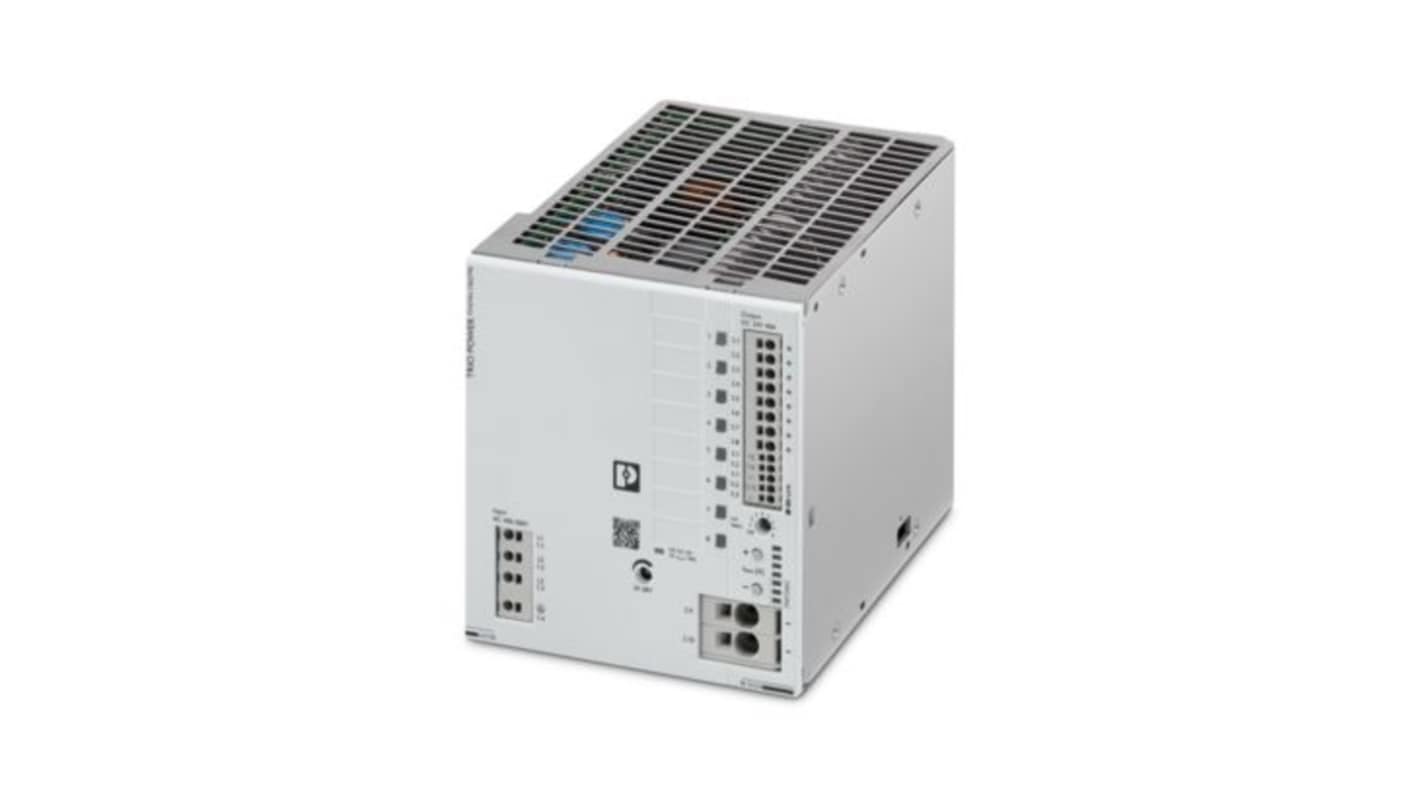

Phoenix Contact TRIO POWER Primary-Switched Mode Power Supply DIN Rail Power Supply 500V ac AC Input 24V dc, 40 A Output
- RS Stock No.:
- 518-063
- Mfr. Part No.:
- 1362792
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£455.35
(exc. VAT)
£546.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £455.35 |
*price indicative
- RS Stock No.:
- 518-063
- Mfr. Part No.:
- 1362792
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | TRIO POWER | |
| Product Type | DIN Rail Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Sub Type | Primary-Switched Mode Power Supply | |
| Electrical Phase | 3 | |
| Input Voltage Type | AC | |
| Number of Outputs | 1 | |
| Power | 960W | |
| Communications | IO-Link | |
| Output Current | 40A | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -25°C | |
| Output Voltage Type | DC | |
| Remote signal DC-OK | Yes | |
| Maximum Operating Temperature | 70°C | |
| Width | 128mm | |
| Standards/Approvals | UL 61010-2-201, ANSI/UL PROCESS CONTROL EQUIPMENT FOR HAZARDOUS LOCATIONS, CSA C22.2 No. 223, cULus Listed, EN 61000-3-2, EN 61000-4-11, EN 61010-1, EN 61010-2-201, IEC 61010-1, IEC 61010-2-201, IEC 61558-2-16, IECEE CB Scheme, SEMI F47, UL 1310, UL 2367, UL 61010-1 | |
| Hazardous Area Certification | Class I, D, Division 2, Groups A, B, C | |
| Depth | 160mm | |
| Height | 135mm | |
| Maximum Input Voltage | 500V ac | |
| Efficiency | 94.6% | |
| Minimum Input Voltage | 400V ac | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series TRIO POWER | ||
Product Type DIN Rail Power Supply | ||
Maximum Output Voltage 24V dc | ||
Sub Type Primary-Switched Mode Power Supply | ||
Electrical Phase 3 | ||
Input Voltage Type AC | ||
Number of Outputs 1 | ||
Power 960W | ||
Communications IO-Link | ||
Output Current 40A | ||
IP Rating IP20 | ||
Minimum Operating Temperature -25°C | ||
Output Voltage Type DC | ||
Remote signal DC-OK Yes | ||
Maximum Operating Temperature 70°C | ||
Width 128mm | ||
Standards/Approvals UL 61010-2-201, ANSI/UL PROCESS CONTROL EQUIPMENT FOR HAZARDOUS LOCATIONS, CSA C22.2 No. 223, cULus Listed, EN 61000-3-2, EN 61000-4-11, EN 61010-1, EN 61010-2-201, IEC 61010-1, IEC 61010-2-201, IEC 61558-2-16, IECEE CB Scheme, SEMI F47, UL 1310, UL 2367, UL 61010-1 | ||
Hazardous Area Certification Class I, D, Division 2, Groups A, B, C | ||
Depth 160mm | ||
Height 135mm | ||
Maximum Input Voltage 500V ac | ||
Efficiency 94.6% | ||
Minimum Input Voltage 400V ac | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Power supply unit is engineered to deliver robust energy solutions with efficiency and reliability at its core. Designed for demanding industrial environments, it combines primary switching technology with a compact design, optimized for DIN rail mounting. Equipped with intelligent diagnostics and multicolor LEDs, it efficiently signals operational statuses such as DC OK and overload conditions, providing peace of mind during operation. The device stands out with its innovative push-in connection technology, dramatically reducing installation time and costs. This power unit ensures seamless integration with existing systems and maintains exceptional performance even under fluctuating load demands, guaranteeing a reliable power supply for critical applications.
Smart diagnostics with multicolor LED indicators enhance operational monitoring
Integrated multi channel device protection ensures reliable performance
Significantly reduces wiring and installation efforts by up to 70%
Facilitates easy commissioning via intuitive manual operation or IO Link parameterization
Offers compact design capabilities that save precious space within control cabinets
Compatible with a range of input voltages providing versatility across applications
