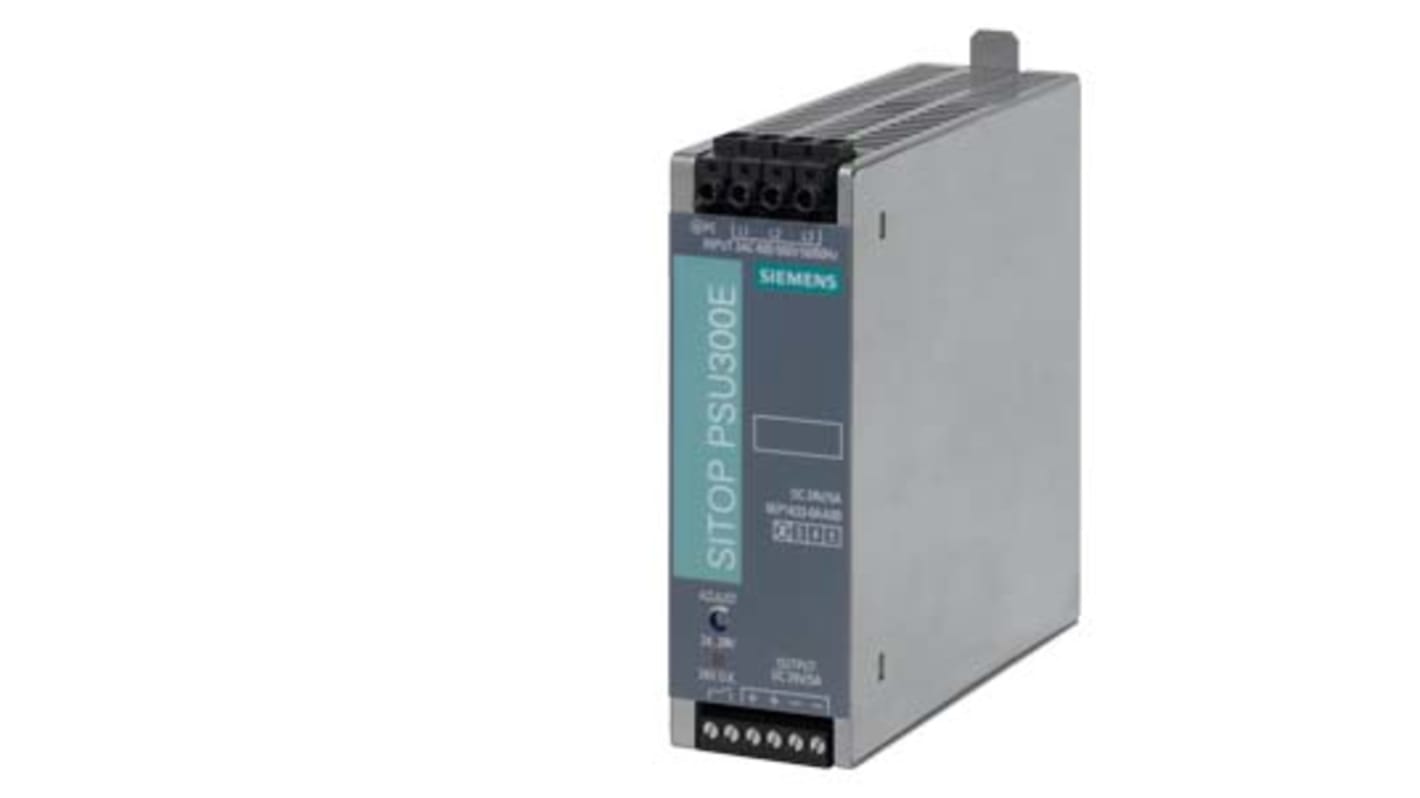

Siemens SITOP Switched Mode DIN Rail Power Supply, 400 → 500V ac ac Input, 24V dc dc Output, 5A Output, 120W
- RS Stock No.:
- 243-0148
- Mfr. Part No.:
- 6EP1433-0AA00
- Brand:
- Siemens
Subtotal (1 unit)*
£234.32
(exc. VAT)
£281.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £234.32 |
*price indicative
- RS Stock No.:
- 243-0148
- Mfr. Part No.:
- 6EP1433-0AA00
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Series | SITOP | |
Type | Switched Mode | |
Electrical Phase | 3 | |
AC or DC Input Voltage | ac | |
Input Voltage | 400 → 500V ac | |
AC or DC Output Voltage | dc | |
Output Voltage | 24V dc | |
Output Current | 5A | |
Dimensions | 42 x 125 x 125mm | |
Depth | 125mm | |
Width | 42mm | |
Height | 125mm | |
Mounting Type | DIN Rail Mount | |
Efficiency | 90% | |
Minimum Temperature | 0°C | |
Standards Met | CE | |
MTBF | 2389441h | |
Maximum Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Siemens | ||
Series SITOP | ||
Type Switched Mode | ||
Electrical Phase 3 | ||
AC or DC Input Voltage ac | ||
Input Voltage 400 → 500V ac | ||
AC or DC Output Voltage dc | ||
Output Voltage 24V dc | ||
Output Current 5A | ||
Dimensions 42 x 125 x 125mm | ||
Depth 125mm | ||
Width 42mm | ||
Height 125mm | ||
Mounting Type DIN Rail Mount | ||
Efficiency 90% | ||
Minimum Temperature 0°C | ||
Standards Met CE | ||
MTBF 2389441h | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- RO
Siemens SITOP Series DIN Rail Power Supply, 120W Power Rating, 24V DC Output Voltage - 6EP1433-0AA00
This DIN rail power supply is designed for industrial applications where reliable electrical performance is essential. Featuring a compact design with dimensions of 42 x 125 x 125mm, it provides a stable 24V DC output with a current rating of 5A. This versatile power supply is suitable for a variety of automation and control systems, ensuring efficient operation in demanding environments.
Features & Benefits
• Operates on 3-phase AC input of 400V to 500V
• High efficiency at 90%, reducing energy consumption
• Output voltage adjustable between 24V and 29V
• Short-circuit proof with automatic restart capability
• Controlled, isolated DC voltage for enhanced performance
• CE certified, ensuring compliance with safety standards
• High efficiency at 90%, reducing energy consumption
• Output voltage adjustable between 24V and 29V
• Short-circuit proof with automatic restart capability
• Controlled, isolated DC voltage for enhanced performance
• CE certified, ensuring compliance with safety standards
Applications
• Used in automation systems requiring stable DC power
• Ideal for industrial control panels and machinery
• Suitable for powering sensors and actuators
• Employed in robotics for reliable operation
• Ideal for industrial control panels and machinery
• Suitable for powering sensors and actuators
• Employed in robotics for reliable operation
What is the maximum buffering time during a power failure?
The buffering time when powered at a rated input of 400V is a minimum of 50 ms, allowing continued operation under critical circumstances.
How does the output voltage adjust for varying loads?
The output voltage has a relative control precision of 3%, accommodating fluctuations in input voltage and load to maintain stability.
What type of terminals are used for electrical connections?
The power supply features screw-type terminals, which accommodate 0.5 mm² to 2.5 mm² single-core or finely stranded wires for secure connections.
What is the short-circuit capability during operation?
During operation, the device can handle a short-circuit current of up to 28A, ensuring it can manage unexpected load conditions effectively.
What protection features are included to ensure safe operation?
The device includes electronic short-circuit protection and overvoltage protection to safeguard both the power supply and connected equipment.
