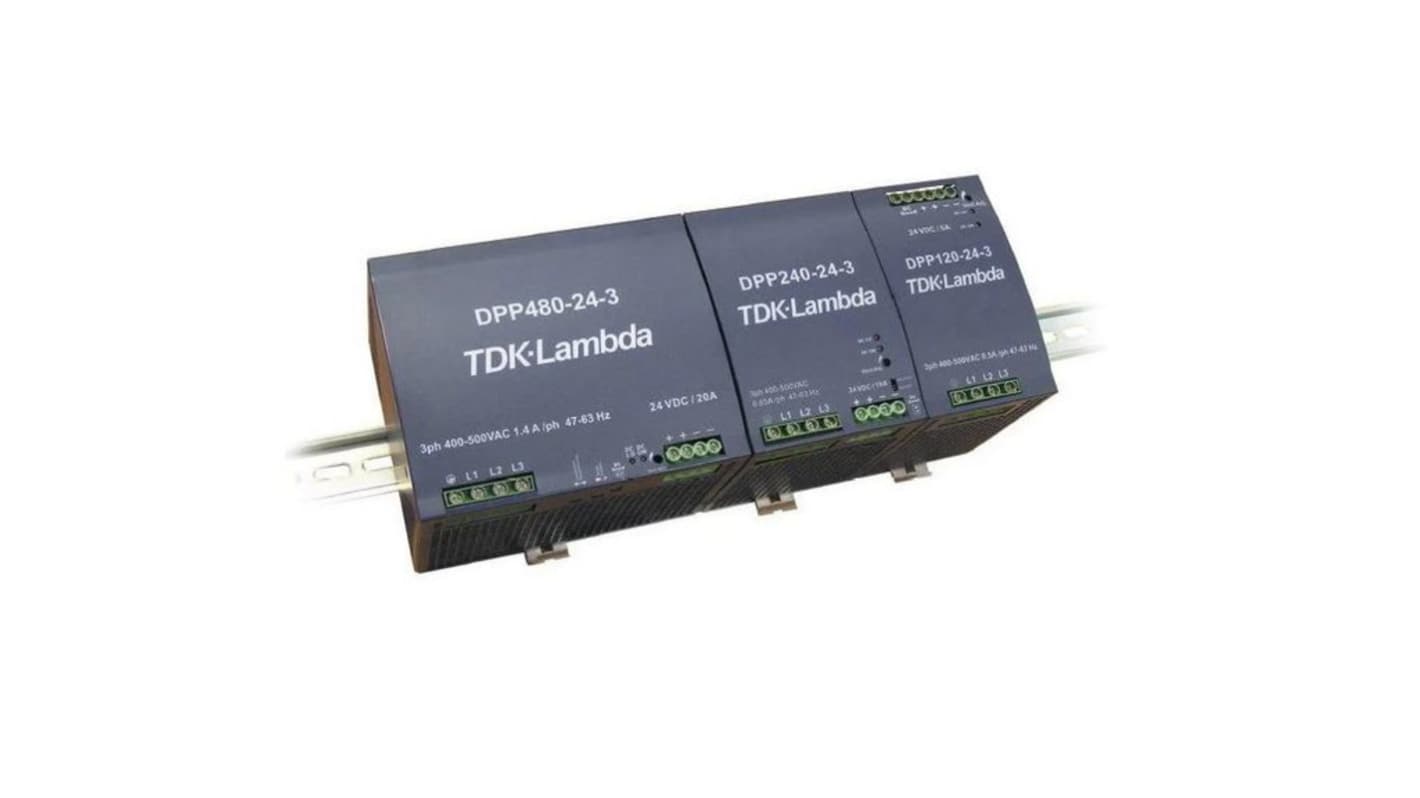

TDK-Lambda DPP120 - 960 DIN Rail DIN Rail Power Supply 264V ac AC Input 48V, 5 A Output DC 240 W
- RS Stock No.:
- 325-711
- Distrelec Article No.:
- 304-06-197
- Mfr. Part No.:
- DPP240-48-1
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£126.59
(exc. VAT)
£151.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.59 |
*price indicative
- RS Stock No.:
- 325-711
- Distrelec Article No.:
- 304-06-197
- Mfr. Part No.:
- DPP240-48-1
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Series | DPP120 - 960 | |
| Product Type | DIN Rail Power Supply | |
| Sub Type | DIN Rail | |
| Maximum Output Voltage | 48V | |
| Electrical Phase | 1 | |
| Input Voltage Type | AC | |
| Number of Outputs | 1 | |
| Power | 240W | |
| Communications | No Built-In Digital Communication | |
| Output Current | 5A | |
| IP Rating | IP20 | |
| Remote signal DC-OK | Yes | |
| Output Voltage Type | DC | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 71°C | |
| Standards/Approvals | UL60950-1, UL508, IEC61000 immunity series, EN55022 Class B EMI | |
| Width | 83mm | |
| Hazardous Area Certification | No | |
| Height | 125mm | |
| Depth | 116.6mm | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 91% | |
| Minimum Input Voltage | 90V ac | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Series DPP120 - 960 | ||
Product Type DIN Rail Power Supply | ||
Sub Type DIN Rail | ||
Maximum Output Voltage 48V | ||
Electrical Phase 1 | ||
Input Voltage Type AC | ||
Number of Outputs 1 | ||
Power 240W | ||
Communications No Built-In Digital Communication | ||
Output Current 5A | ||
IP Rating IP20 | ||
Remote signal DC-OK Yes | ||
Output Voltage Type DC | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 71°C | ||
Standards/Approvals UL60950-1, UL508, IEC61000 immunity series, EN55022 Class B EMI | ||
Width 83mm | ||
Hazardous Area Certification No | ||
Height 125mm | ||
Depth 116.6mm | ||
Maximum Input Voltage 264V ac | ||
Efficiency 91% | ||
Minimum Input Voltage 90V ac | ||
The TDK-Lambda DIN Rail Mount Power Supplies consists of 240W single output is designed for a variety of industrial applications. These power supplies are low cost, offer 48V outputs, and support a wide range AC input. They are equipped with active power factor correction and a parallel function switch, and can operate in a temperature range of -40 to +71°C.
Adjustable Voltage is 47 to 56 V
Output Current is 5A
Efficiency is 91 percent
UL508 Approvals
Easy System Integration and Configuration
