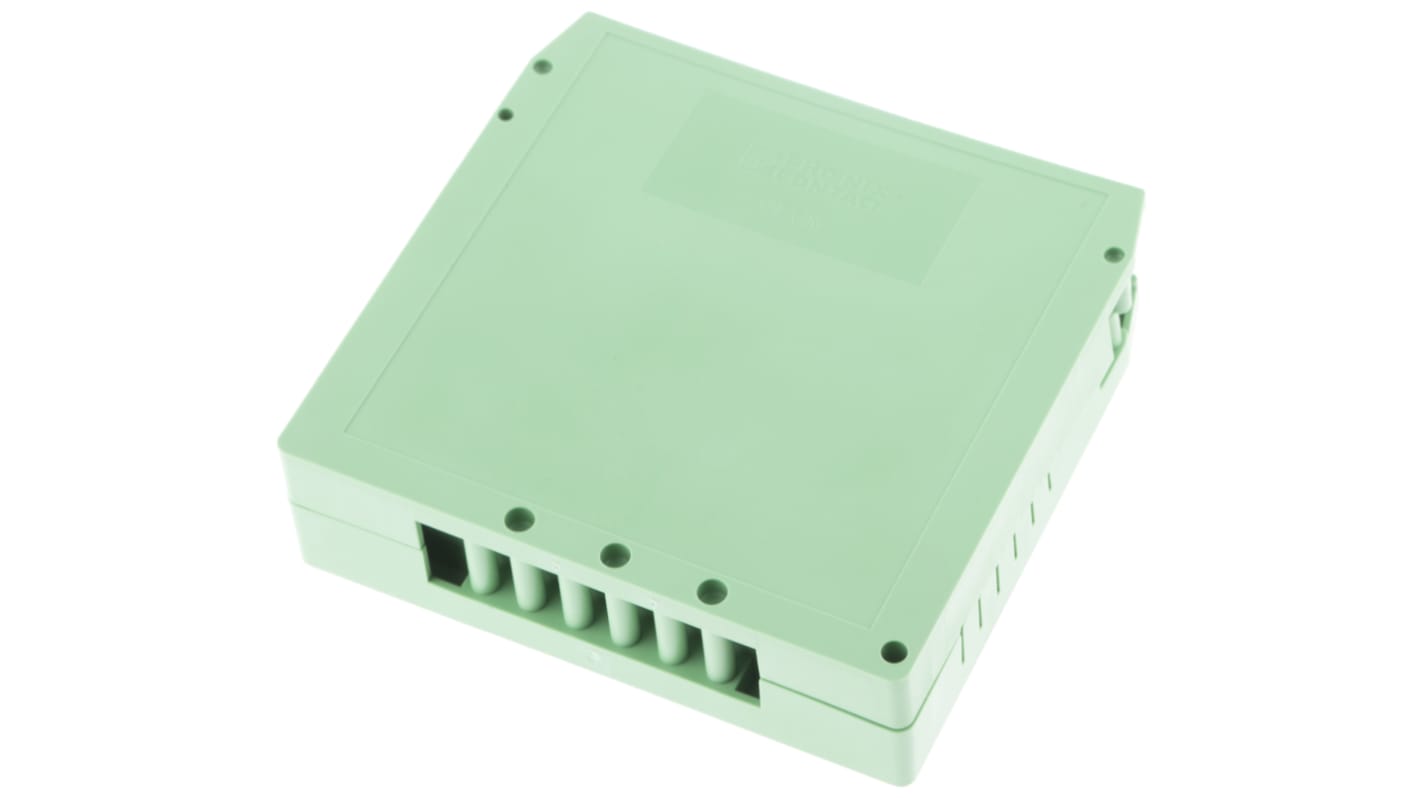

Phoenix Contact Electronic Housing Enclosure Type UEGM Series, Polyamide 85.5 mm 79 mm DIN Rail Enclosure 22.5mm
- RS Stock No.:
- 648-3552
- Mfr. Part No.:
- 2792002
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 648-3552
- Mfr. Part No.:
- 2792002
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | DIN Rail Enclosure | |
| Enclosure Type | Electronic Housing | |
| Body Material | Polyamide | |
| Length | 79mm | |
| Width | 22.5mm | |
| Maximum Terminals | 6 | |
| Colour | Green | |
| IP Rating | IP20 | |
| Series | UEGM | |
| UL Rating | V0 | |
| Internal Mount Type | PCB | |
| Standards/Approvals | cULus Recognised | |
| Hazardous Area Certification | No | |
| Height | 85.5mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type DIN Rail Enclosure | ||
Enclosure Type Electronic Housing | ||
Body Material Polyamide | ||
Length 79mm | ||
Width 22.5mm | ||
Maximum Terminals 6 | ||
Colour Green | ||
IP Rating IP20 | ||
Series UEGM | ||
UL Rating V0 | ||
Internal Mount Type PCB | ||
Standards/Approvals cULus Recognised | ||
Hazardous Area Certification No | ||
Height 85.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Phoenix Contact UEGM Plastic PCB housings
The Phoenix Contact range of UEGM electronic housings, or commonly referred to as enclosures are high-quality polyamide PCB housings. These housings give you the ability the mount a PCB onto your DIN rail set-up while still having the total functionality of your PCB, thanks to the DIN rail footing design located on the back of the electronic housing. Assembly of these housings are nice and easy thanks to the overlapping housing parts and not to mention, fully equipped with 3 screw or 6 tab connections per side.
The housing comes in a green polyamide material to match the aesthetic of phoenixs green.
Features and benefits:
Dimensions:
Need a PCB?
If you're struggling to find a PCB that will go into the plastic enclosure, Phoenix have a pre-made PCB. The PCB is UL recognized and will allow for a perfect install. See stock no. below:
