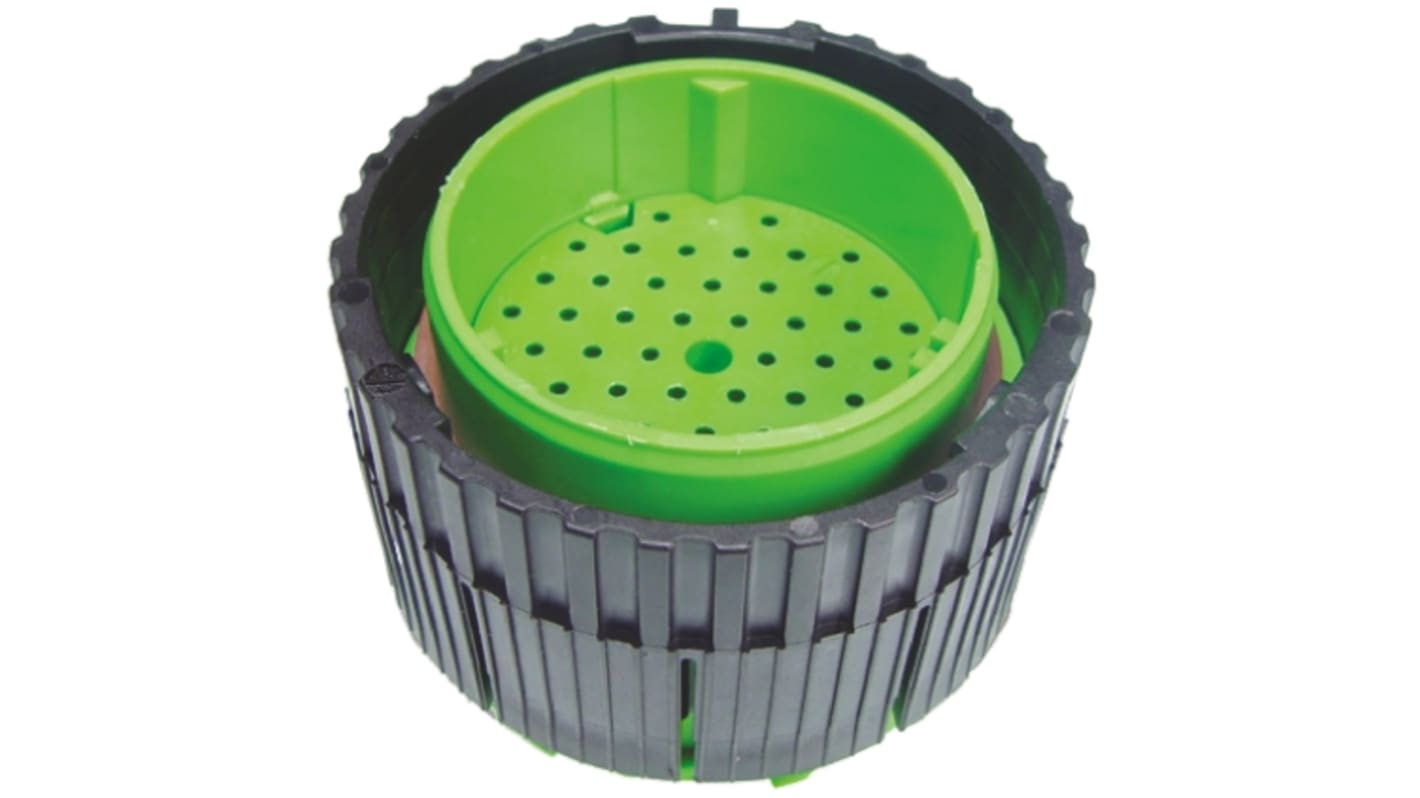

ITT Cannon, APD 51 Pole Din Plug, DIN 72585, 48 V dc IP67, IP69K, Male, Cable Mount
- RS Stock No.:
- 752-5786
- Mfr. Part No.:
- 121583-0187
- Brand:
- ITT Cannon
Subtotal (1 unit)*
£38.89
(exc. VAT)
£46.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 103 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £38.89 |
*price indicative
- RS Stock No.:
- 752-5786
- Mfr. Part No.:
- 121583-0187
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ITT Cannon | |
Number of Contacts | 51 | |
Gender | Male | |
Mounting Type | Cable Mount | |
Body Orientation | Straight | |
Voltage Rating | 48 V dc | |
IP Rating | IP67, IP69K | |
DIN Number | DIN 72585 | |
Series | APD | |
Housing Material | Glass Fibre Reinforced PBT | |
Maximum Operating Temperature | +125°C | |
Contact Plating | Gold, Tin | |
Minimum Operating Temperature | -40°C | |
Contact Material | Copper Alloy | |
Select all | ||
---|---|---|
Brand ITT Cannon | ||
Number of Contacts 51 | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Body Orientation Straight | ||
Voltage Rating 48 V dc | ||
IP Rating IP67, IP69K | ||
DIN Number DIN 72585 | ||
Series APD | ||
Housing Material Glass Fibre Reinforced PBT | ||
Maximum Operating Temperature +125°C | ||
Contact Plating Gold, Tin | ||
Minimum Operating Temperature -40°C | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- DE
ITT Cannon Connectors APD Series Plugs 51 Way
ITT Cannon connectors APD series plug connectors 51 way are a durable cost effective multi-pin connectors with signal contacts, suitable for wire to wire and wire to board connection applications. These APD series 51 way connectors are ideal for harsh environment usage, they are available in a variety of colours to aid visual mating and to prevent mismatching.
Operating voltage 48VDC
Contact resistance 5mΩ max.
Voltage proof 1000VaC (60 Secs)
Insulation resistance 10MΩ min.
Contact resistance 5mΩ max.
Voltage proof 1000VaC (60 Secs)
Insulation resistance 10MΩ min.
Note
Standards
DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6
ITT Cannon APD Series ISO 15170 Connectors
The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.
