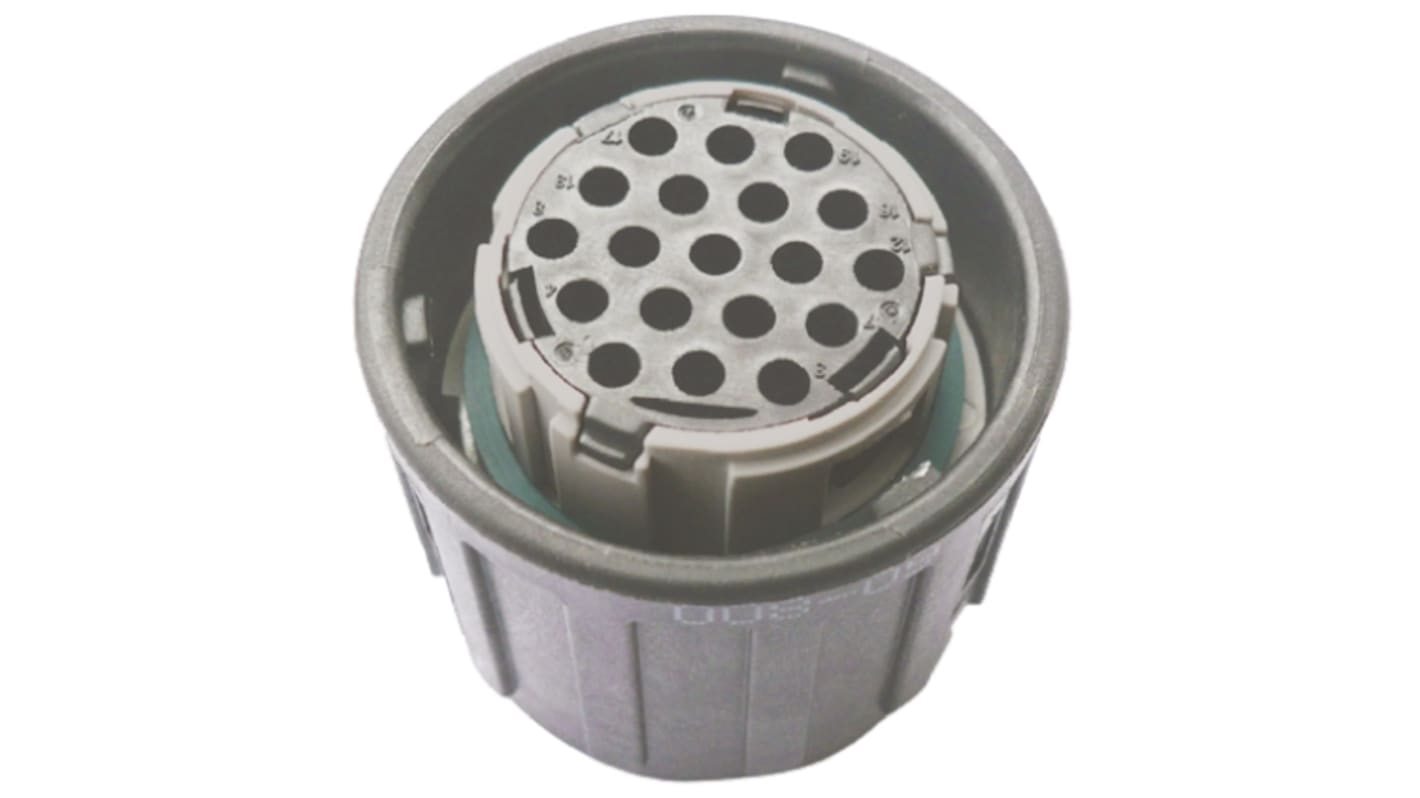

ITT Cannon, APD 19 Pole Din Plug, DIN 72585, 48 V dc IP67, IP69K, Male, Cable Mount

View all DIN Connectors
Bulk discount available

Subtotal (1 unit)*

£22.38

(exc. VAT)

£26.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 88 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£22.38
10 - 49£21.60
50 +£20.99

*price indicative

RS Stock No.:
752-5736
Mfr. Part No.:
121583-0121
Brand:
ITT Cannon
Find similar products by selecting one or more attributes.
Select all

Brand

ITT Cannon

Number of Contacts

19

Gender

Male

Mounting Type

Cable Mount

Body Orientation

Straight

Voltage Rating

48 V dc

IP Rating

IP67, IP69K

DIN Number

DIN 72585

Series

APD

Housing Material

Glass Fibre Reinforced PBT

Contact Material

Copper Alloy

Contact Plating

Gold, Silver, Tin

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
CN

ITT Cannon Connectors APD Series Plug Connectors 19 Way


ITT Cannon connectors APD series plug connectors 19 way are robust harsh environment connectors ideally suited for applications within the automotive industry such as wire to wire chassis connections, tractors, heavy vehicles and also suitable for industrial automation connector applications.

Operating voltage 48VDC
Contact resistance 5mΩ max
Voltage proof 1000 VAC (60 secs)
Insulation resistance 10MΩ min

Note

For socket contacts: 752-5742 , 752-5745 , for seals: 752-5767, 752-5761 , 752-5764 , For blind seal see: 752-5770 , for hand crimp tool: 752-5815 and for release tool: 752-5755

Standards

DIN EN 60529, ISO 15170-2 sec.6.2,6.3,6.4,6.6


ITT Cannon APD Series ISO 15170 Connectors


The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.
