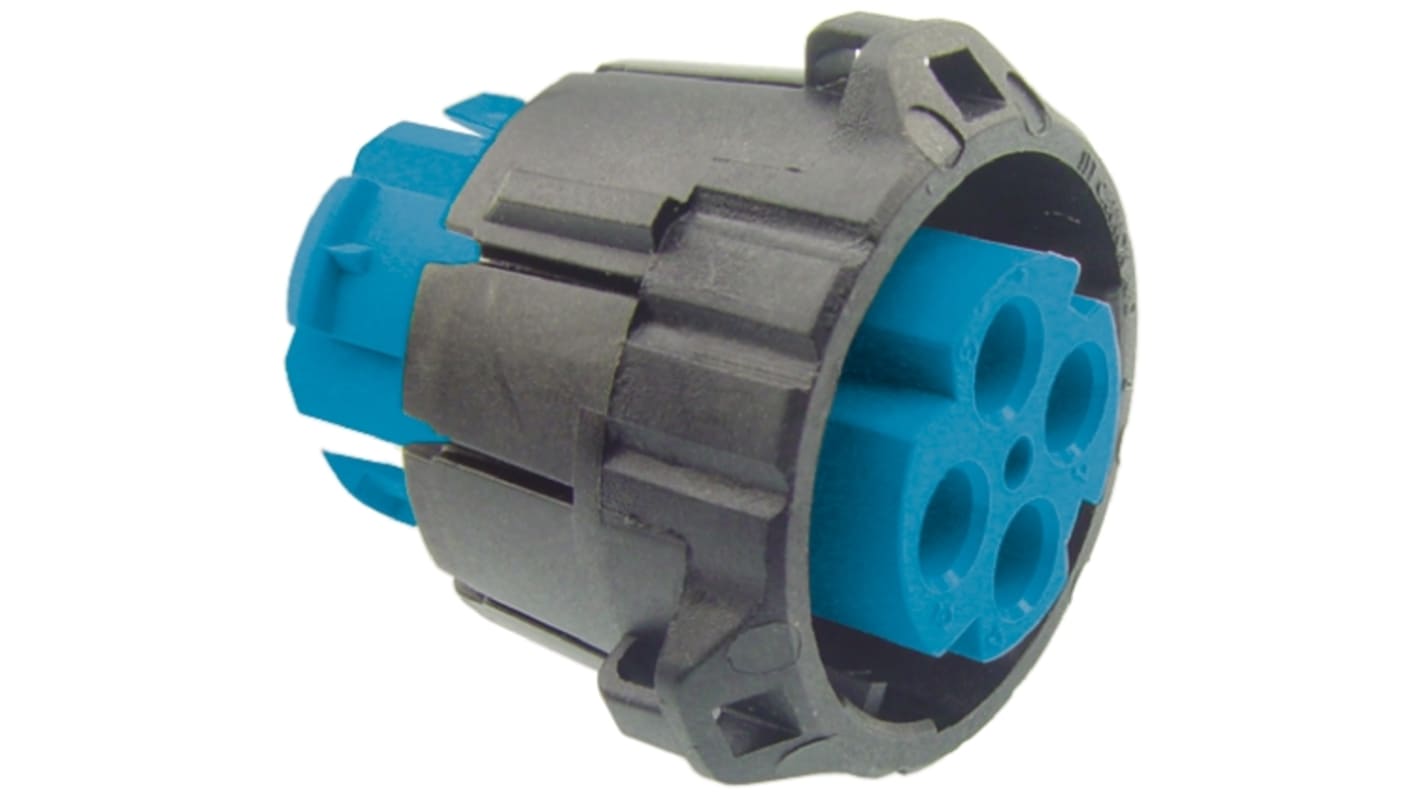

ITT Cannon, APD 4 Pole Din Plug, DIN 72585, 48 V dc IP67, IP69K, Male, Cable Mount

View all DIN Connectors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
752-5626
Mfr. Part No.:
121583-0003
Brand:
ITT Cannon
Find similar products by selecting one or more attributes.
Select all

Brand

ITT Cannon

Number of Contacts

4

Gender

Male

Mounting Type

Cable Mount

Body Orientation

Straight

Voltage Rating

48 V dc

IP Rating

IP67, IP69K

DIN Number

DIN 72585

Series

APD

Housing Material

Glass Fibre Reinforced PBT

Contact Plating

Gold, Tin

Contact Material

Copper Alloy

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
DE

ITT Cannon Connectors APD Series Plug Connectors 4 Way


ITT Cannon connectors APD series plug connectors 4 Way are suitable for connector applications such as sensor and traction/brake control systems, lighting systems and other automotive connector uses. The APD series plugs small form and high power handling make them ideal for many applications. Durable hard wearing connectors derived from ISO 15170.

Note

Socket contacts: 752-5679 , 752-5672 , EndBells link: 752-5688 , 752-5691 , 752-5682 , 752-5694 , wire seals: 752-5698 , 752-5708 , Wire filler: 752-5701, crimp tool: 752-5705


ITT Cannon APD Series ISO 15170 Connectors


The ITT Cannon APD series of connectors are a versatile range of full plastic direct, in-line and bulkhead circular connectors, specifically designed for the transportation, off-road and special vehicle markets. These circular connectors have a strong resistance to engine transmission and brake fluids and the associated environments. The APD series is also an ideal connector for other applications including military or industrial that require harsh environment solutions while insisting on a product that is both small in size and lightweight.The APD series of connectors cover a wide range of 1 and 2-way power solutions up to 51-way interface connectors.
