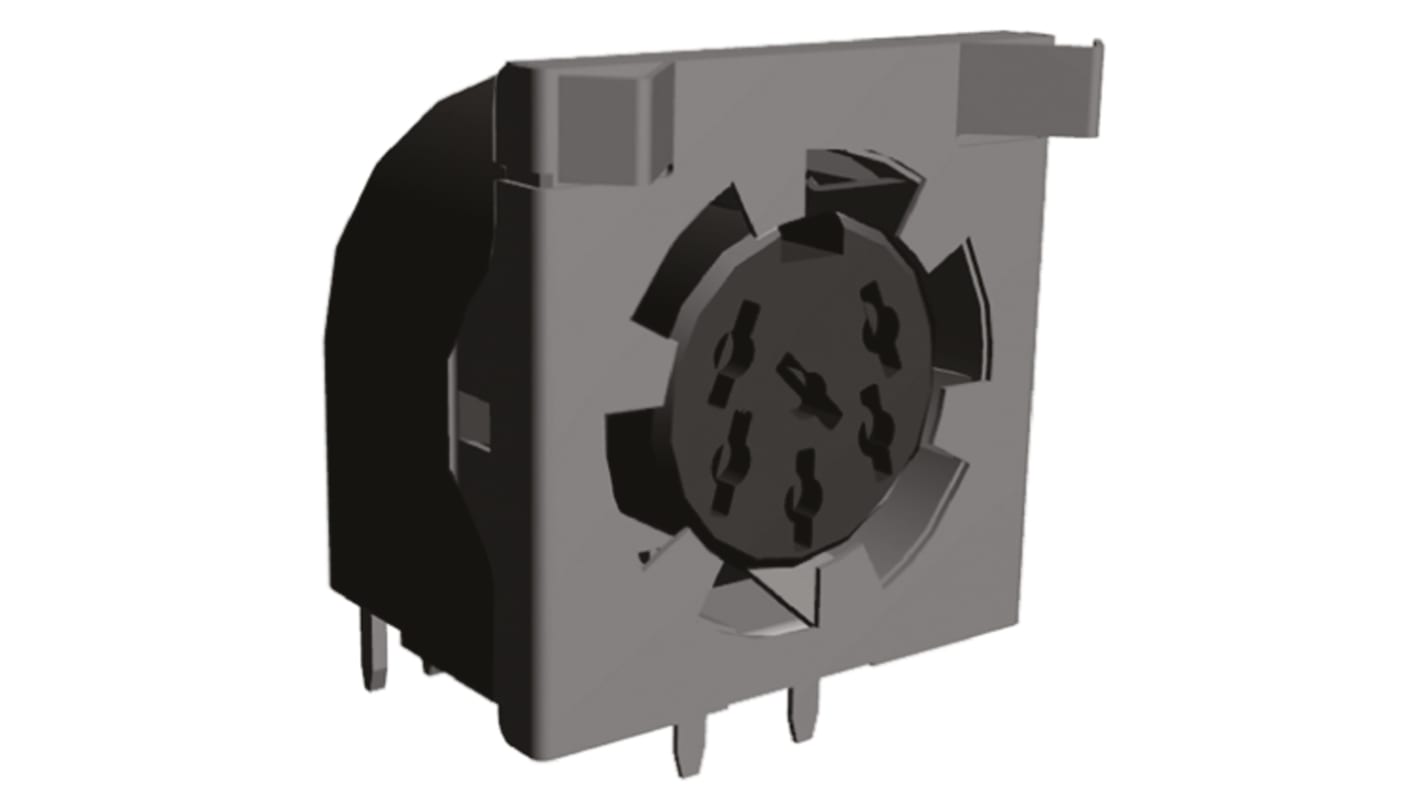

TE Connectivity 6 Pole Right Angle Din Socket, DIN 45322, 7.5A, 250 V ac, Female, Through Hole
- RS Stock No.:
- 745-5084
- Mfr. Part No.:
- 5786676-1
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 745-5084
- Mfr. Part No.:
- 5786676-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 6 | |
| Gender | Female | |
| Mounting Type | Through Hole | |
| Connector Size | Standard | |
| Termination Method | Solder | |
| Body Orientation | Right Angle | |
| Current Rating | 7.5A | |
| Voltage Rating | 250 V ac | |
| Shielded/Unshielded | Shielded | |
| DIN Number | DIN 45322 | |
| Housing Material | PC | |
| Contact Plating | Tin | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 6 | ||
Gender Female | ||
Mounting Type Through Hole | ||
Connector Size Standard | ||
Termination Method Solder | ||
Body Orientation Right Angle | ||
Current Rating 7.5A | ||
Voltage Rating 250 V ac | ||
Shielded/Unshielded Shielded | ||
DIN Number DIN 45322 | ||
Housing Material PC | ||
Contact Plating Tin | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- US
TE Connectivity Shielded Circular DIN Connectors
Shielded circular wire-to-board PCB though hole mounting DIN headers with strain relief and PCB mount alignment. These shielded circular PCB mount receptacle style DIN headers have black nylon housings and a tuning fork style contact design.
