Hirschmann, N6R 7 Pole Angled M26 Connector, DIN EN 175201-804, 10A, 250V ac/dc IP65, Screw Female
- RS Stock No.:
- 281-9746
- Distrelec Article No.:
- 300-73-513
- Mfr. Part No.:
- 932194112
- Brand:
- Hirschmann
Subtotal (1 unit)*
£16.31
(exc. VAT)
£19.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 52 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.31 |
*price indicative
- RS Stock No.:
- 281-9746
- Distrelec Article No.:
- 300-73-513
- Mfr. Part No.:
- 932194112
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann | |
| Number of Contacts | 7 | |
| Product Type | Connector | |
| Current | 10A | |
| Mount Type | Screw | |
| Connector Size | M26 | |
| Connector Gender | Female | |
| Orientation | Angled | |
| Voltage | 250V ac/dc | |
| IP Rating | IP65 | |
| DIN Number | DIN EN 175201-804 | |
| Contact Gender | Female | |
| Standards/Approvals | RoHS | |
| Series | N6R | |
| Housing Material | Polyamide 6-GF30 | |
| Contact Material | Copper Zinc Alloy | |
| Contact Plating | Tin | |
| Select all | ||
|---|---|---|
Brand Hirschmann | ||
Number of Contacts 7 | ||
Product Type Connector | ||
Current 10A | ||
Mount Type Screw | ||
Connector Size M26 | ||
Connector Gender Female | ||
Orientation Angled | ||
Voltage 250V ac/dc | ||
IP Rating IP65 | ||
DIN Number DIN EN 175201-804 | ||
Contact Gender Female | ||
Standards/Approvals RoHS | ||
Series N6R | ||
Housing Material Polyamide 6-GF30 | ||
Contact Material Copper Zinc Alloy | ||
Contact Plating Tin | ||

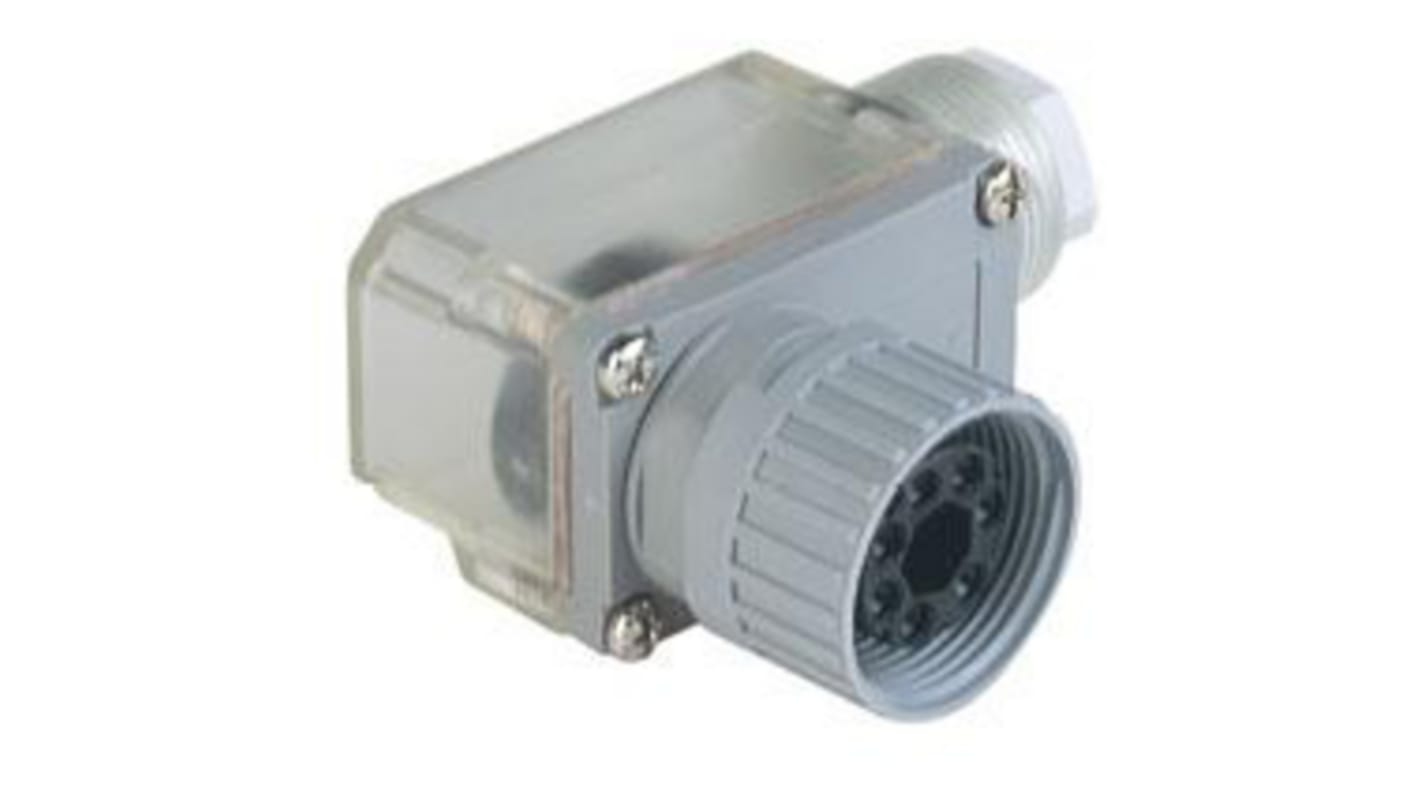

The Hirschmann field attachable NR circular connector is a female, angled, grey housing with a clamping cage.
Contact material CuZn
Rated impulse voltage 4.0 kV
