Amphenol Industrial, T3-4 6 Pole Straight M16 DIN Connector, DIN EN 61076-2-106, 5A, 300V IP40, Screw Coupling, Cable
- RS Stock No.:
- 229-2060
- Mfr. Part No.:
- T3401002U
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£11.29
(exc. VAT)
£13.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £11.29 |
| 10 - 24 | £10.83 |
| 25 + | £10.34 |
*price indicative
- RS Stock No.:
- 229-2060
- Mfr. Part No.:
- T3401002U
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 6 | |
| Product Type | DIN Connector | |
| Current | 5A | |
| Mount Type | Cable | |
| Connector Size | M16 | |
| Connector Gender | Female | |
| Mating Type | Screw Coupling | |
| Orientation | Straight | |
| Voltage | 300V | |
| IP Rating | IP40 | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 100°C | |
| DIN Number | DIN EN 61076-2-106 | |
| Series | T3-4 | |
| Standards/Approvals | No | |
| Pole Format | 6 | |
| Housing Material | Brass | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 6 | ||
Product Type DIN Connector | ||
Current 5A | ||
Mount Type Cable | ||
Connector Size M16 | ||
Connector Gender Female | ||
Mating Type Screw Coupling | ||
Orientation Straight | ||
Voltage 300V | ||
IP Rating IP40 | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 100°C | ||
DIN Number DIN EN 61076-2-106 | ||
Series T3-4 | ||
Standards/Approvals No | ||
Pole Format 6 | ||
Housing Material Brass | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN

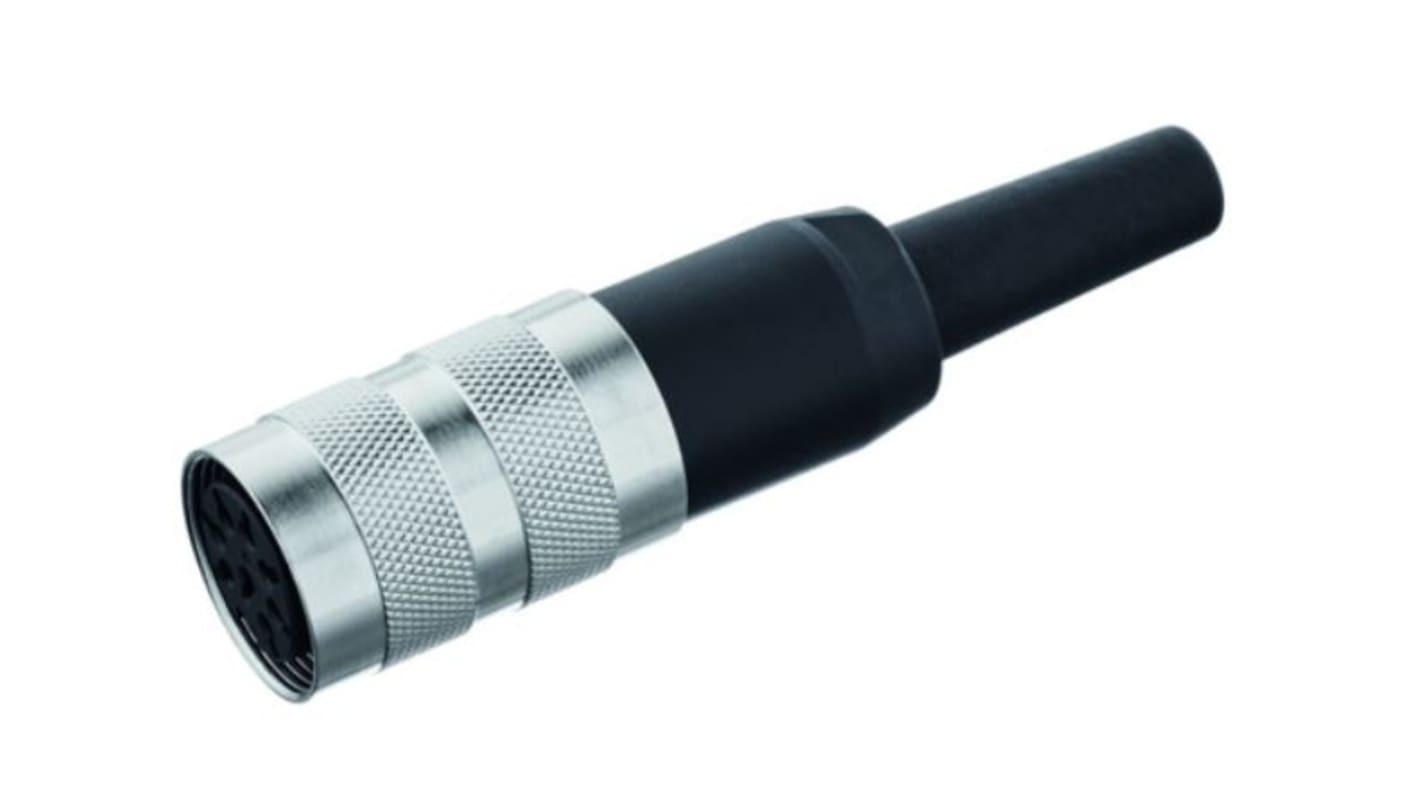

The Amphenol Industrial female cable connector has 6 pole(without PE) and 300 V rated voltage and 5A rated current. It has -40°C to +100°C temperature range and solder pin termination. It has metal screw coupling locking system.
It provides IP 40 protection in mated condition
