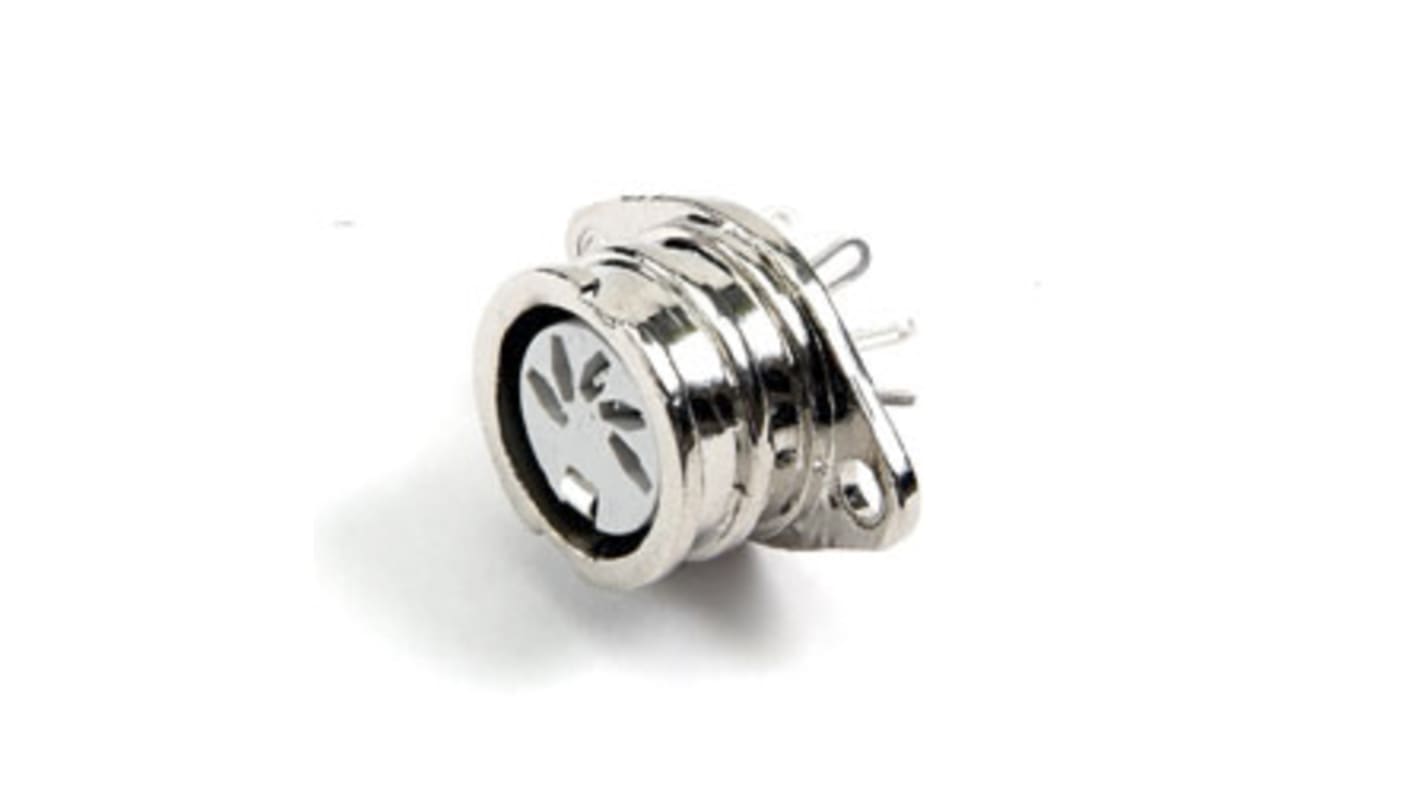

Deltron, 593 6 Pole Straight Standard DIN Socket, DIN 45329, DIN 45322, DIN 41524, DIN 45327, DIN 45326, 2A, 34 V ac/dc,
- RS Stock No.:
- 180-6686
- Mfr. Part No.:
- 593-0600
- Brand:
- Deltron
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 180-6686
- Mfr. Part No.:
- 593-0600
- Brand:
- Deltron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron | |
| Number of Contacts | 6 | |
| Product Type | DIN Socket | |
| Current | 2A | |
| Mount Type | Chassis Mount | |
| Connector Size | Standard | |
| Mating Type | Lock Ring | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Voltage | 34 V ac/dc | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Solder | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 70°C | |
| DIN Number | DIN 45329, DIN 45322, DIN 41524, DIN 45327, DIN 45326 | |
| Standards/Approvals | No | |
| Series | 593 | |
| Pole Format | 6 | |
| Housing Material | Zamak | |
| Contact Plating | Silver | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Deltron | ||
Number of Contacts 6 | ||
Product Type DIN Socket | ||
Current 2A | ||
Mount Type Chassis Mount | ||
Connector Size Standard | ||
Mating Type Lock Ring | ||
Connector Gender Female | ||
Orientation Straight | ||
Voltage 34 V ac/dc | ||
Minimum Operating Temperature -25°C | ||
Termination Type Solder | ||
Contact Gender Female | ||
Maximum Operating Temperature 70°C | ||
DIN Number DIN 45329, DIN 45322, DIN 41524, DIN 45327, DIN 45326 | ||
Standards/Approvals No | ||
Series 593 | ||
Pole Format 6 | ||
Housing Material Zamak | ||
Contact Plating Silver | ||
Contact Material Brass | ||
- COO (Country of Origin):
- GB
A range of professional chassis mounting sockets,designed for panel mounting via two flange fixing screws.These sockets mate with all standard DIN plugs,but are specifically designed for the ring lock plug range (592 SERIES),with a quick and simple quarter turn of the locking ring to secure the plug in the place.Can be colour coded via an interchangeable plastic ring ,available in six colours.
