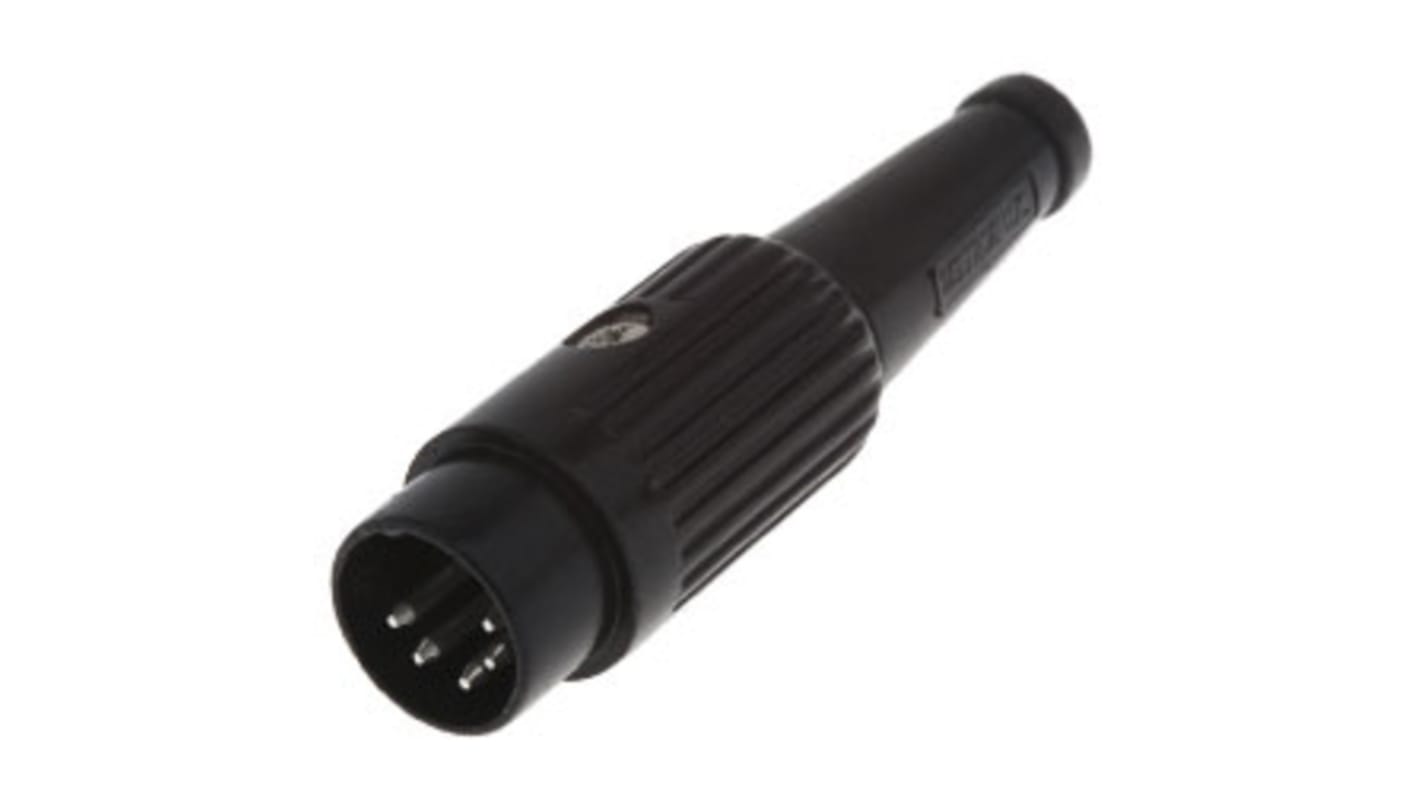

Deltron, 592 6 Pole Straight Standard DIN Plug, DIN 41524, DIN 45327, DIN 45322, DIN 45326, DIN 45329, 2A, 34 V ac/dc,
- RS Stock No.:
- 180-6679
- Mfr. Part No.:
- 592-0601
- Brand:
- Deltron
Bulk discount available
Subtotal (1 unit)*
£6.52
(exc. VAT)
£7.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 47 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.52 |
| 5 - 9 | £6.02 |
| 10 - 24 | £5.62 |
| 25 - 49 | £5.29 |
| 50 + | £4.94 |
*price indicative
- RS Stock No.:
- 180-6679
- Mfr. Part No.:
- 592-0601
- Brand:
- Deltron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron | |
| Number of Contacts | 6 | |
| Product Type | DIN Plug | |
| Mount Type | Cable | |
| Current | 2A | |
| Connector Size | Standard | |
| Mating Type | Locking Ring | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Voltage | 34 V ac/dc | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 70°C | |
| DIN Number | DIN 41524, DIN 45327, DIN 45322, DIN 45326, DIN 45329 | |
| Contact Gender | Male | |
| Series | 592 | |
| Standards/Approvals | No | |
| Housing Material | Zinc Alloy | |
| Pole Format | 6 | |
| Contact Plating | Silver | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Deltron | ||
Number of Contacts 6 | ||
Product Type DIN Plug | ||
Mount Type Cable | ||
Current 2A | ||
Connector Size Standard | ||
Mating Type Locking Ring | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Orientation Straight | ||
Voltage 34 V ac/dc | ||
Minimum Operating Temperature -25°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 70°C | ||
DIN Number DIN 41524, DIN 45327, DIN 45322, DIN 45326, DIN 45329 | ||
Contact Gender Male | ||
Series 592 | ||
Standards/Approvals No | ||
Housing Material Zinc Alloy | ||
Pole Format 6 | ||
Contact Plating Silver | ||
Contact Material Brass | ||
- COO (Country of Origin):
- GB
A FULLY SCREENED ROBUST RANGE OF DIN CONNECTORS FOR USE IN INSTRUMENTATION AND AUDIO APPLICATIONS.AVAILABLE IN BRIGHT NICKEL FINISH WITH INTERCHANGEABLE BLACK PLASTIC LOCKING RINGS. A SIMPLE HALF TURN OF THE RING SECURES THE PLUG ONTO THE MATING PANEL SOCKET (SOLD SEPERATELY)CONSTRUCTION INCORPORATES CABLE GRIP AND STRAIN RELIEF
