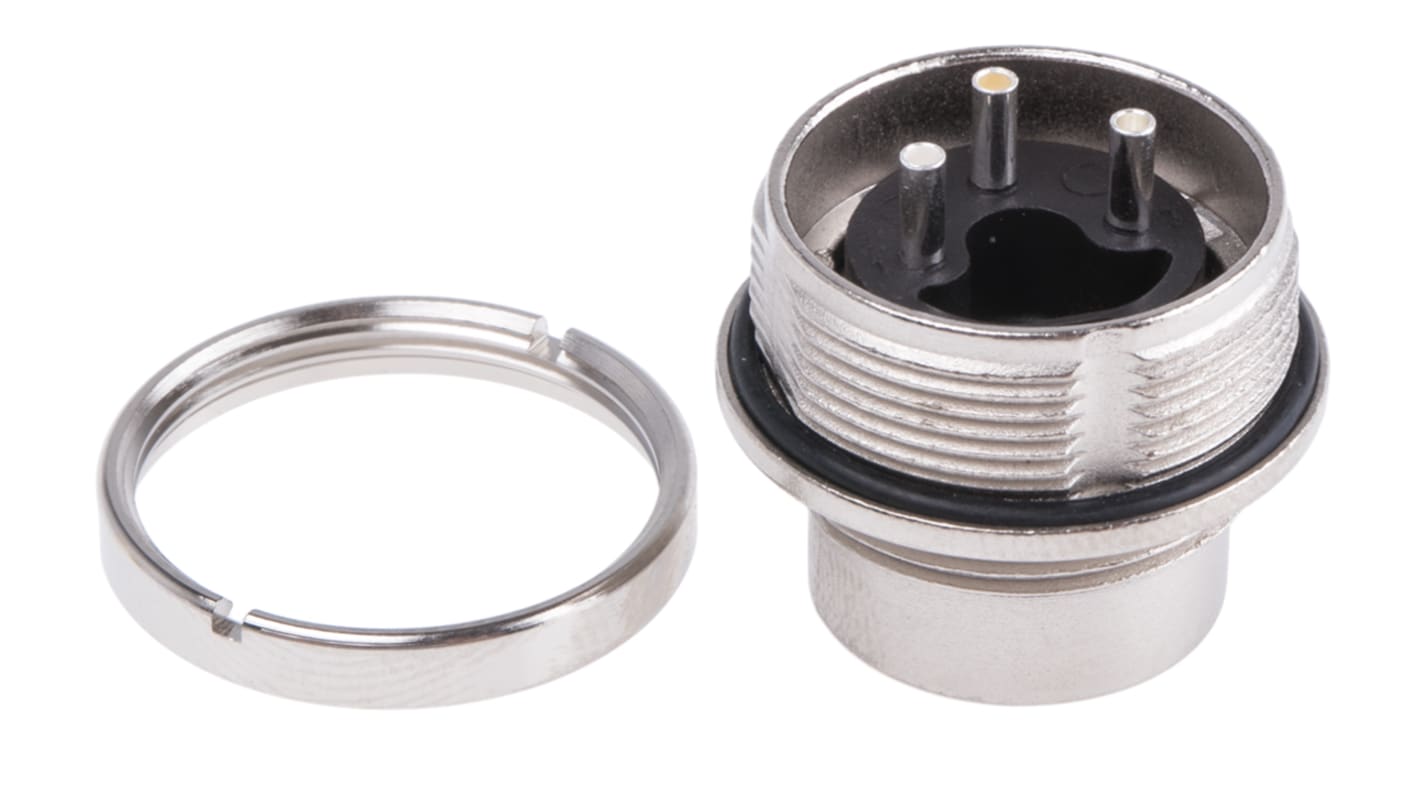

Amphenol C 091 D Series, 3 Pole Din Plug Plug, 5A, 300 V ac/dc IP67
- RS Stock No.:
- 157-2685
- Mfr. Part No.:
- C091-31W003-1002
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£11.36
(exc. VAT)
£13.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 103 unit(s) ready to ship
- Plus 44 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £11.36 |
| 5 - 24 | £10.67 |
| 25 - 49 | £9.95 |
| 50 + | £9.25 |
*price indicative
- RS Stock No.:
- 157-2685
- Mfr. Part No.:
- C091-31W003-1002
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 3 | |
| Gender | Male | |
| Mounting Type | Panel Mount | |
| Termination Method | Solder | |
| Body Orientation | Straight | |
| Current Rating | 5A | |
| Voltage Rating | 300 V ac/dc | |
| IP Rating | IP67 | |
| Series | C 091 D | |
| Minimum Operating Temperature | -40°C | |
| Contact Plating | Silver | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 3 | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Termination Method Solder | ||
Body Orientation Straight | ||
Current Rating 5A | ||
Voltage Rating 300 V ac/dc | ||
IP Rating IP67 | ||
Series C 091 D | ||
Minimum Operating Temperature -40°C | ||
Contact Plating Silver | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- CN
Panel Plug
Note
5-way and 7-way are available in two configurations.
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
