Amphenol Industrial, C 091 D 6 Pole Straight M16 DIN Socket, DIN 41322, 5A, 300V ac/dc IP67, Screw-On, Cable Female
- RS Stock No.:
- 157-2641
- Distrelec Article No.:
- 144-41-762
- Mfr. Part No.:
- C091-31D006-1002
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£23.26
(exc. VAT)
£27.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 73 unit(s) ready to ship
- Plus 49 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £23.26 |
| 5 - 24 | £22.30 |
| 25 - 49 | £21.66 |
| 50 + | £21.02 |
*price indicative
- RS Stock No.:
- 157-2641
- Distrelec Article No.:
- 144-41-762
- Mfr. Part No.:
- C091-31D006-1002
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Number of Contacts | 6 | |
| Product Type | DIN Socket | |
| Mount Type | Cable | |
| Current | 5A | |
| Connector Size | M16 | |
| Mating Type | Screw-On | |
| Connector Gender | Female | |
| Orientation | Straight | |
| Voltage | 300V ac/dc | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| DIN Number | DIN 41322 | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Series | C 091 D | |
| Pole Format | 6 | |
| Housing Material | Die Cast Nickel | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Number of Contacts 6 | ||
Product Type DIN Socket | ||
Mount Type Cable | ||
Current 5A | ||
Connector Size M16 | ||
Mating Type Screw-On | ||
Connector Gender Female | ||
Orientation Straight | ||
Voltage 300V ac/dc | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
DIN Number DIN 41322 | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Series C 091 D | ||
Pole Format 6 | ||
Housing Material Die Cast Nickel | ||
Contact Plating Silver | ||

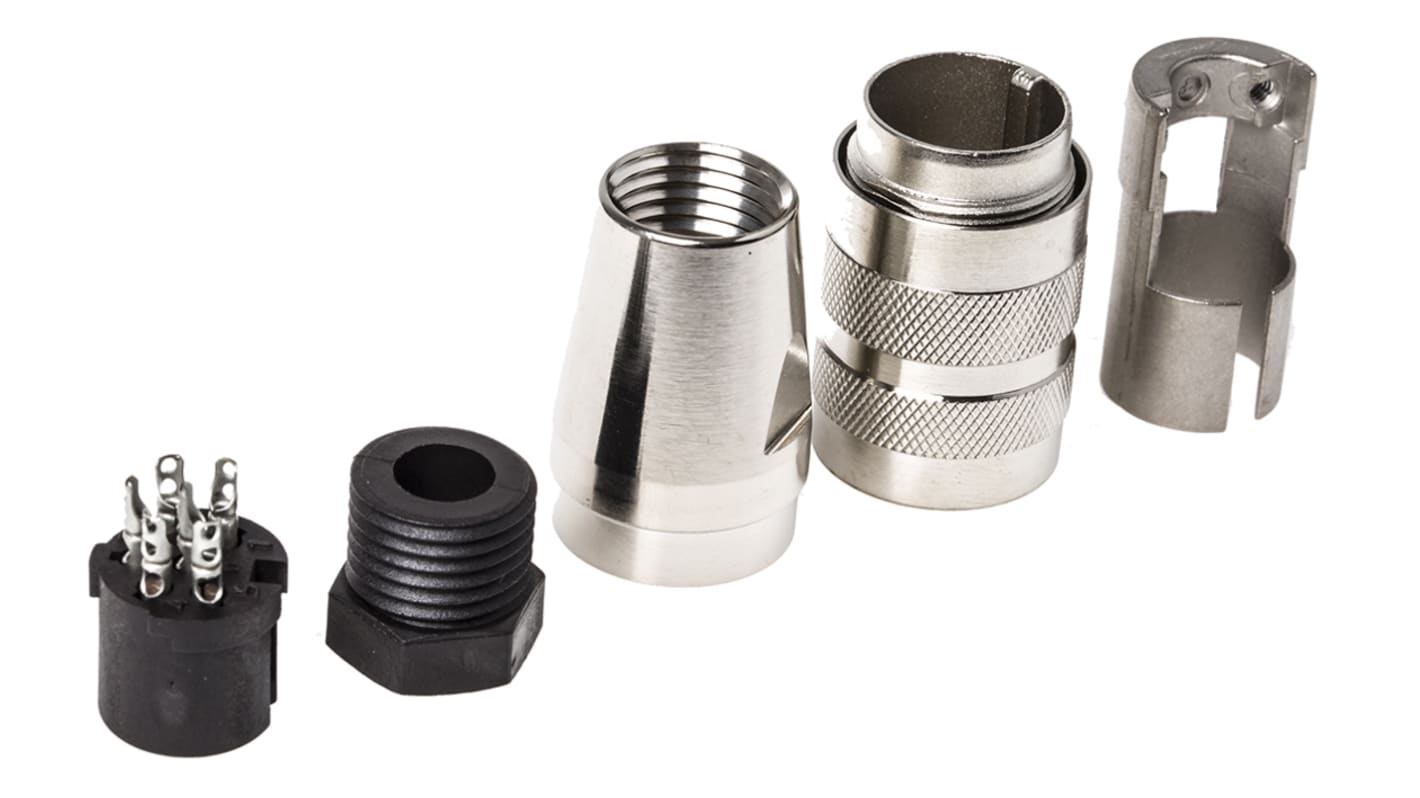

Straight Cable Socket
From Amphenol, this C091 Series cable mount connector features a screw-locking thread for robust mating attenuation. The connector, when mated, boasts a high degree of enviromental protection.
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
Note
5-way and 7-way are available in two configurations.
