Amphenol Industrial, C 091 D 4 Pole M16 Din Socket, 5A, 300 V ac/dc IP67, Screw On, Female, Cable Mount
- RS Stock No.:
- 157-2613
- Mfr. Part No.:
- C09131D0041002
- Brand:
- Amphenol Industrial
217 In stock - FREE next working day delivery available
41 available from Europe for delivery within 2 working day(s).
Price Each
£12.41
(exc. VAT)
£14.89
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £12.41 |
5 - 24 | £12.03 |
25 - 49 | £11.67 |
50 + | £11.37 |
- RS Stock No.:
- 157-2613
- Mfr. Part No.:
- C09131D0041002
- Brand:
- Amphenol Industrial
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

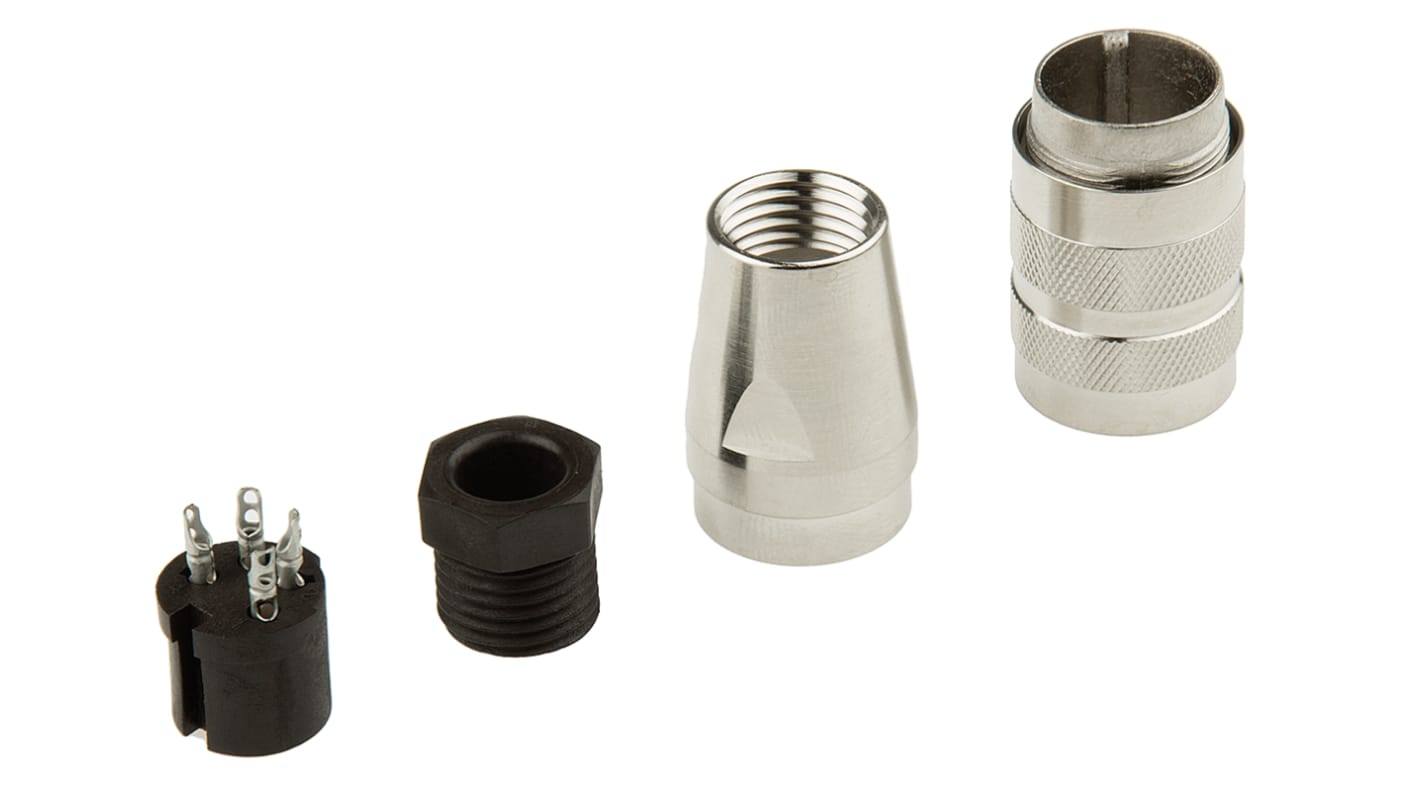

Straight Cable Socket
From Amphenol, this C091 Series cable mount connector features a screw-locking thread for robust mating attenuation. The connector, when mated, boasts a high degree of enviromental protection.
Note
5-way and 7-way are available in two configurations.
![](https://media.rs-online.com/t_line/L157245-01.gif)
![](https://media.rs-online.com/t_line/L1572607-25.gif)
![](https://media.rs-online.com/t_line/LD157245-01.gif)
![](https://media.rs-online.com/t_line/LD157245-02.jpg)
![](https://media.rs-online.com/t_line/LE157245-11.jpg)
![](https://media.rs-online.com/t_line/LI157245-01.gif)
C091D - Metal
Amphenol C091D robust circular DIN connectors manufactured to the highest standard in brass and die-cast aluminium, nickel-plated to suit the most demanding industrial applications. Ideal for medical, robotic, automotive, instrumentation, CCTV and computer interface applications.
Screw locking
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
IP67 (in accordance with DIN 40050)
Silver/gold contact plating
Internal strain relief
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Gender | Female |
Mounting Type | Cable Mount |
Connector Size | M16 |
Mating Type | Screw On |
Termination Method | Solder |
Body Orientation | Straight |
Current Rating | 5A |
Voltage Rating | 300 V ac/dc |
IP Rating | IP67 |
Series | C 091 D |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +100°C |
Contact Plating | Silver |
