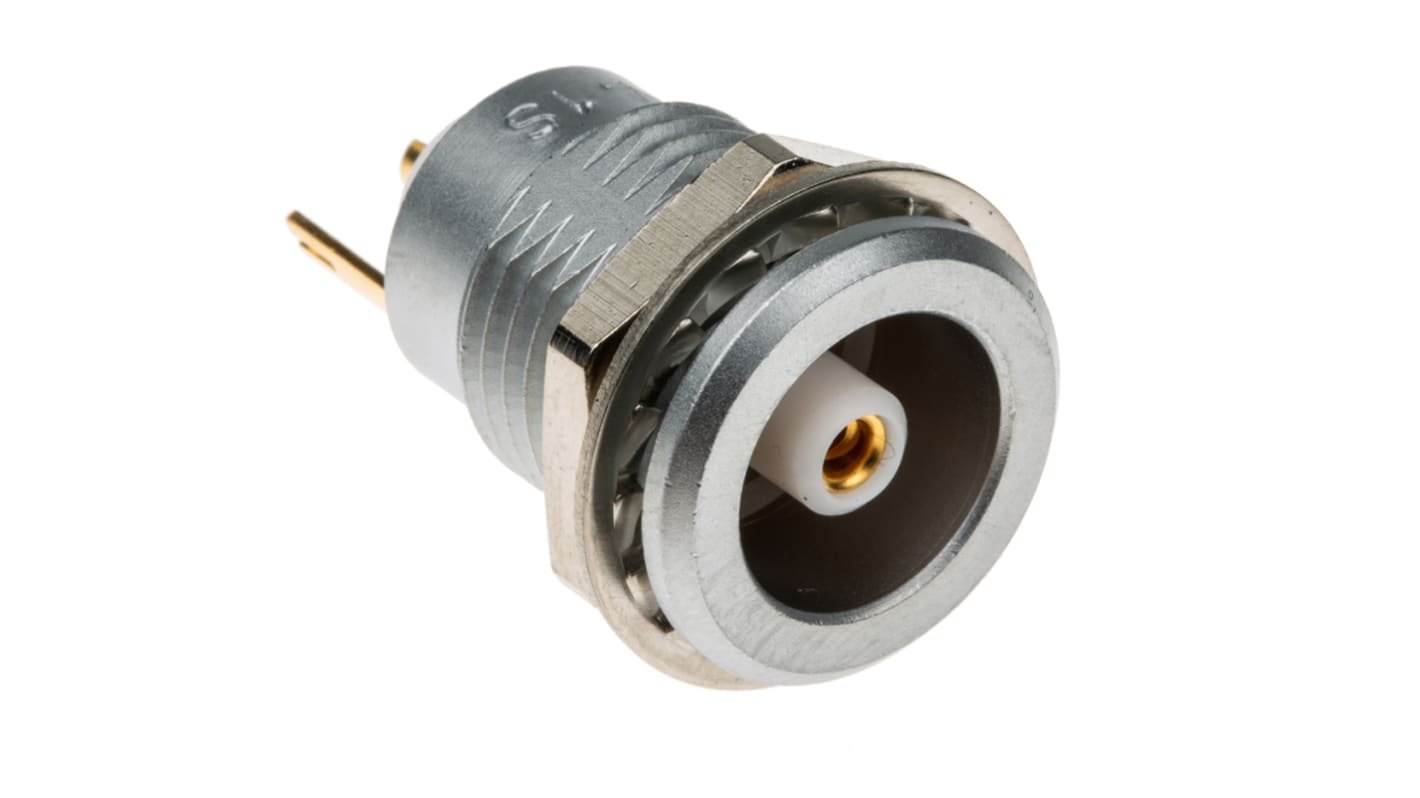

LEMO, 1S 1 Pole Straight DIN Socket, 12A, 4200V IP50, Panel Mount Female
- RS Stock No.:
- 124-3680
- Distrelec Article No.:
- 304-21-798
- Mfr. Part No.:
- ERN.1S.250.CTL
- Brand:
- LEMO
Bulk discount available
Subtotal (1 unit)*
£26.75
(exc. VAT)
£32.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 100 unit(s) shipping from 27 May 2026
- Plus 100 unit(s) shipping from 22 July 2026
- Plus 100 unit(s) shipping from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £26.75 |
| 5 - 24 | £24.62 |
| 25 - 49 | £22.74 |
| 50 + | £20.08 |
*price indicative
- RS Stock No.:
- 124-3680
- Distrelec Article No.:
- 304-21-798
- Mfr. Part No.:
- ERN.1S.250.CTL
- Brand:
- LEMO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | LEMO | |
| Product Type | DIN Socket | |
| Number of Contacts | 1 | |
| Current | 12A | |
| Mount Type | Panel Mount | |
| Connector Gender | Female | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Voltage | 4200V | |
| IP Rating | IP50 | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 250°C | |
| Standards/Approvals | No | |
| Series | 1S | |
| Housing Material | Brass | |
| Contact Plating | Nickel | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand LEMO | ||
Product Type DIN Socket | ||
Number of Contacts 1 | ||
Current 12A | ||
Mount Type Panel Mount | ||
Connector Gender Female | ||
Shield Type Shielded | ||
Orientation Straight | ||
Voltage 4200V | ||
IP Rating IP50 | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Maximum Operating Temperature 250°C | ||
Standards/Approvals No | ||
Series 1S | ||
Housing Material Brass | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
Straight Panel Sockets – Series 1S
Straight sockets for fixing on panels with screws and earth tags
Equipped with a female contact for soldering
Series 1S and 00
High quality, precision engineered connectors, employing a simple push-pull latching mechanism, high durability strain relief collets and in-built keying to prevent mis-mating. All metal body construction ensures EMC shielding, while push-pull design provides space saving and eliminates risk of unintentional disconnection of cable through shock, vibration or cable pull. This range offers three sizes of fully populated cable mount plugs and panel/PCB mount sockets, with optional collets and strain reliefs, to cover a wide range of cable sizes. They are ideal for instrumentation, medical and nuclear applications, plus many other special industry requirements.
Self-latching system permits quick mating/release
Easy cable assembly
Mechanical endurance 10000 mating cycles
Aesthetic appearance enhances customers product
