LEMO Circular Connector, 2 Contacts, Panel Mount, Socket, Female, IP50, 1S Series

View this category
Bulk discount available

Subtotal (1 unit)*

£26.21

(exc. VAT)

£31.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship
  • Plus 19 unit(s) ready to ship from another location
  • Plus 50 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£26.21
5 - 9£25.42
10 - 19£24.64
20 - 49£23.84
50 +£22.54

*price indicative

RS Stock No.:
173-2253
Mfr. Part No.:
ERN.1S.302.CLL
Brand:
LEMO
Find similar products by selecting one or more attributes.
Select all

Brand

LEMO

Number of Contacts

2

Mounting Type

Panel Mount

Plug/Socket

Socket

Contact Gender

Female

Termination Method

Solder

IP Rating

IP50

Current Rating

15.0A

Series

1S

Body Orientation

Straight

Shell Size

1

Housing Material

Brass

Maximum Operating Temperature

+250°C

Minimum Operating Temperature

-55°C

COO (Country of Origin):
CH

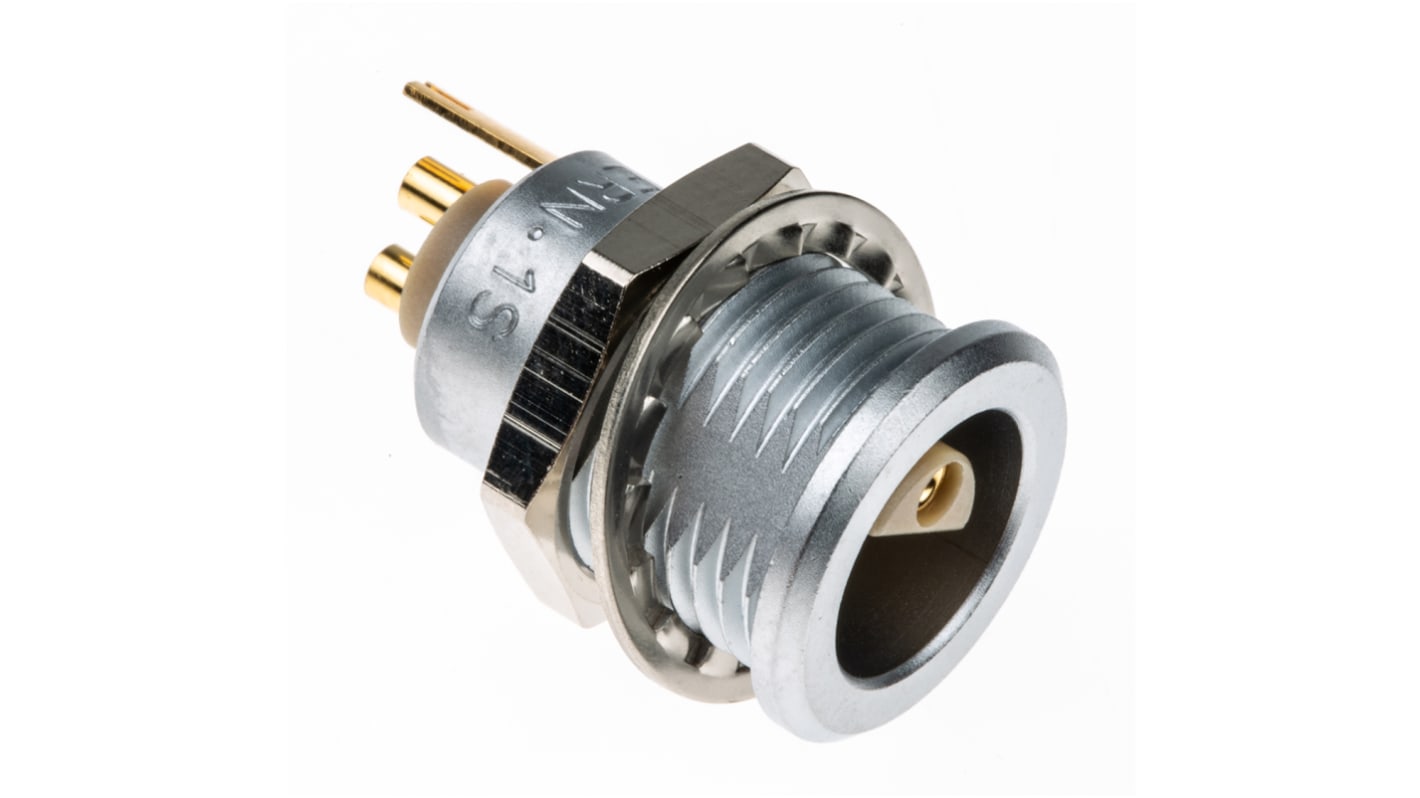

Lemo Circular Connector


The Lemo 1S series 2-contacts female circular connector has an earthing tag socket connection. This panel mount connector has a current rating is up to 15A. This connector features a highly precise push-pull latching system with high-density panel spacing and quick mating or unmating. It has a rugged and robust design for every environmental and mechanical requirement in indoor and outdoor applications. It is made from chrome-plated brass with hermaphroditic keying (half-moon" insert), collet nut and nickel-plated brass latch sleeve.
S series cylindrical connectors
Series of metal multi-pin connectors with very compact dimensions.
Fitted with a push-pull locking system, for great speed of use. Absolute protection against vibration, shocks and accidental pulling on the cable.
Available in 3 different sizes (0S, 1S and 2S) with different contact layouts.
The correct keyway is ensured by the insulating unit (both male and female).
PCB installation and drilling plan supplied with every product.

Features and Benefits


Straight body orientation
Solder termination
Cable acceptance ranges between 1.30mm and 8.70mm
EMC shielding of 360°
Endurance is 5000 mating cycles
High vibration and shock resistance
Operation temperature ranges between -55°C and 250°C
Shell size is 1mm
Waterproof and UV resistance capabilities

Applications


Audio/video application
Medical devices
Research
Test and measurement instrumentation

Certifications


IP50 rated
UL approved
