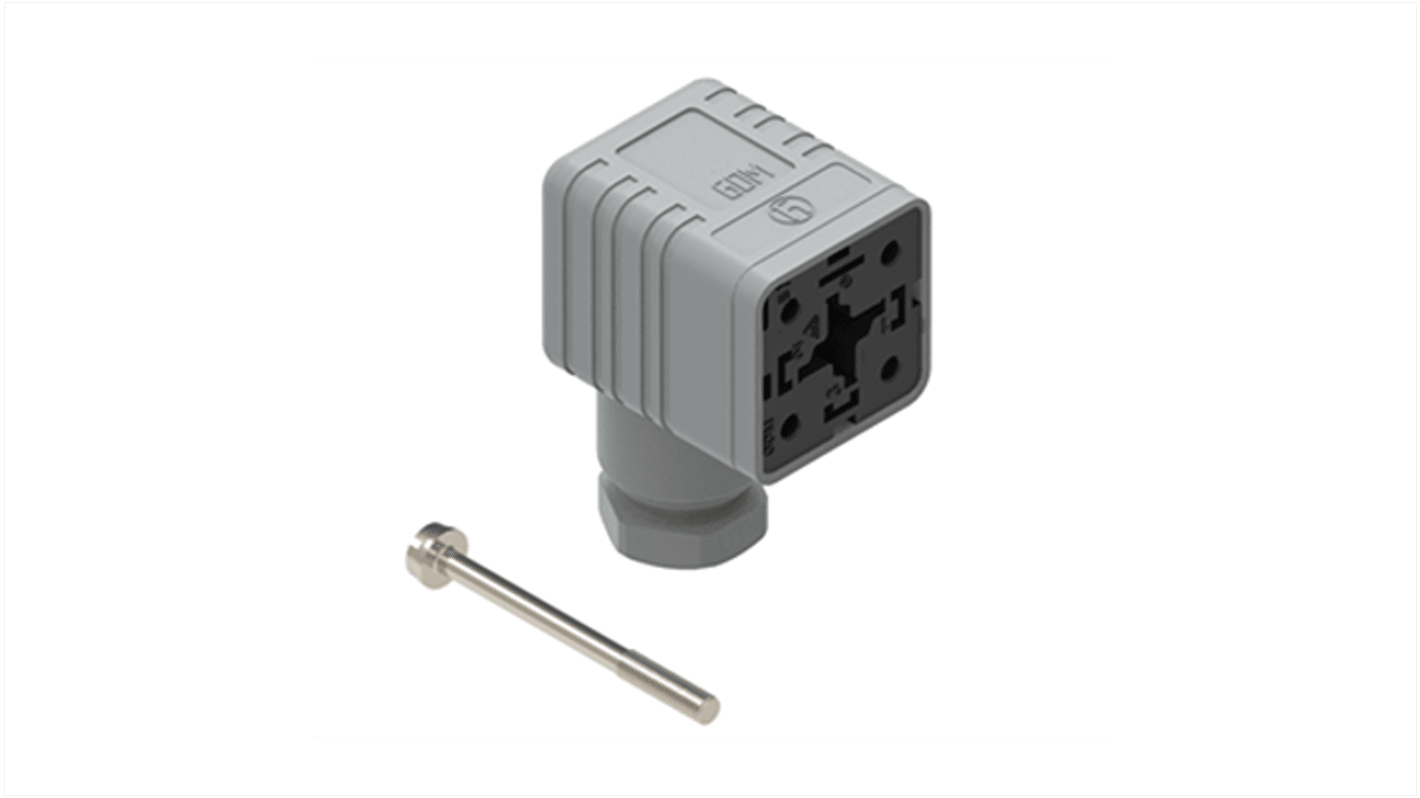

Hirschmann GDM 2+PE DIN 43650, Female DIN 43650 Connector, 250 V Voltage
- RS Stock No.:
- 286-4099
- Mfr. Part No.:
- 934888117 GDM2169-A0U-10F
- Brand:
- Hirschmann
Subtotal (1 box of 200 units)*
£356.00
(exc. VAT)
£428.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
200 + | £1.78 | £356.00 |
*price indicative
- RS Stock No.:
- 286-4099
- Mfr. Part No.:
- 934888117 GDM2169-A0U-10F
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Hirschmann | |
Pole Format | 2+PE | |
DIN 43650 Type | DIN 43650 | |
Voltage Rating | 250 V | |
Gender | Female | |
Indicator Light | No | |
Series | GDM | |
Select all | ||
---|---|---|
Brand Hirschmann | ||
Pole Format 2+PE | ||
DIN 43650 Type DIN 43650 | ||
Voltage Rating 250 V | ||
Gender Female | ||
Indicator Light No | ||
Series GDM | ||
- COO (Country of Origin):
- DE
The Hirschmann GDM Legacy-175301-803 connector adheres to DIN 43650 standards, featuring a Form A configuration, 18mm size, with 2 poles and a ground connection (Protective Earth), PG9 cable entry, grey housing, devoid of circuitry, rated for 250V and 16A, utilizing a steel centre screw, and packaged in bulk. Designed for industrial use, it's suited for applications requiring reliable electrical connections with power and ground functionality, such as solenoid valves, offering durability and ease of installation.
IP65 Protection IP rating
DIN EN 175301-803-A, ISO 4400 standards approved
CuZn contact base material
Cu/Sn contact plating
Flammability class (contact bearer) UL 94 HB
PA GF housing material
DIN EN 175301-803-A, ISO 4400 standards approved
CuZn contact base material
Cu/Sn contact plating
Flammability class (contact bearer) UL 94 HB
PA GF housing material
