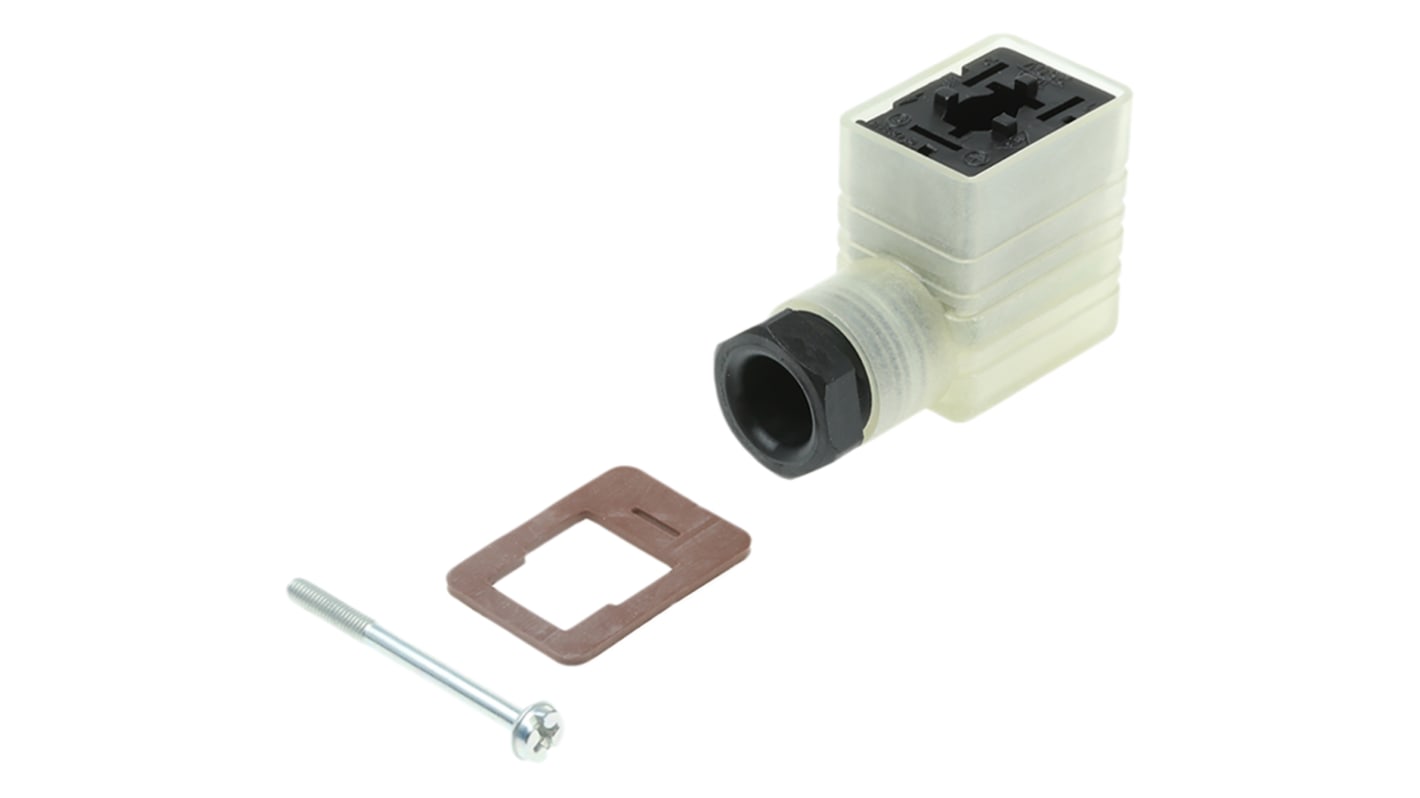

Hirschmann GML 2P+E DIN 43650 B, Female Solenoid Valve Connector with Indicator Light, 250 V ac/dc Voltage
- RS Stock No.:
- 161-5831
- Mfr. Part No.:
- 935980207 RS GML 209 NJ LED 230 black
- Brand:
- Hirschmann
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 161-5831
- Mfr. Part No.:
- 935980207 RS GML 209 NJ LED 230 black
- Brand:
- Hirschmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirschmann | |
| Pole Format | 2P+E | |
| DIN 43650 Type | DIN 43650 B | |
| Voltage Rating | 250 V ac/dc | |
| Gender | Female | |
| Indicator Light | Yes | |
| Mounting Type | Central Screw | |
| Cable Gland Size | PG9 | |
| Colour | Black | |
| Current Rating | 8A | |
| Protective Circuit | Yes | |
| Series | GML | |
| IP Rating | IP65 | |
| Termination Method | Screw Down | |
| Cable Diameter | 4.5 → 7mm | |
Select all | ||
|---|---|---|
Brand Hirschmann | ||
Pole Format 2P+E | ||
DIN 43650 Type DIN 43650 B | ||
Voltage Rating 250 V ac/dc | ||
Gender Female | ||
Indicator Light Yes | ||
Mounting Type Central Screw | ||
Cable Gland Size PG9 | ||
Colour Black | ||
Current Rating 8A | ||
Protective Circuit Yes | ||
Series GML | ||
IP Rating IP65 | ||
Termination Method Screw Down | ||
Cable Diameter 4.5 → 7mm | ||
GML Series
Industry standard
Electronic insert
Electronic insert
Note
These connectors are only suitable for power coupling to a fixing point or item of plant, or for internal wiring of equipment.
Approvals
UL recognised component, CSA certified, VDE
Industrial Standard Hirschmann
A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.
2P+E
Ambient temperature: -40°C to +90°C
Ambient temperature: -40°C to +90°C
