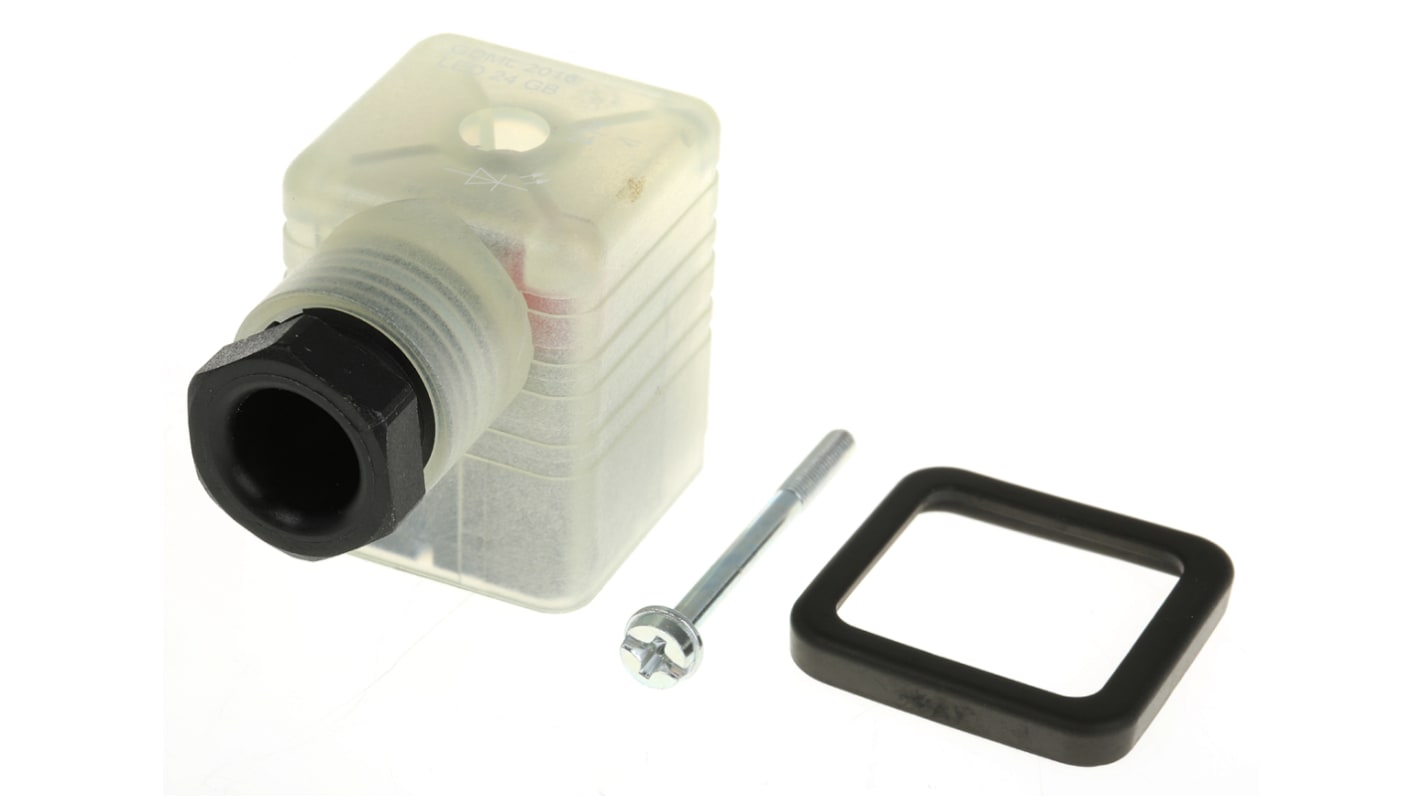

Looking for a reliable way to mount a solenoid valve in your pneumatic system? This solenoid valve connector from Belden's Hirschmann range will do the job. It has a 2P+E pole format, which means it features two connecting poles and an earth pole that's designed to deflect irregular current to the ground, protecting personnel and the machine from electric hazards. The unit's tin contact surface is corrosion-resistant, while its rugged polyamide housing withstands the impacts you'd expect in harsh industrial environments.

• Operating temperature range of -40°C to +90°C to withstand demanding operations
• Integrated LED indicator for easy status monitoring

• Water treatment facilities
• Food and beverage production
• Packaging industry
• Chemical plants

This unit can accommodate cables with diameters ranging from 4.5 to 10mm for versatile assembly.

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10
